b)

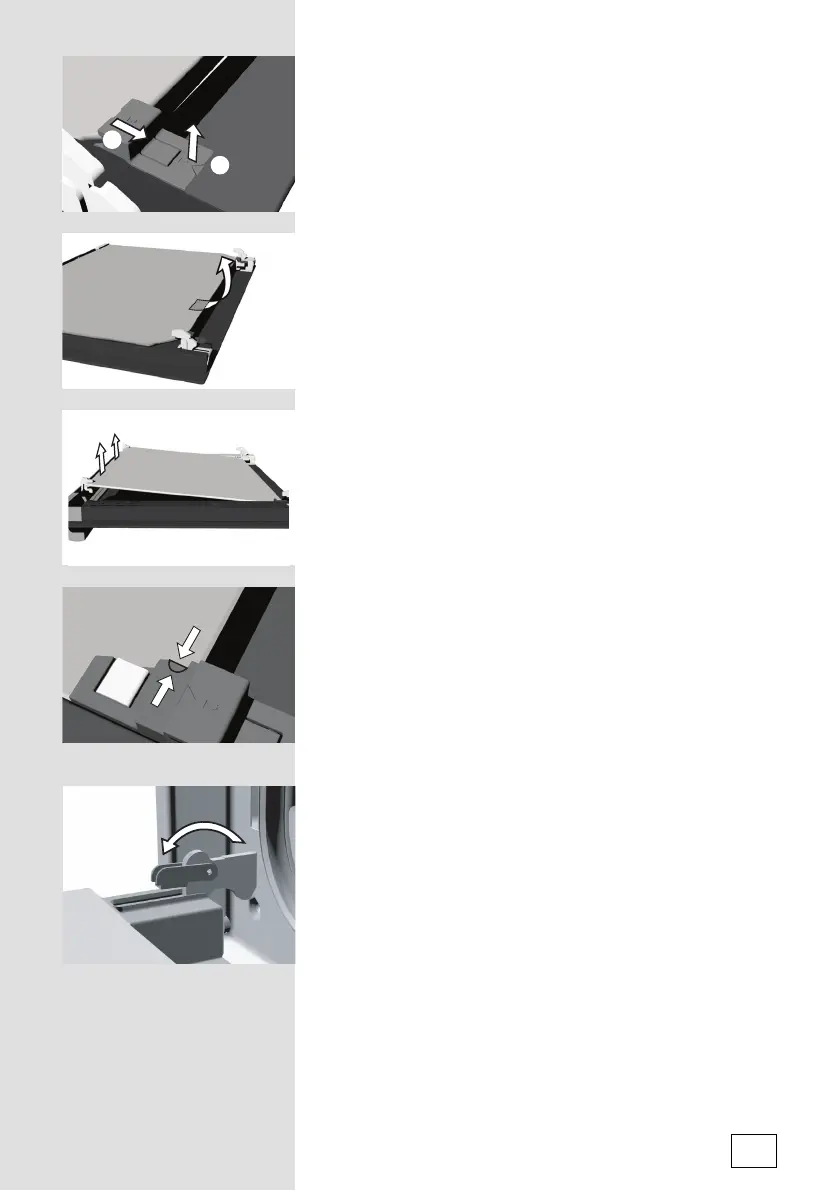

• Slightly lift the supports on the left and right side of the door
(marking 1 on the support) and pull them away from the glass
(marking 2 on the support) (see Figure 1).
• Hold the door glass by the lower edge, slightly lift it so that it is
no longer attached to the support, and remove it (Figure 2).
• To remove the third inside glass (only with some models), lift
and remove it. Also remove the rubbers on the glass (Figure
3).
• To replace the door, observe the reverse order.
Note: To replace the glass, make sure the markings
(crescent) on the door and the glass are aligned (Figure
4).
Removing and inserting the oven door with a single-axis
hinge
Completely open the oven door and rotate the attachment clips
completely backwards (Figure 1).
• Slowly close the door until the clips are pressed against the
supports / seats. At approximately 15° (relative to the closed
door position), pull the door slightly upward and pull them out
of the both hinge supports on the appliances (Figure 2).
• Replace the door in the reverse order. Insert the door under
an angle of 15° into the hinge supports at the front side of the
appliance and push them downwards and to the front until they
slide into their supports / seats.
• Then, completely open the door and rotate the attachment
clips back to their initial position. Slowly close the door and
