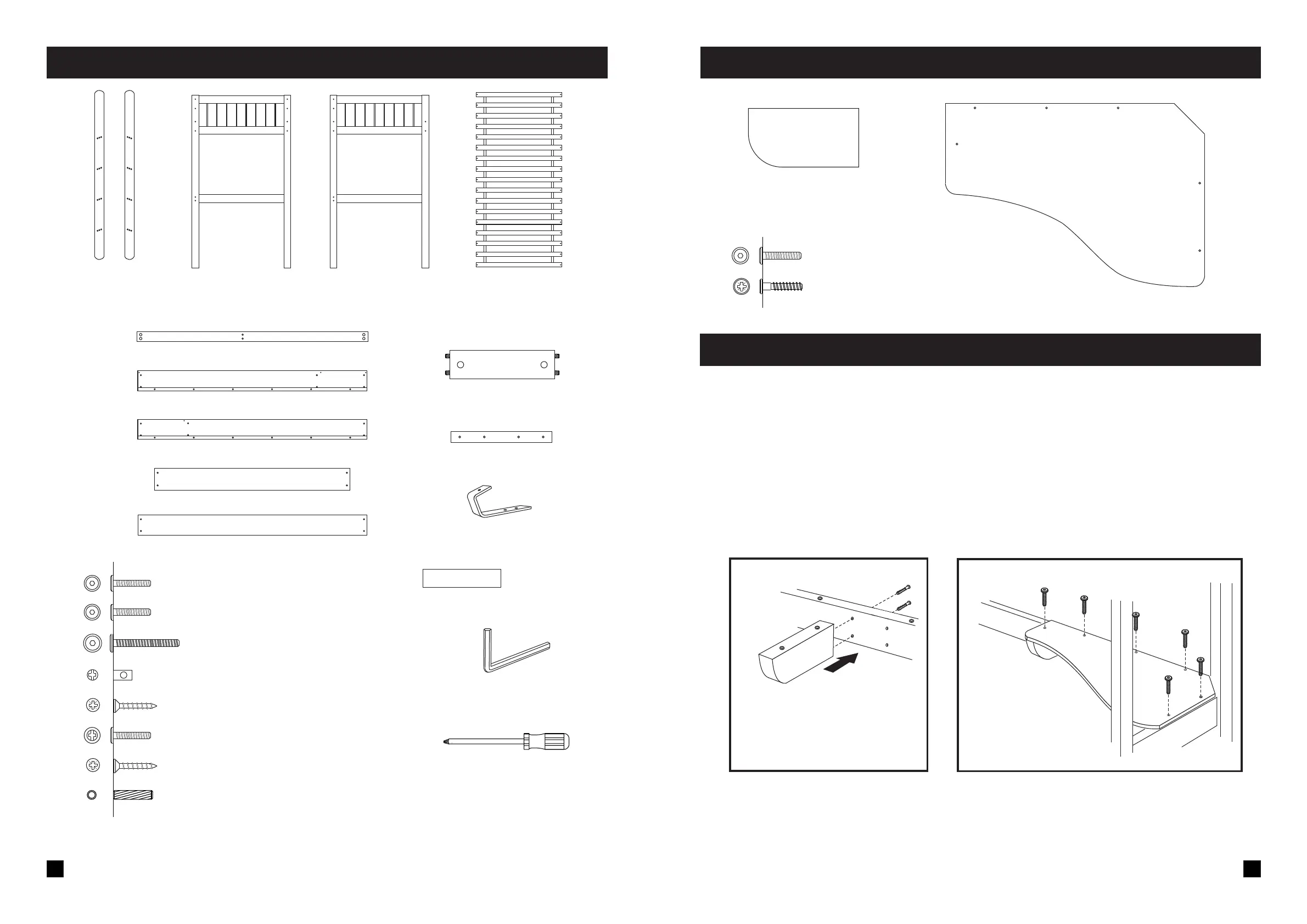

Parts Check List (Bed).
2x Allen Key
Ladder End x1
Mattress Base x1
Lower Rear Brace x1
Ladder Right Mattress Rail x1
Safety Rail Stile x1
Front Safety Rail x1
Rear Safety Rail x1
Ladder Legs x2
Ladder Hooks x2
Ladder Left Mattress Rail x1
4x Bolts for Rails (50mm)
18x Bolts for Bed (110mm)
34x Screws for Mattress Base (25mm)
16x Dowels
4x Small Bolts for Ladder Hooks (20mm)
26x Barrel Nuts
2x Screws (16mm)
You will also need
a screwdriver (Not supplied)
8. Fit the Desk.
You need: 6x Bolts (35mm), 2x Screw Bolts (50mm) and an Allen Key
NOTE: Please refer to the orientation option images at the front of this user guide to
help you decide and understand which way to position the Desk.
A - The Desk may be mounted either on the left or the right. Using 2x Screw Bolts (50mm),
attach the Desk Support to the Lower Rear Brace as shown.
6x Bolts (35mm)
2x Screw Bolts (50mm)
B - Place the Desk Top on the frame formed by the Lower Rail of the Bed End, the Rear
Brace and the Desk Support as shown. Use the Remaining 6x Bolts (35mm) and an Allen
Key to attach to the metal inserts beneath.
Parts Check List (Desk)
Assembly (Desk)
A B
1x Desk Top
1x Desk Support
(Left & Right)
Ladder Treads x4
8x Bolts for Ladder (60mm)
CR
Non Ladder End x1
Fittngs for the Desk and Day bed are shown on pages 8 & 9
Images not to scale
2x felt strips
