Aspect NVR-12MPOE-16 User Manual

NETWORK VIDEO RECORDER QUICK START GUIDE
WHAT’S IN THE BOX
Technical
Documents
NVR
USB Mouse
Remote Control DC 48V PSU (4ch/ 8ch)
HDD Mounting Screws Rack Mount Ears (32ch/ 64ch)
UK Kettle Lead Quick Start Guide
QR Code

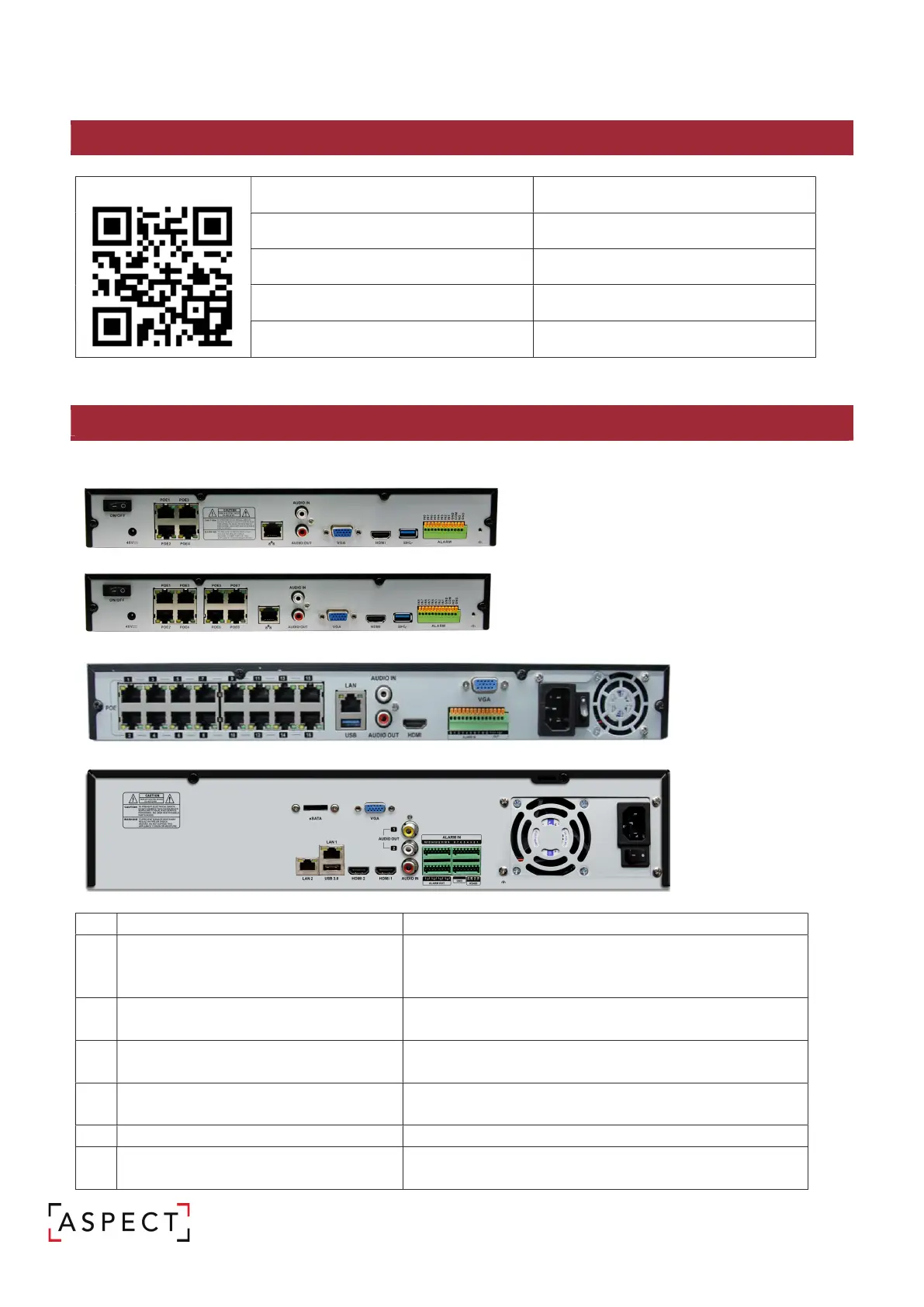

1. INSTALLATION
Rear Panel
1 – NVR-8MPOE-4
2 - NVR-8MPOE-8
3 - NVR-12MPOE-16, NVR-12MPOE-32
4 - NVR-12M-64
No.
Name
Description
1
CAM1
–
CAM4 (
NVR
-
8MPOE
-
4
)
CAM1 – CAM8 (NVR-12MPOE-8)
CAM1 – CAM16 (NVR-12MPOE-16/32)
Ethernet ports used for connecting and providing
power to cameras.
2 ETHERNET/WAN
Network port for connection to the Internet, router, or
network switch (no POE from this port).
3 VGA
VGA display output for connection to a main display
monitor (Max. 1920x1080 display resolution).
4 HDMI
HDMI display output for connection a main display
monitor (Max. 3840x2160 display resolution).
5
ALARM
IN
Alarm input terminals (AI1~A16
, GND).
6 RS-485 (NVR-12M-64)
Communications port for connecting
PTZ camera with
RS-485 support.

Aspect NVR-12MPOE-16 Specifications

General

Brand	Aspect
Model	NVR-12MPOE-16
Category	Network Hardware
Language	English
