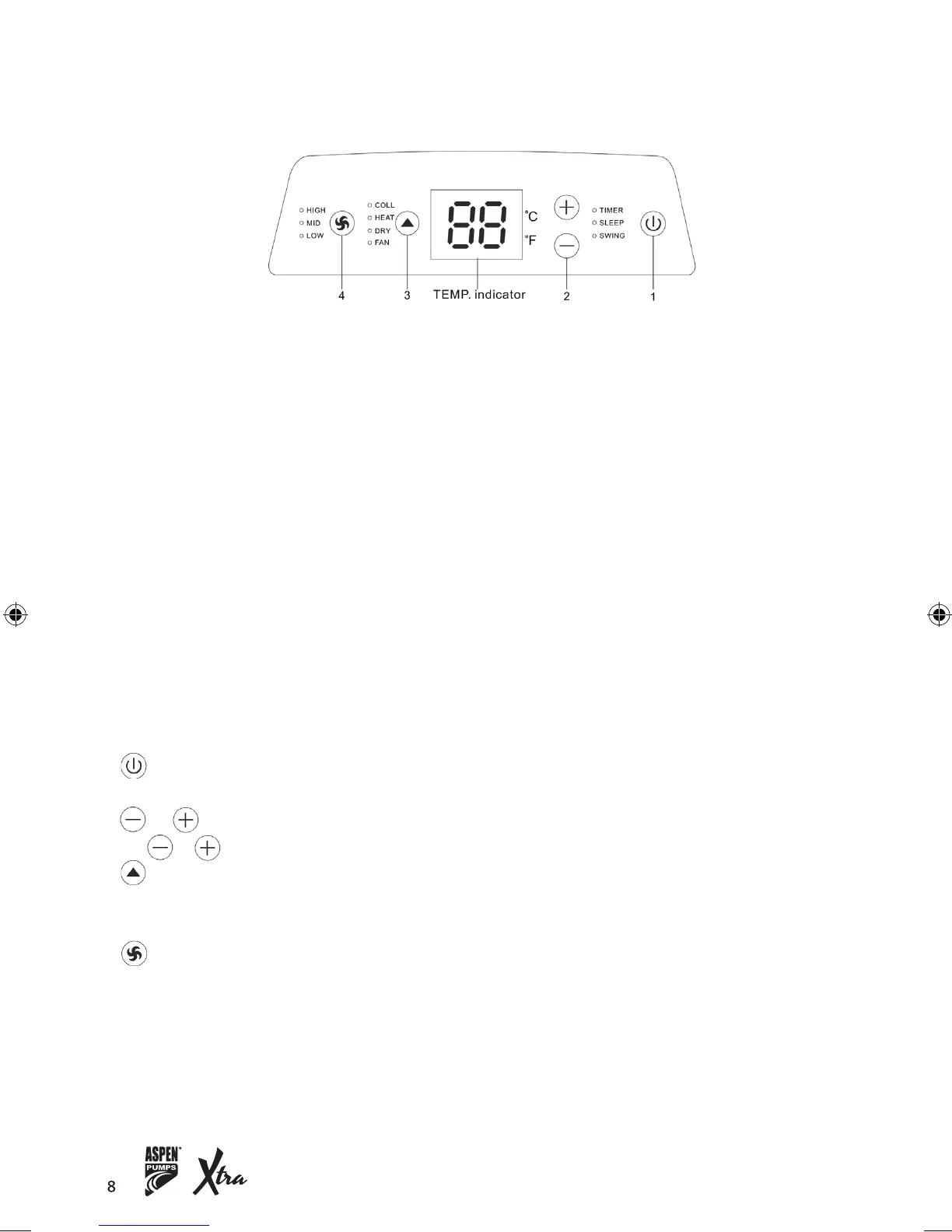

Control Panel
Fan
• HIGH – High speed indicator
• MID – Mid speed indicator
• LOW – Low speed indicator
Mode
• COOL – Cool indicator
• HEAT – Heating indicator (cold wind type unit without this display)
• DRY – Dehumidify indicator
• FAN – Fan indicator
Extra features
• TIMER – Time indicator
• SLEEP – Sleep indicator
• SWING – Swing indicator
Note: This icon is for all the buttons and display. Base models may not feature all the functions & modes.
Function Buttons
1 button.
Press this button to make the unit run or stop.
2 or button.
Press or button to make the room setting temperature decrease or increase.
3 button.
Each time you press this button, a mode is selected in a sequence that goes from COOL, HEAT, DRY
and FAN.
4 button.
This button is used for setting fan speed in the sequence that goes from LOW,MID, to HIGH, then
back to LOW.
Note: 1. Timer, Sleep, Swing function, “Auto”mode and “ Auto”fan speed can be selected by remote
controller not by control panel. 2. Other functions on control panel are as same as remote controller’s.
