Note:
Unit is adjustable
Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit. If you
find that you don’t have ample room to connect embedded pipes to the indoor unit, the unit can be adjusted
left or right by about 30-50mm (1.25-1.95in), depending on the model. (See Fig. 4.13)

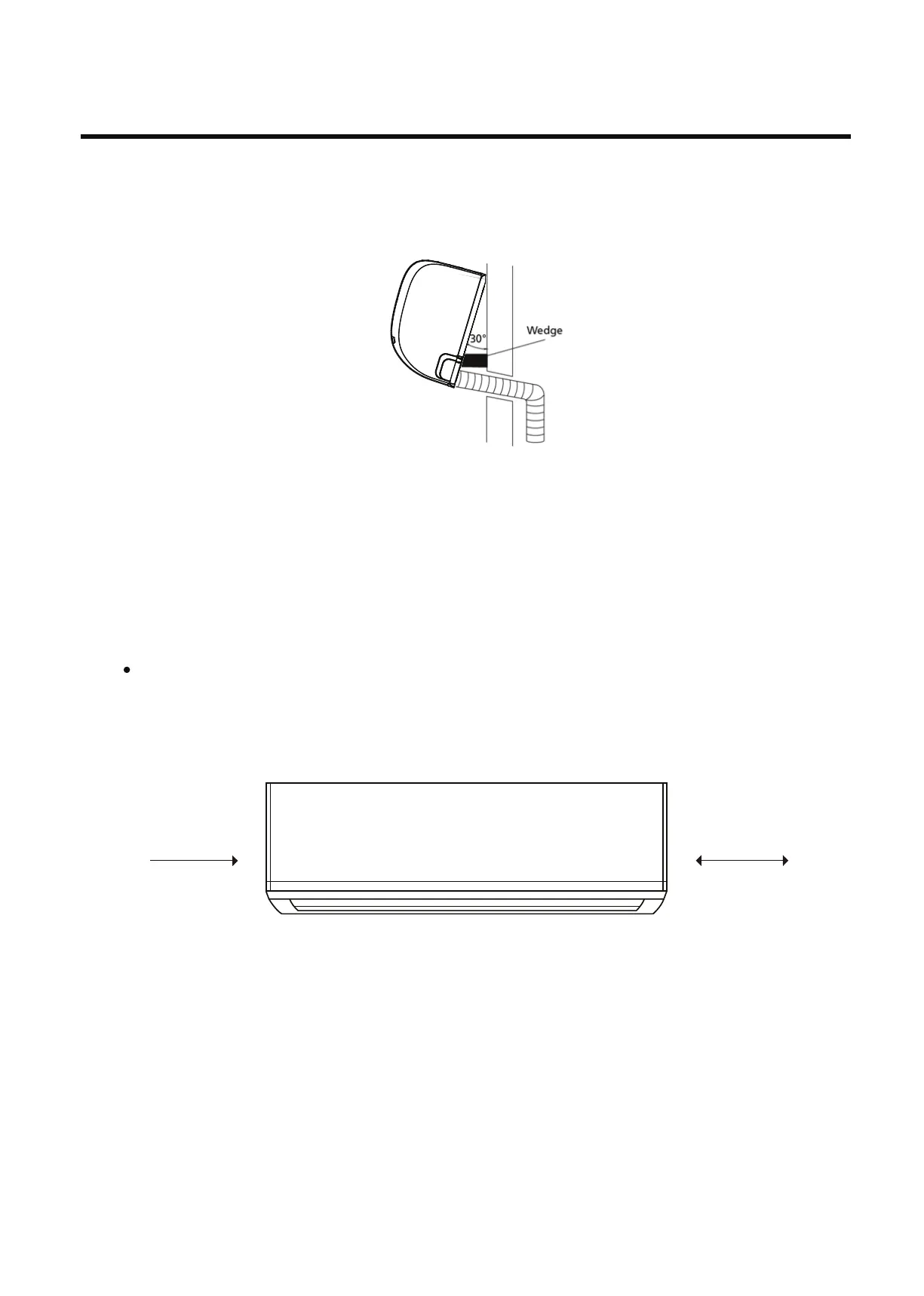

Fig. 4.13
Fig. 4.12
Move to left or right
30-50mm
30-50mm
(1.2-1.95in)
If refrigerant piping is already embedded in the wall, do the following:
1. Hook the top of the indoor unit on the upper hook of the mounting plate.
2. Use a bracket or wedge to prop up the unit, giving you enough room to connect the refrigerant piping, signal
cable, and drain hose. Refer to Fig. 4.12 for an example.
3. Connect drain hose and refrigerant piping (refer to Refrigerant Piping Connection section of this manual for
instructions).
4. Keep pipe connection point exposed to perform the leak test (refer to Electrical Checks and Leak Checks
section of this manual).
5. After the leak test, wrap the connection point with insulation tape.
6. Remove the bracket or wedge that is propping up the unit.
7. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto
the hooks along the bottom of the mounting plate.
4. Indoor Unit Installation
18
