Caution

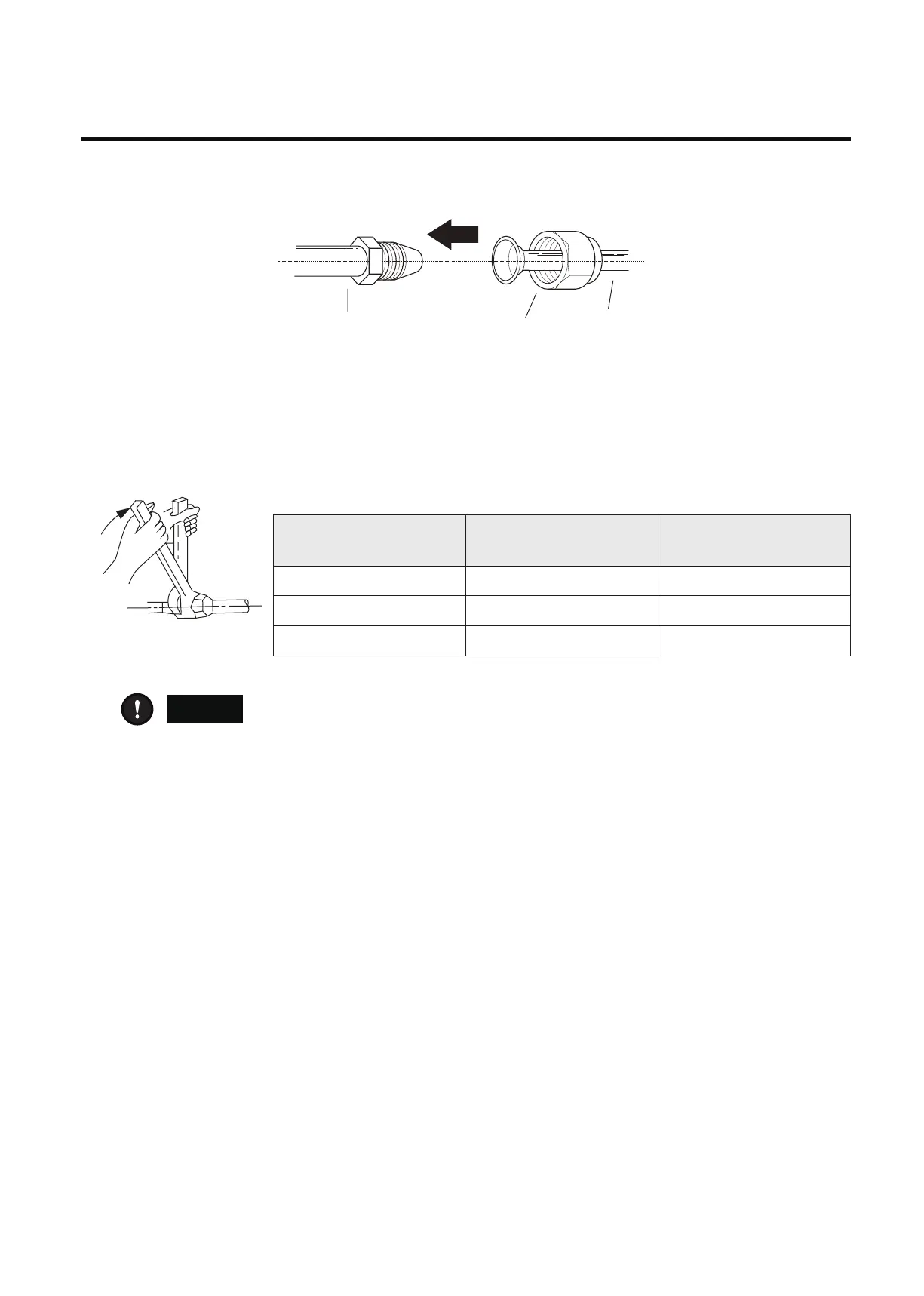

6.3 Instructions for Connecting Piping to Indoor Unit
Indoor unit tubing Flare nut Pipe
Fig. 6.7
Fig. 6.8
6. Refrigerant Piping Connection
1. Align the center of the two pipes that you will connect. See Fig.6.7.
2. Tighten the flare nut as tightly as possible by hand.
3. Using a spanner, grip the nut on the unit tubing.
4. While firmly gripping the nut on the unit tubing, use a torque wrench to tighten the flare nut according to the
torque values in the Torque Requirements table below. Loosen the flaring nut slightly, then tighten again.
Outer Diameter of Pipe
(mm)
Tightening Torque
(N•cm)
Add. Tightening Torque
(N•cm)
φ6.35 (φ0.25”) 1,500 (11lb • ft) 1,600 (11.8lb • ft)
φ9.52 (φ0.375”) 2,500 (18.4lb • ft) 2,600 (19.18lb • ft)
φ12.7 (φ 0.5”) 3,500 (25.8lb•ft) 3,600 (26.55lb•ft)
Torque Requirements
Excessive force can break the nut or damage the refrigerant piping. You must not exceed torque
requirements shown in the table above.
25
