Selecting the best location for the dishwasher
The installation position of dishwasher should be near the existing inlet and drain
and power .

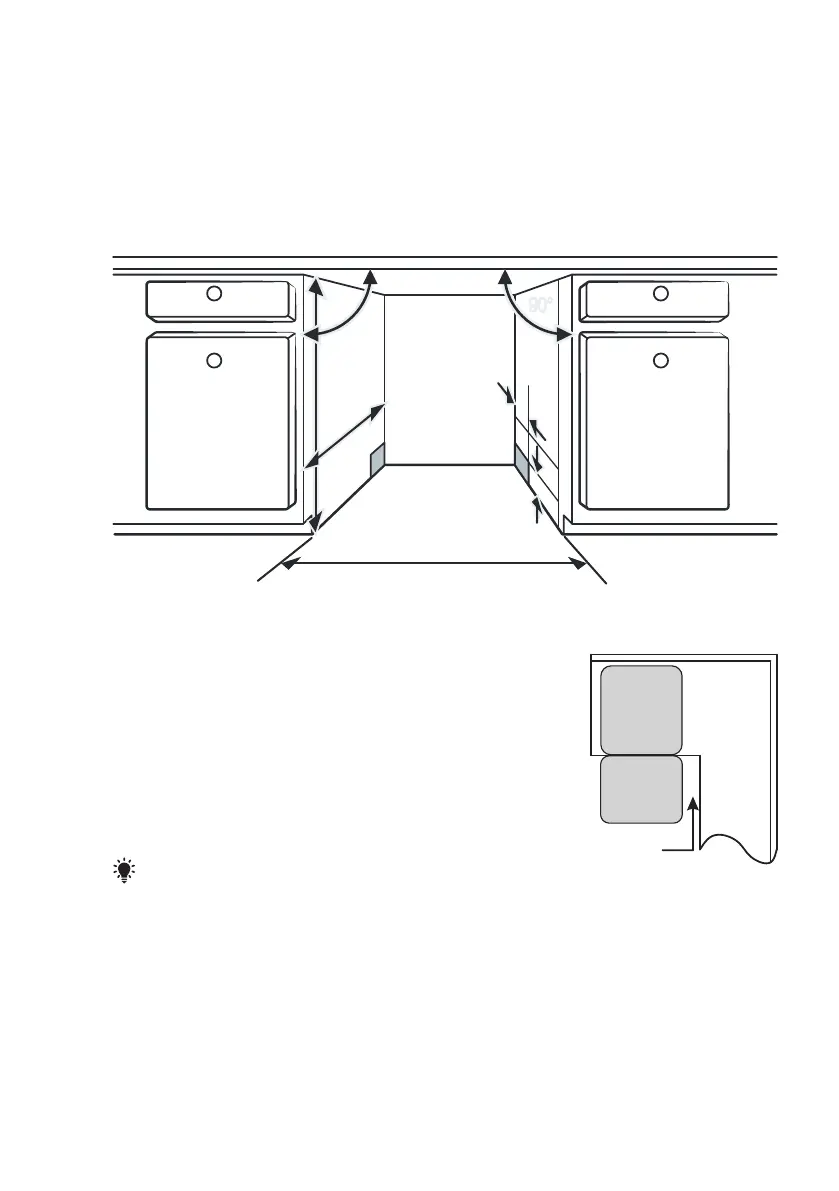

Illustrations of cabinet dimensions and installation position of the dishwasher.
1. Less than 5 mm between the top of dishwasher and cabinet and the outer door
aligned to cabinet.
the
hose socket
90 °
90 °
580mm580mm
820mm820mm
100100
Electrical, drain
and water supply
line connection
Electrical, drain
and water supply
line connection
Space between cabinet
bottom and floor
Space between cabinet
bottom and floor
600 mm(for 60cm model)
450 mm(for 45cm model)
8080
2. If dishwasher is at the corner of the cabinet,
there should be some space when the door is opened.
installed
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
