2.7 M.2_SSD (NGFF) Module Installation Guide (M2_1)
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Ultra M.2
Socket (M2_1) supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI
Express module up to Gen3 x4 (32 Gb/s).

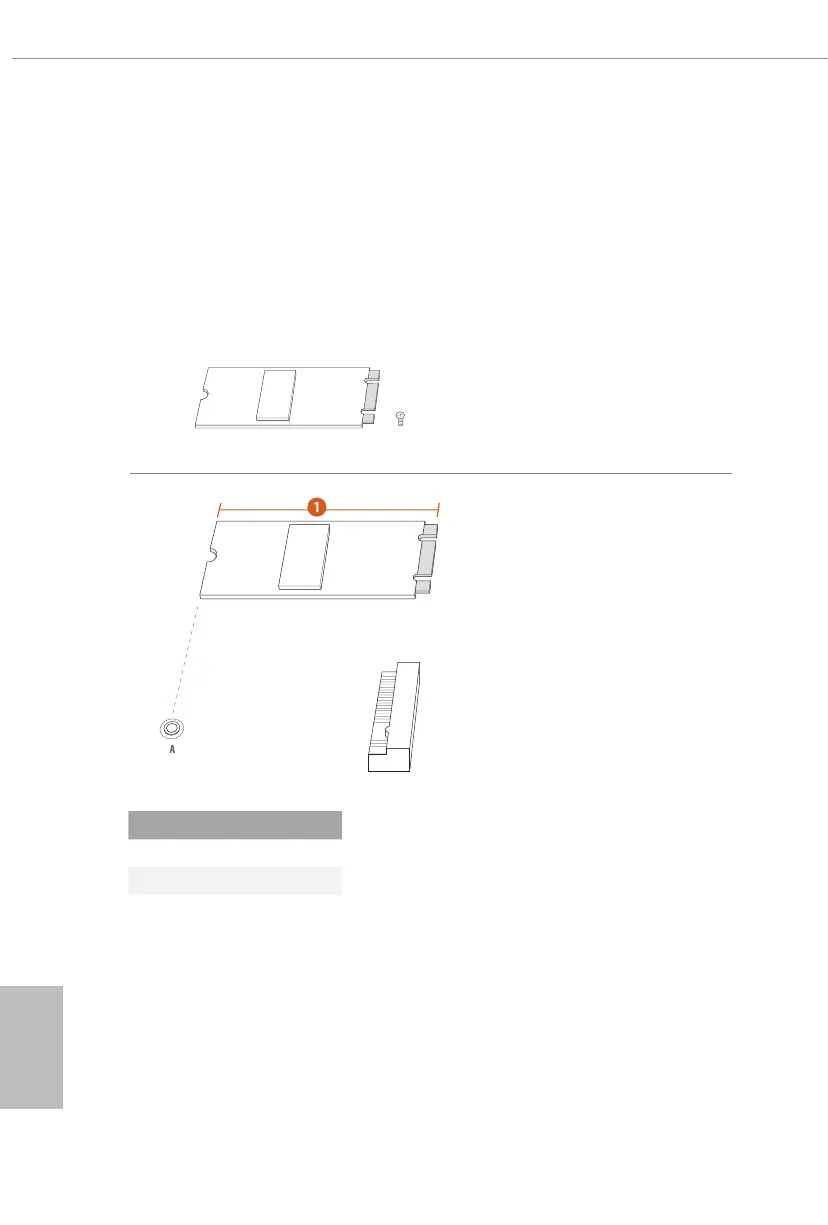

Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1
Nut Location A
PCB Length 8cm
Module Type Type 2280

ASROCK A520M-ITX/ac Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 9 3rd Gen
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466 MHz
Component for	PC
Motherboard chipset	-
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of HDDs supported	5
Supported storage drive interfaces	M.2, SATA III
Graphics card	Radeon Vega
Number of SATA III connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
BIOS type	UEFI AMI
Cables included	SATA
LAN controller	Realtek RTL8111H
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	201 mm
Width	230 mm
