ASROCK A55iCafe Manual

22
ASRock A55iCafe Motherboard
English

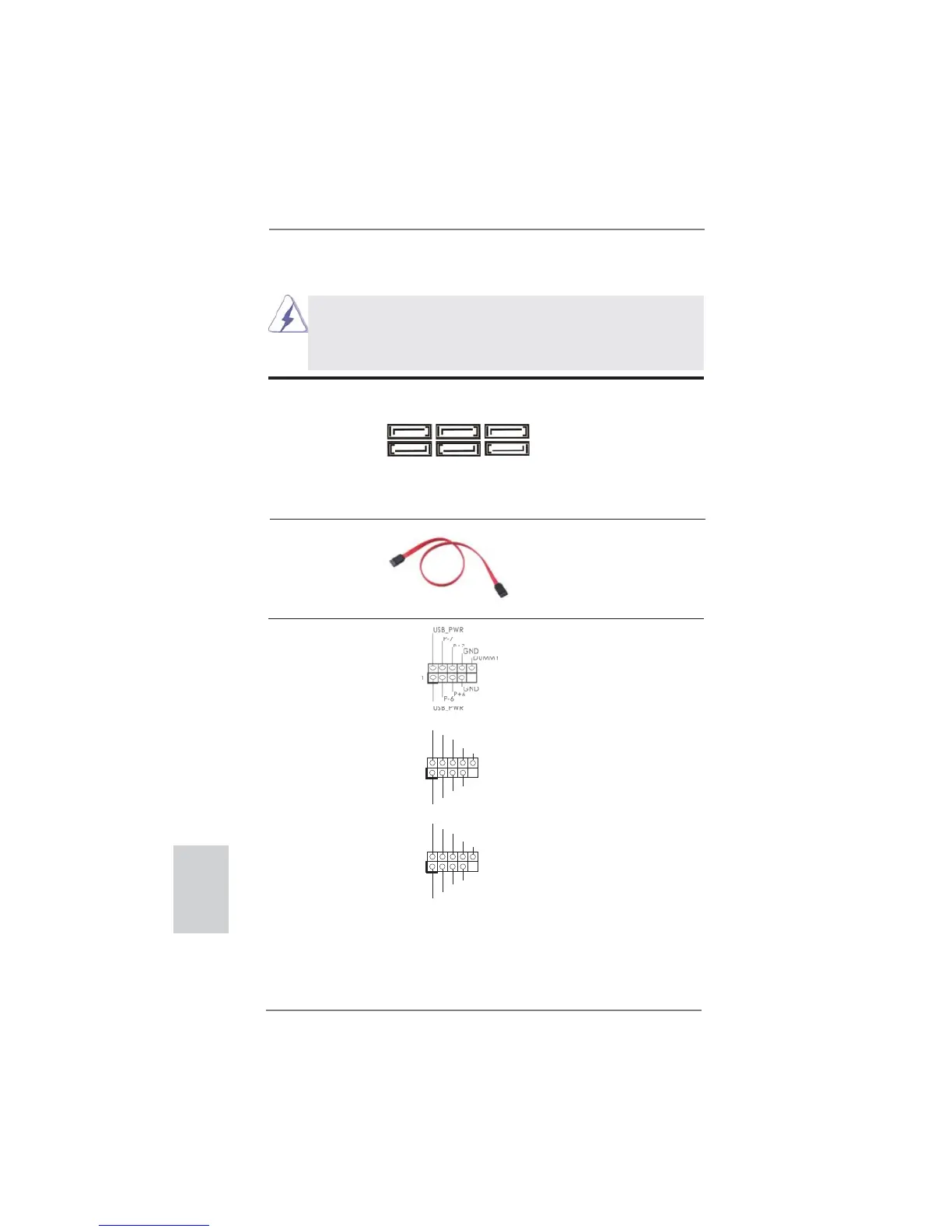

2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
1
USB_P WR
P-10
GND
DUMMY
USB_P WR
P+10
GND
P-11
P+11
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB6_7)
ports on the I/O panel, there
(see p.2 No. 23)
are three USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.2 No. 22)
(9-pin USB10_11)
(see p.2 No. 21)
Serial ATA2 Connectors These six Serial ATA2
(SATA2_1: see p.2, No. 9)
(SATA2) connectors support
(SATA2_2: see p.2, No. 10)
SATA data cables for internal
(SATA2_3: see p.2, No. 14)
storage devices. The current
(SATA2_4: see p.2, No. 11)
SATA2 interface allows up to
(SATA2_5: see p.2, No. 13)
3.0 Gb/s data transfer rate.
(SATA2_6: see p.2, No. 15)
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA / SATAII hard disk or the
SATAII connector on this
motherboard.
SATA2_6 SATA2_3 SATA2_5
SATA2_1 SATA2_2 SATA2_4
