ASRock A55iCafe Motherboard
English

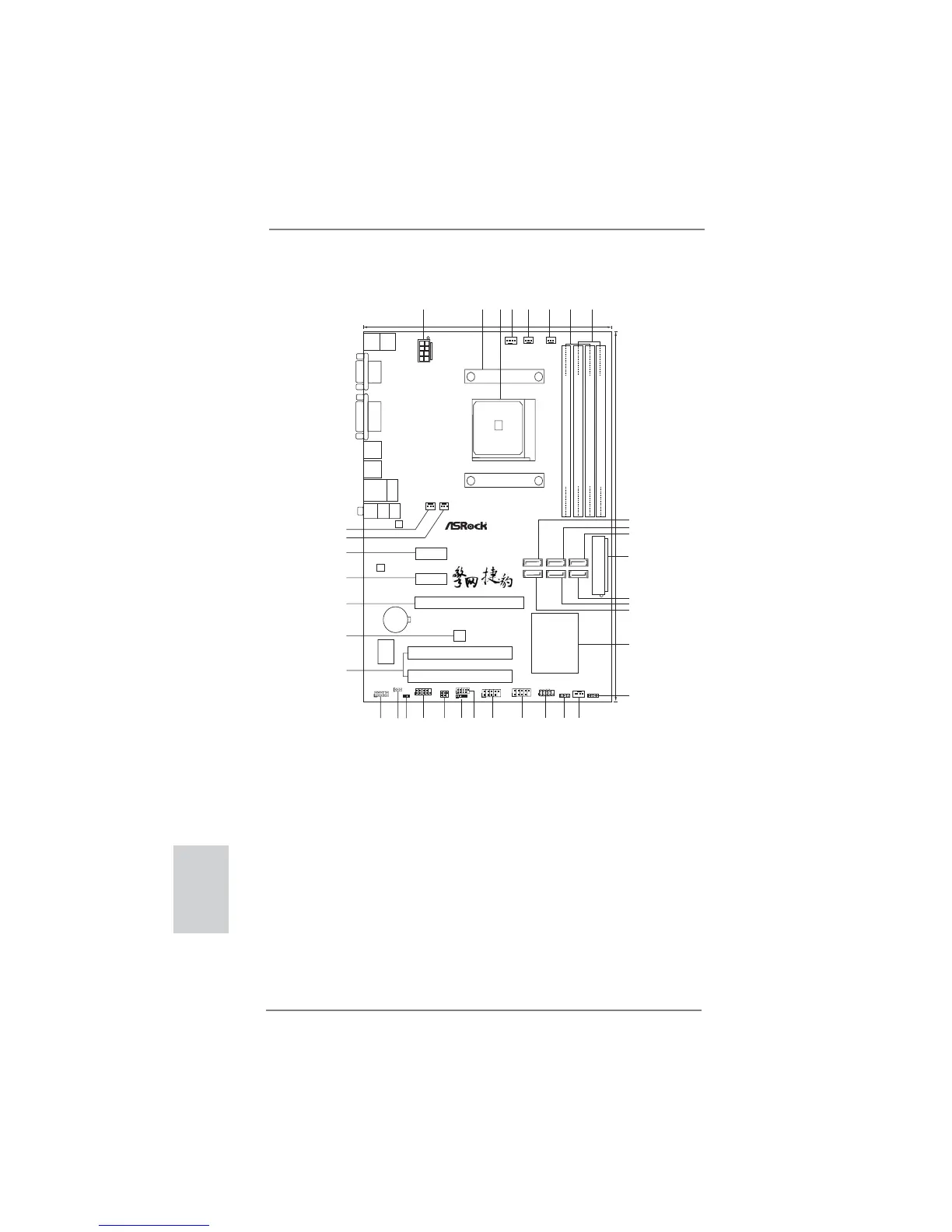

Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 18 Chassis Fan Connector (CHA_FAN1)
2 CPU Heatsink Retention Module 19 Power LED Header (PLED1)
3 CPU Socket 20 System Panel Header (PANEL1, White)
4 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB10_11, Blue)
5 CPU Fan Connector (CPU_FAN2) 22 USB 2.0 Header (USB8_9, Blue)
6 Power Fan Connector (PWR_FAN1) 23 USB 2.0 Header (USB6_7, Blue)
7 2 x 240-pin DDR3 DIMM Slots 24 Consumer Infrared Module Header (CIR1)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 25 Infrared Module Header (IR1)
8 2 x 240-pin DDR3 DIMM Slots 26 COM Port Header (COM1)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 27 HDMI_SPDIF Header (HDMI_SPDIF1, White)
9 SATA2 Connector (SATA2_1, Blue) 28 Clear CMOS Jumper (CLRCMOS1)
10 SATA2 Connector (SATA2_2, Blue) 29 Front Panel Audio Header (HD_AUDIO1, White)
11 SATA2 Connector (SATA2_4, Blue) 30 PCI Slots (PCI1-2)
12 ATX Power Connector (ATXPWR1) 31 SPI Flash Memory (32Mb)
13 SATA2 Connector (SATA2_5, Blue) 32 PCI Express 2.0 x16 Slot (PCIE3; Blue)
14 SATA2 Connector (SATA2_3, Blue) 33 PCI Express 2.0 x1 Slot (PCIE2; White)
15 SATA2 Connector (SATA2_6, Blue) 34 PCI Express 2.0 x1 Slot (PCIE1; White)
16 Southbridge Controller 35 Chassis Fan Connector (CHA_FAN3)
17 Chassis Speaker Header (SPEAKER 1, White) 36 Chassis Fan Connector (CHA_FAN2)
20.3cm (8.0-in)
30.5cm (12.0-in)
SOCKET FM1
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
AMD
A55 FCH
(Hudson-D2)
Chipset
A55iCafe
CMOS
BATTERY
ATX12V1
CPU_FAN1
CPU_FAN2
PWR_FAN1
CHA_FAN3
CHA_FAN2
Dual Graphics
32Mb
BIOS
X
Fast USB
X
Fast LAN
ErP/EuP Ready
Super
I/O
AUDIO
CODEC
LAN
PCIE1
PCIE2
PCIE3
PCI1
PCI2
RoHS
DX11
DDR3 2400+
Designed in Taipei
SATA2_6
SATA2_3
SATA2_5
SATA2_2
SATA2_4
SATA2_1
HDLED RESET
PLED PWRBTN
1
PANEL1
SPEAKER1
1
PLED1
1
CHA_FAN1
USB8_9
1
USB10_11
1
USB6_7
CIR1
1
1
COM1
1
CLRCMOS1
1
HD_AUDIO1
1
IR1
1
1
HDMI_SPDIF1
Gigabit LAN
VGA1
PS2
Mouse
PS2
Keyboard
DVI1
USB 2.0
T:USB2
B: USB3
Top:
RJ-45
USB 2.0
T: U SB 0
B: USB1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
USB 2.0
T:USB4
B: USB5
