24

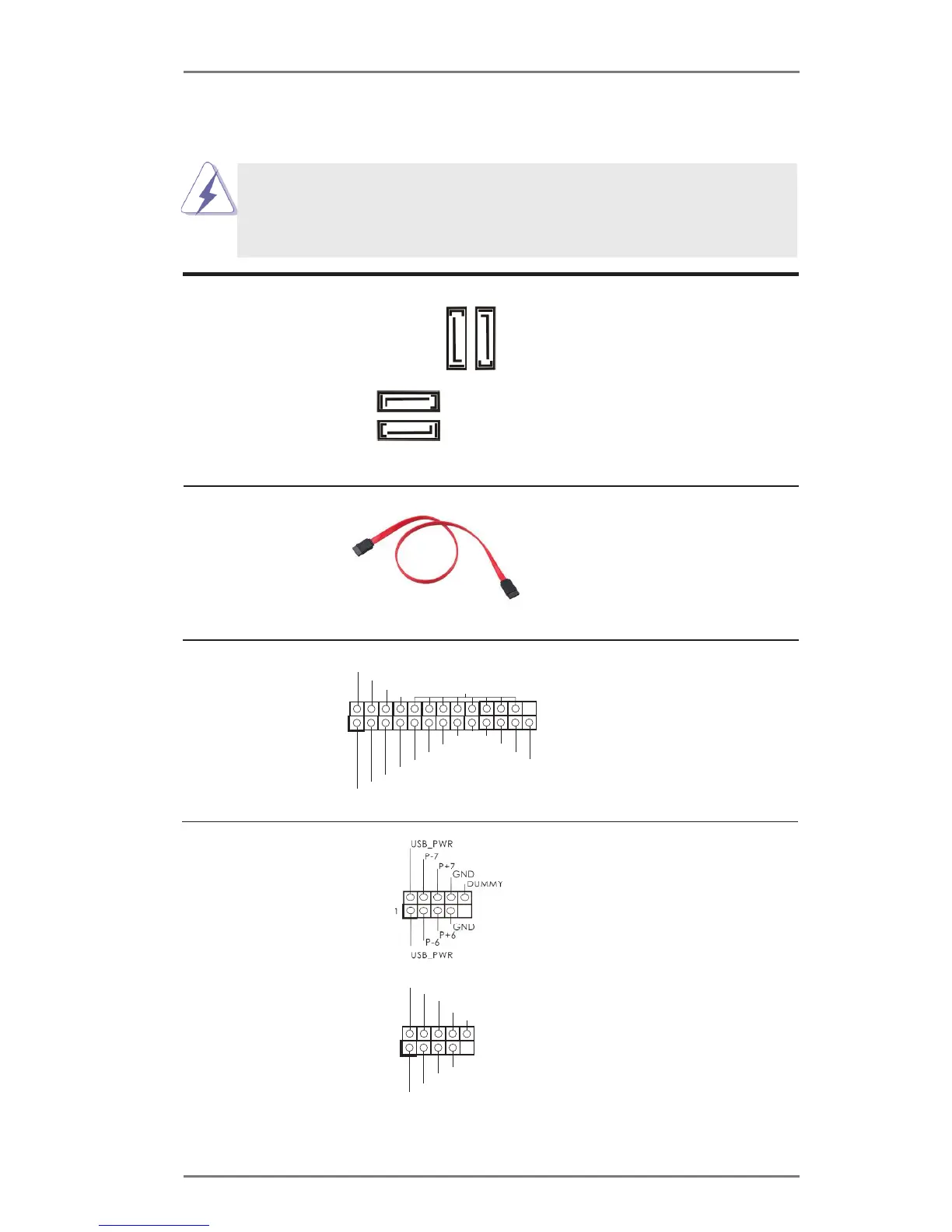

2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These four Serial ATA2
SATA data cables for internal
storage devices. The current
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
USB 2.0 Headers Besides four default USB 2.0
ports on the I/O panel, there
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
Print Port Header This is an interface for print
port cable that allows
convenient connection of printer
devices.
1
AFD#
ERROR #
PINIT #
GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
Data Cable cable can be connected to the
SATA / SATA2 hard disk or the
SATA2 connector on this
motherboard.
SATA_1
SATA_2
SATA_3
SATA_4
To Next Page
