26
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may con-
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to per-
form a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The
LED is on when the system is operating. The LED keeps blinking
when the sys-tem is in S1 sleep state. The LED is off when the system
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The
LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module
mainly consists of power switch, reset switch, power LED, hard drive
activity LED, speaker and etc. When connecting your chassis front
panel module to this header, make sure the wire assignments and the
pin assign-ments are matched correctly.

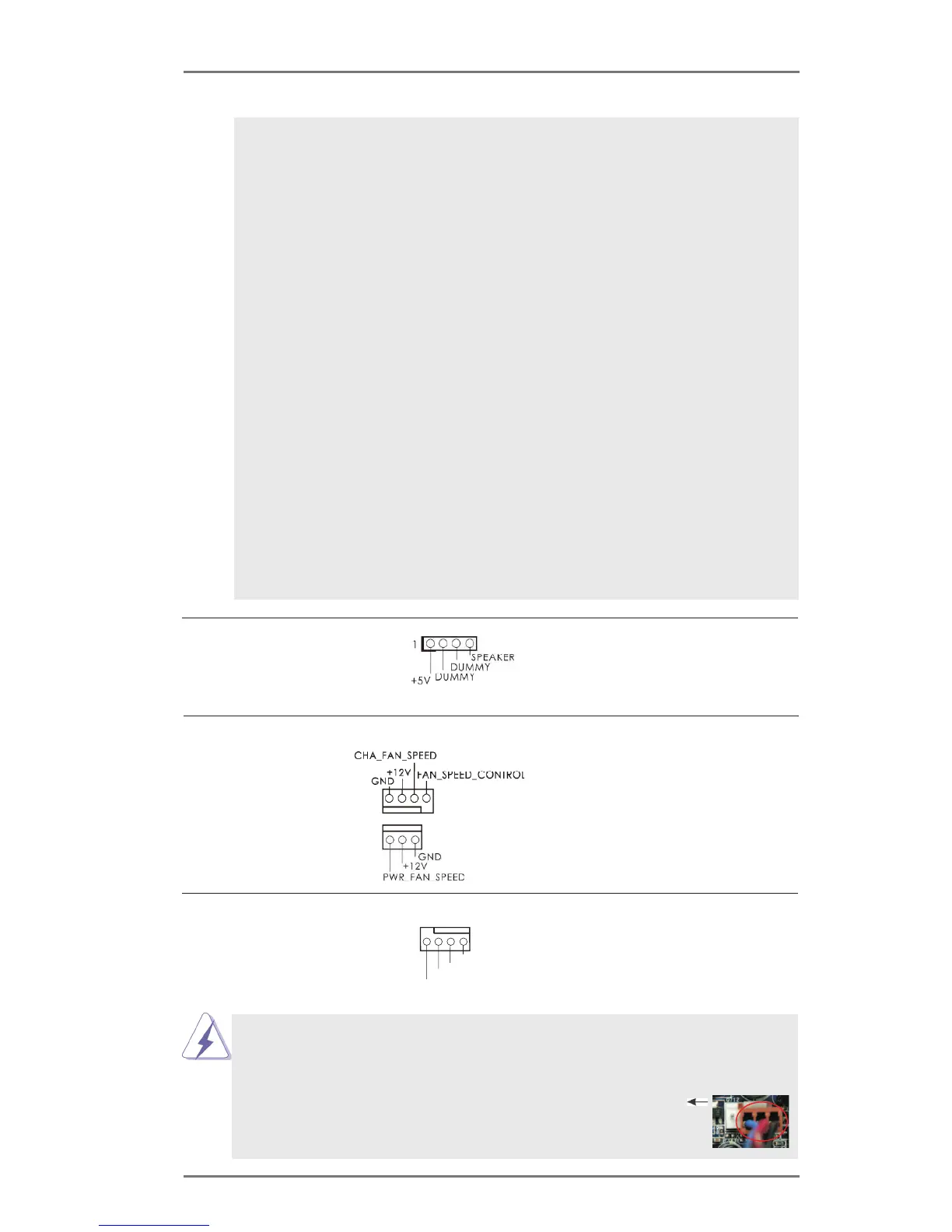

Chassis Speaker Header Please connect the chassis
speaker to this header.
Chassis and Power Fan Connectors Please connect the fan cables
to the fan connectors and
match the black wire to the
ground pin.
CPU Fan Connectors Please connect the CPU fan
cable to the connector and
match the black wire to the
ground pin.
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Pin 1-3 Connected
3-Pin Fan Installation
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
