56

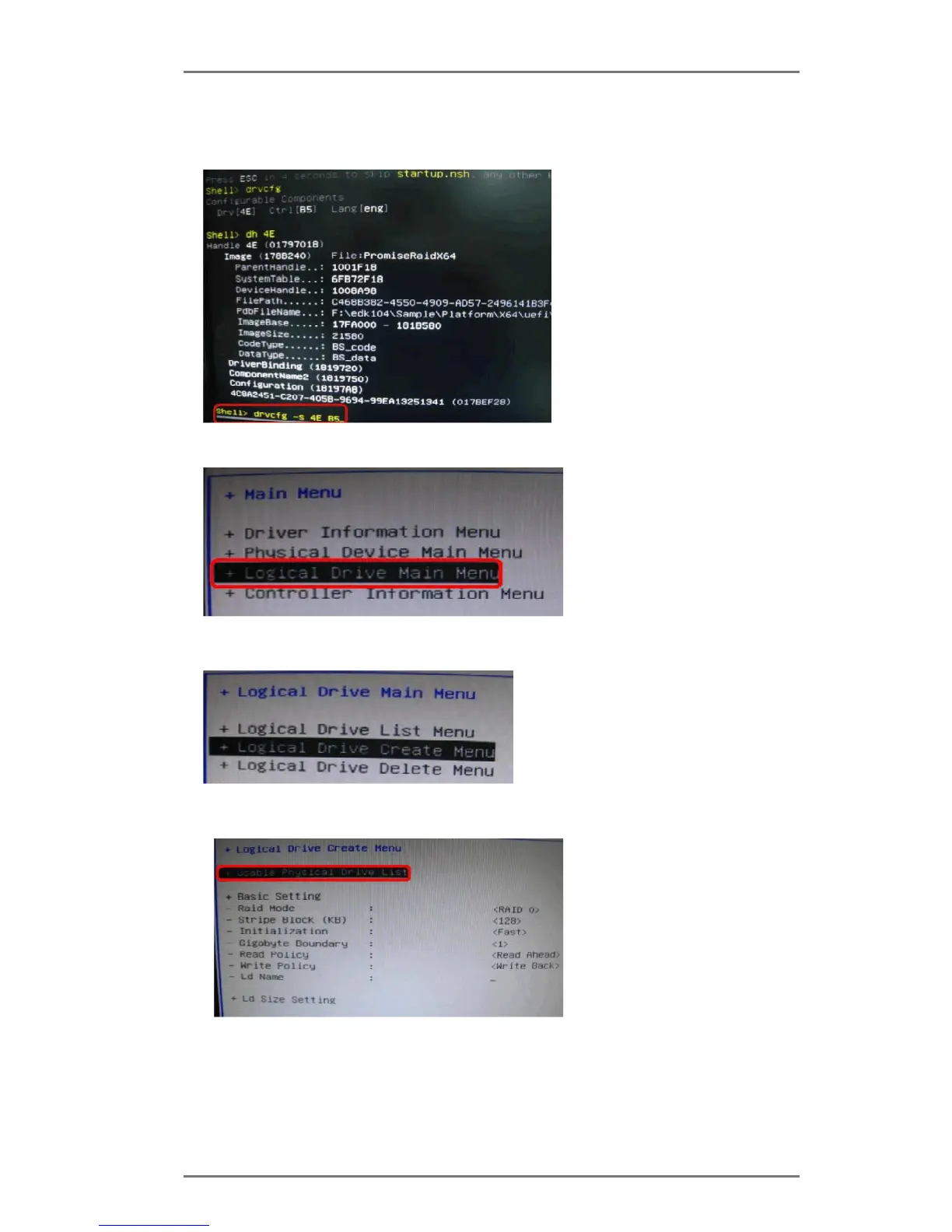

7.
And then key in
to enter Raid Utility
.
For example: key in
drvcfg –s 4E B5
.
8. Choose
Logical Drive Main Menu
to set up Raid Drive.
9. Choose
Logical Drive Create Menu
to create a Raid Drive.
10. Choose
Usable Physical Drive List
to select Raid HDD.
55
57
Table of Contents
Default Chapter
1
User Manual
1
Copyright Notice
2
Table of Contents
3
Introduction
5
Package Contents
5
Specifications
6
Motherboard Layout
11
I/O Panel
12
Installation
13
Pre-Installation Precautions
13
CPU Installation
14
Installation of CPU Fan and Heatsink
14
Installation of Memory Modules (DIMM)
15
Expansion Slots (PCI and PCI Express Slots)
16
Dual Graphics Operation Guide
17
Multi Monitor Feature
19
Asrock Smart Remote Installation Guide
21
Jumpers Setup
23
Clear CMOS Jumper
23
Onboard Headers and Connectors
24
Consumer Infrared Module Header
25
Infrared Module Header
25
Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Installation
28
Hot Plug and Hot Swap Functions for SATA / SATAII Hdds
28
SATA / SATAII HDD Hot Plug and Hot Swapfeature and Operation Operation Guide
29
How to Hot Plug a Sata / Sataii Hdd
30
How to Hot Unplug a Sata / Sataii Hdd
30
Driver Installation Guide
31
Installing Windows
31
64-Bit / Vista
31
Tm Tm
31
TM / Vista TM 64-Bit / XP
31
XP 64-Bit with RAID Functions
31
Installing Windows XP / XP 64-Bit with RAID Functions
31
64-Bit / Vista
32
Tm Tm
32
With RAID Functions
32
Installing Windows
32
64-Bit / Vista
33
Tm Tm
33
TM / Vista TM 64-Bit / XP
33
XP 64-Bit Without RAID Functions
33
Installing Windows XP / XP 64-Bit Without RAID Functions
33
Installing Windows
33
Tm Tm
34
TM / Vista TM 64-Bit
34
Without RAID Functions
34
Installing Windows Without RAID Functions
34
Uefi Setup Utility
35
Introduction
35
UEFI Menu Bar
35
Navigation Keys
36
Main Screen
36
OC Tweaker Screen
37
Advanced Screen
40
CPU Configuration
41
North Bridge Configuration
42
South Bridge Configuration
43
Storage Configuration
44
Super IO Configuration
45
ACPI Configuration
46
USB Configuration
48
Hardware Health Event Monitoring Screen
49
Boot Screen
50
Security Screen
51
Exit Screen
52
Software Support
53
Install Operating System
53
Support CD Information
53
Running Support CD
53
Drivers Menu
53
Utilities Menu
53
Contact Information
53
Storage Coniguration
54
Installing os on a Hdd Larger than 2Tb in Raid Mode
55
