English
37
A620M-HDV/M.2+

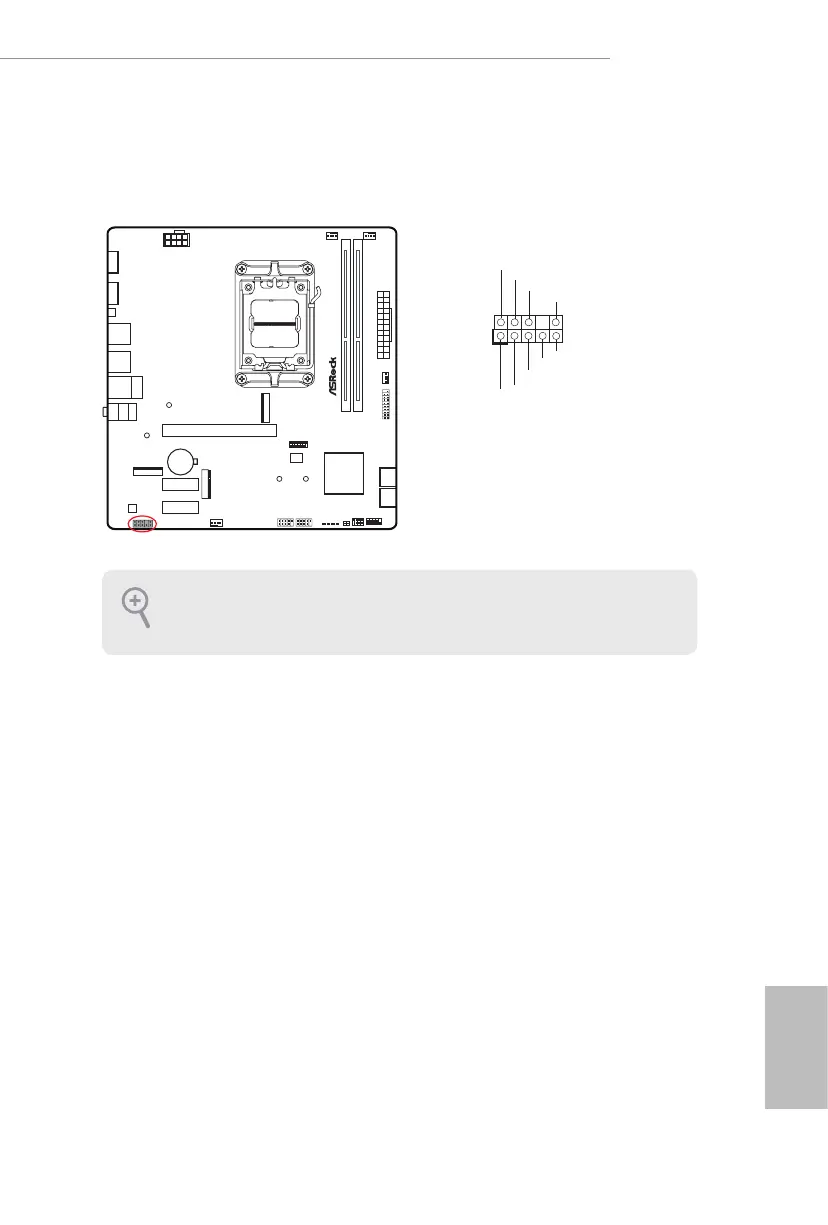

Front Panel Audio Header
(9-pin HD_AUDIO1) (see p.5, No. 18)
is header is for connecting audio devices to the front audio panel.
HD_AUDIO1
J _SENSE
O UT2_L
1
M IC_RET
P RESENCE #
GND
O UT2_R
M IC2_R
M IC2_L
OUT_RET
High Denition Audio supports Jack Sensing, but the panel wire on the chassis must
support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.
