37

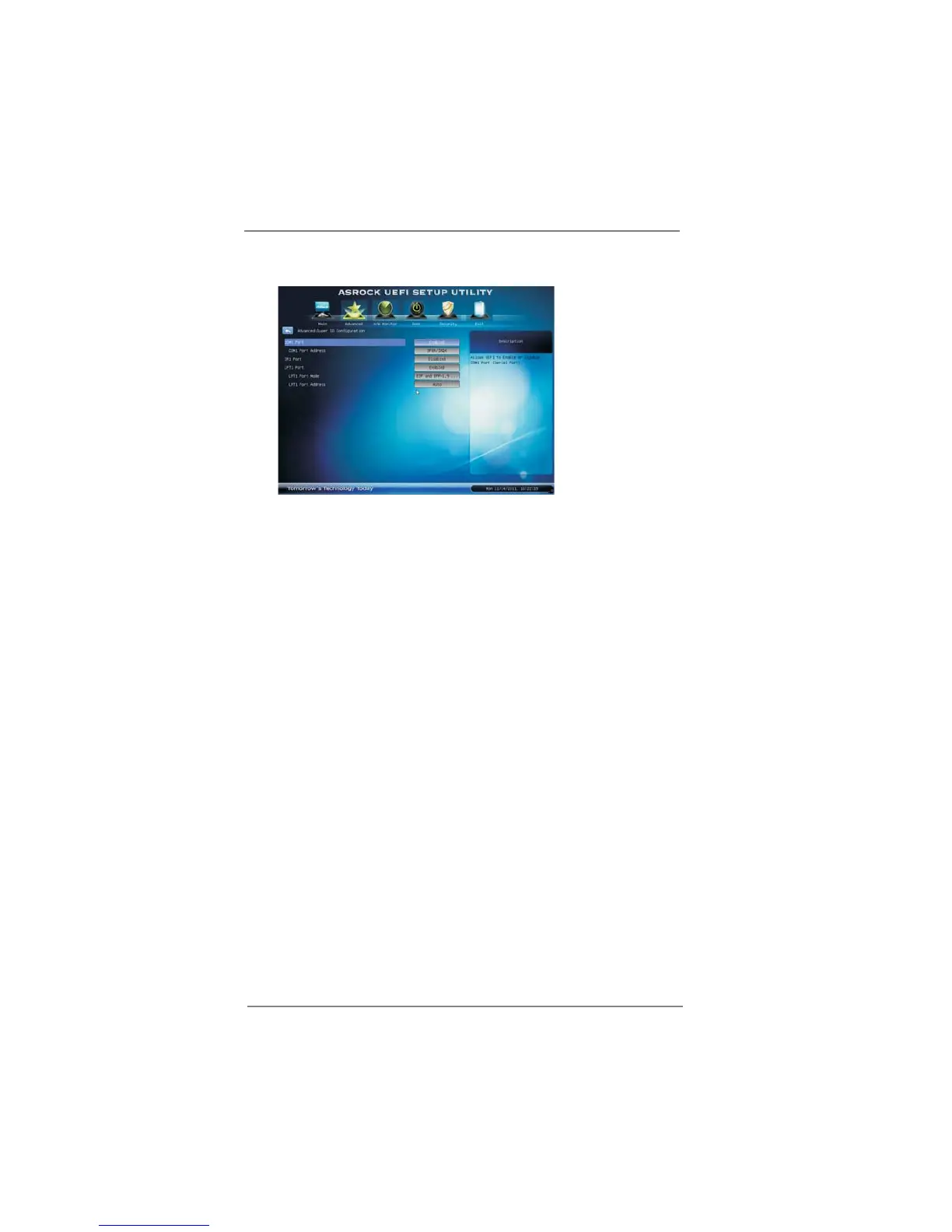

3.3.4 Super IO Configuration
COM1 Port
Use this item to enable or disable the onboard serial port.
COM1 Port Address
Use this item to set the address for the onboard serial port. Confi guration
options: [3F8 / IRQ4] and [3E8 / IRQ4].
IR1 Port
Use this item to enable or disable the onboard infrared port.
LPT1 Port
Use this item to enable or disable the onboard parallel port.
LPT1 Port Mode
Use this item to set the mode for the onboard parallel port. Confi guration
options: [Normal], [Bi-Directional], [ECP and EPP-1.9 Mode] and [ECP and
EPP-1.7 Mode].
LPT1 Port Address
Use this item to set the address for the onboard parallel port. Confi gura-
tion options: [Auto], [IO=378h; IRQ=5; DMA=3], [IO=378h; IRQ=5, 6, 7, 9,
10, 11, 12; DMA=1, 3] and [IO=278h; IRQ=5, 6, 7, 9, 10, 11, 12; DMA=1, 3].
