1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout

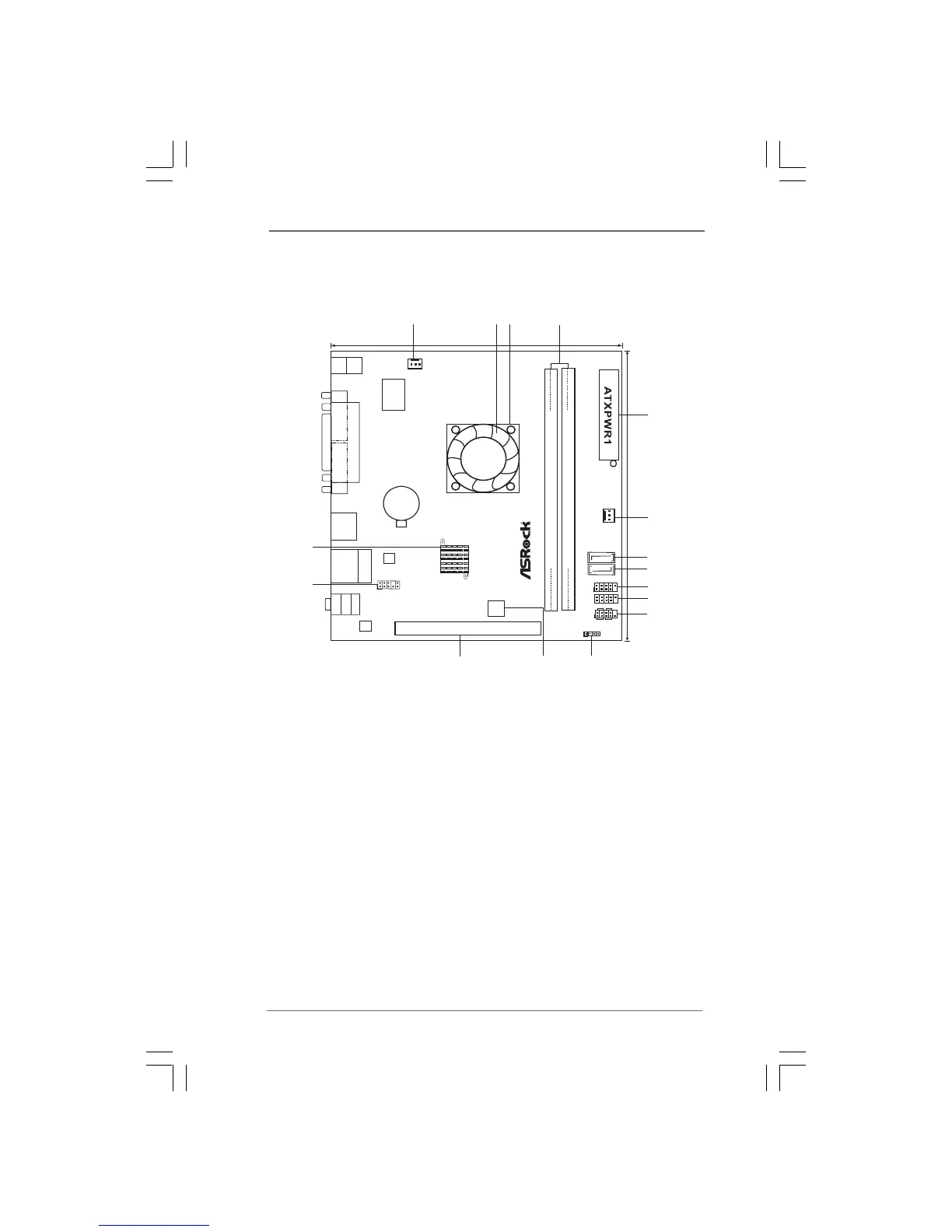

1 CPU Fan Connector (CPU_FAN1) 9 USB 2.0 Header (USB6_7, Blue)
2 CPU Fan 10 USB 2.0 Header (USB4_5, Blue)
3 CPU Heatsink 11 System Panel Header (PANEL1, White)
4 2 x 240-pin DDR3 DIMM Slots 12 Chassis Speaker Header (SPEAKER 1, White)
(Dual Channel: DDR3_A1, DDR3_A2; Blue) 13 BIOS SPI Chip
5 ATX Power Connector (ATXPWR1) 14 PCI Slot (PCI1)
6 Chassis Fan Connector (CHA_FAN1) 15 Front Panel Audio Header
7 Secondary SATAII Connector (SATAII_2; Blue) (HD_AUDIO1, White)
8 Primary SATAII Connector (SATAII_1; Blue) 16 South Bridge Controller
SPEAKER1
1
HD_AUDIO1
PANE L 1
HDLED RESET
PLED PWRBTN
1
CMOS
Battery
4Mb
BIOS
1
AUDIO
CODEC
17.0cm (6.7 in)
17.0cm (6.7 in)
Super
IO
1
2
4
5
7
6
8
9
10
12
13
14
11
15
16
3
FSB800
DDR3_A1 (64 bit, 240-pin module)
FSB800
DDR3_A2 (64 bit, 240-pin module)
SATAII_1
SATAII_2
LAN
PHY
RoHS
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
PARALLEL PORT
VGA1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
CPU_FAN1
1
USB6_7
PCI1
1
USB4_5
Gigabit LAN
CHA_FAN1
DDR3 ErP/EuP Ready
USB 2.0
T: USB2
B: USB3
COM1
Design in Taipei
PS2
Mouse
PS2
Keyboard

ASROCK AD425PV3 Specifications

General

Brand	ASROCK
Model	AD425PV3
Category	Motherboard
Language	English
