Caution
1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug
cannot be processed.
2. Even some SATA / SATAII HDDs provide both SATA 15-pin power connector
and IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin
conventional power connector interface is definitely not able to support Hot
Plug and will cause the HDD damage and data loss.
SATA 7-pin
connector
1x4-pin conventional
power connector (White)
connect to power supply

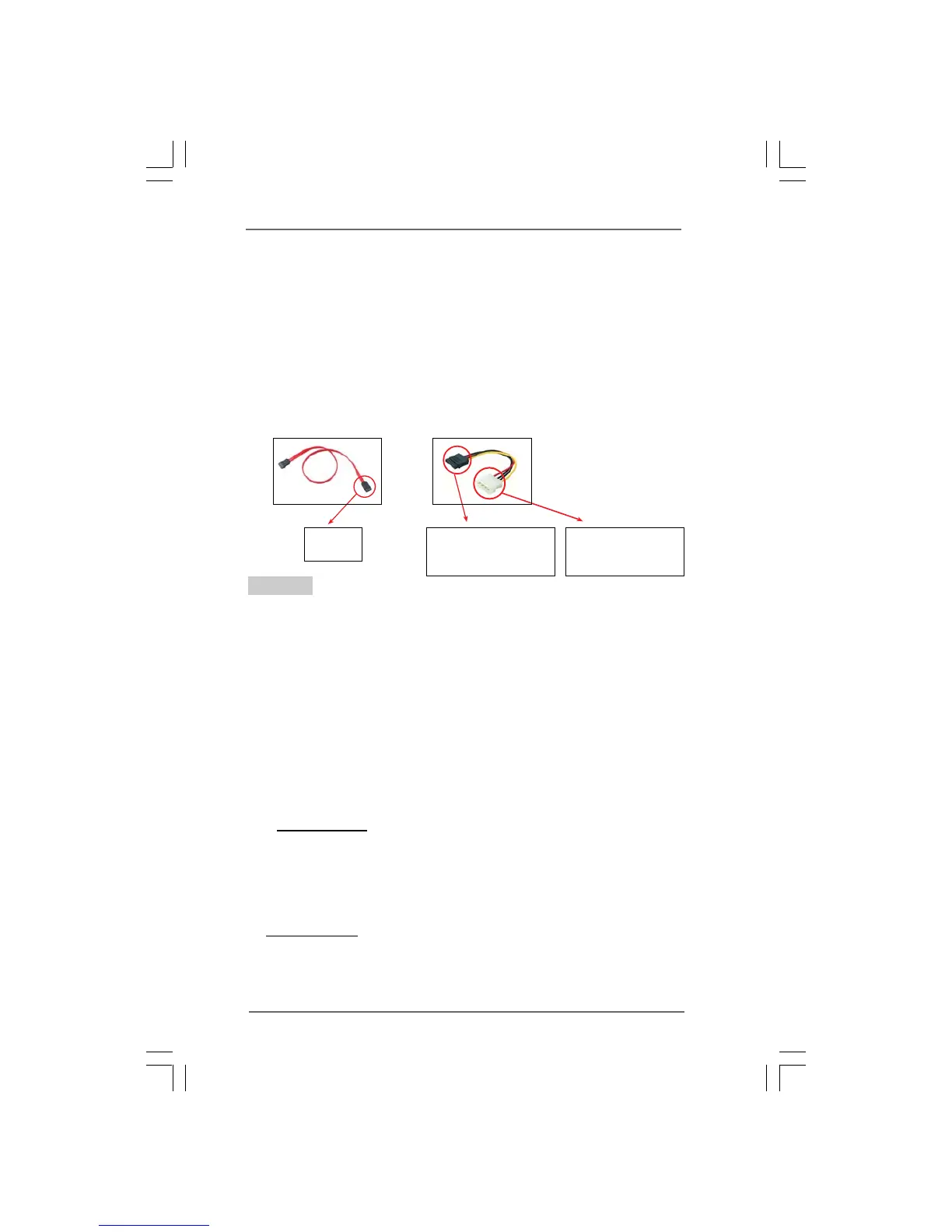

A. SATA data cable (Red) B. SATA power cable
2.92.9
2.92.9
2.9
SASA
SASA
SA
TT
TT
T
A / SAA / SA
A / SAA / SA
A / SA
TT
TT
T
AII HDD Hot Plug FAII HDD Hot Plug F
AII HDD Hot Plug FAII HDD Hot Plug F
AII HDD Hot Plug F
eature and Operationeature and Operation
eature and Operationeature and Operation
eature and Operation
GuideGuide
GuideGuide
Guide
This motherboard supports Hot Plug feature for SATA / SATAII HDD in AHCI mode.
Please read below operation guide of SATA / SATAII HDD Hot Plug feature
carefully. Before you process the SATA / SATAII HDD Hot Plug, please check
below cable accessories from the motherboard gift box pack.
A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
The SATA 15-pin power
connector (Black) connect
to SATA / SATAII HDD
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which
supports SATA / SATAII HDD Hot Plug.
* The SATA / SATAII Hot Plug feature might not be supported by the chipset
because of its limitation, the SATA / SATAII Hot Plug support information of our
motherboard is indicated in the product spec on our website:
www.asrock.com
2. Make sure your SATA / SATAII HDD can support Hot Plug function from your
dealer or HDD user manual. The SATA / SATAII HDD, which cannot support Hot
Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATAII driver is installed into system properly. The
latest SATA / SATAII driver is available on our support website:
www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.
