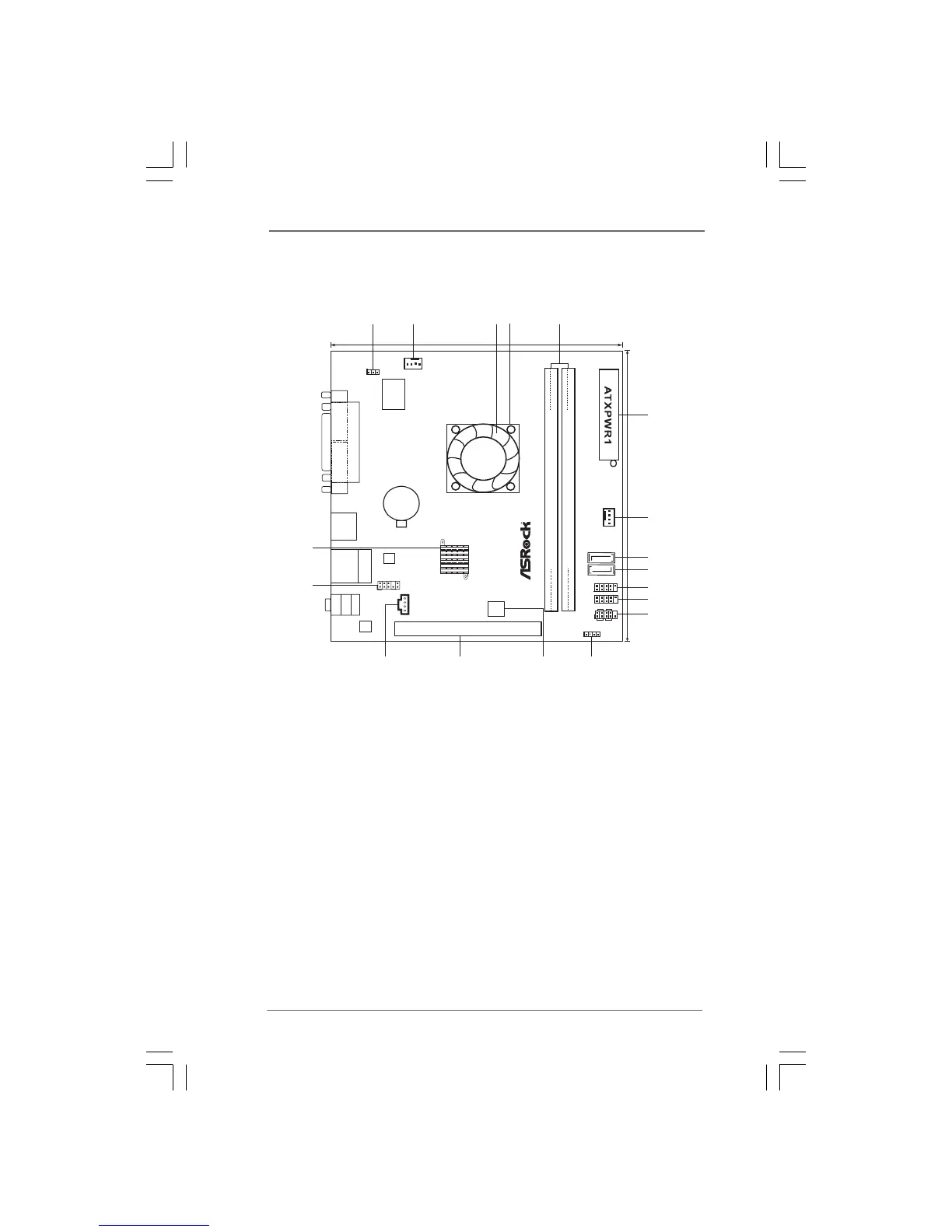

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 10 USB 2.0 Header (USB6_7, Blue)
2 CPU Fan Connector (CPU_FAN1) 11 USB 2.0 Header (USB4_5, Blue)
3 CPU Fan 12 System Panel Header (PANEL1, White)
4 CPU Heatsink 13 Chassis Speaker Header (SPEAKER 1, White)
5 2 x 240-pin DDR2 DIMM Slots 14 BIOS SPI Chip
(Dual Channel: DDRII_1, DDRII_2; Yellow) 15 PCI Slot (PCI1)
6 ATX Power Connector (ATXPWR1) 16 Internal Audio Connector: CD1 (Black)
7 Chassis Fan Connector (CHA_FAN1) 17 Front Panel Audio Header
8 Secondary SATAII Connector (SATAII_2; Blue) (HD_AUDIO1, White)
9 Primary SATAII Connector (SATAII_1; Blue) 18 South Bridge Controller
1
PS2_USB_PWR1
SPEAKER1
1
HD_AUDIO1
PANE L 1
HDLED RESET
PLED PWRBTN
1
CMOS
Battery
4Mb
BIOS
1
AUDIO
CODEC
17.0cm (6.7 in)
17.0cm (6.7 in)
Super
IO
1
2
4
5
7
6
8
9
10
12
13
14
11
15
16
17
18
3
FSB800
DDRII_1 (64 bit, 240-pin module)
FSB800
DDRII_2 (64 bit, 240-pin module)
SATAII_1
SATAII_2
CD1
LAN
PHY
RoHS
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
PARALLEL PORT
VGA1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
CPU_FAN1
1
USB6_7
PCI1
1
USB4_5
Gigabit LAN
CHA_FAN1
DDR2 800
E
rP/EuP Ready
USB 2.0
T: USB2
B: USB3
COM1
Design in Taipei

ASROCK AD525PV Specifications

General

Brand	ASROCK
Model	AD525PV
Category	Motherboard
Language	English
