3030
3030
30

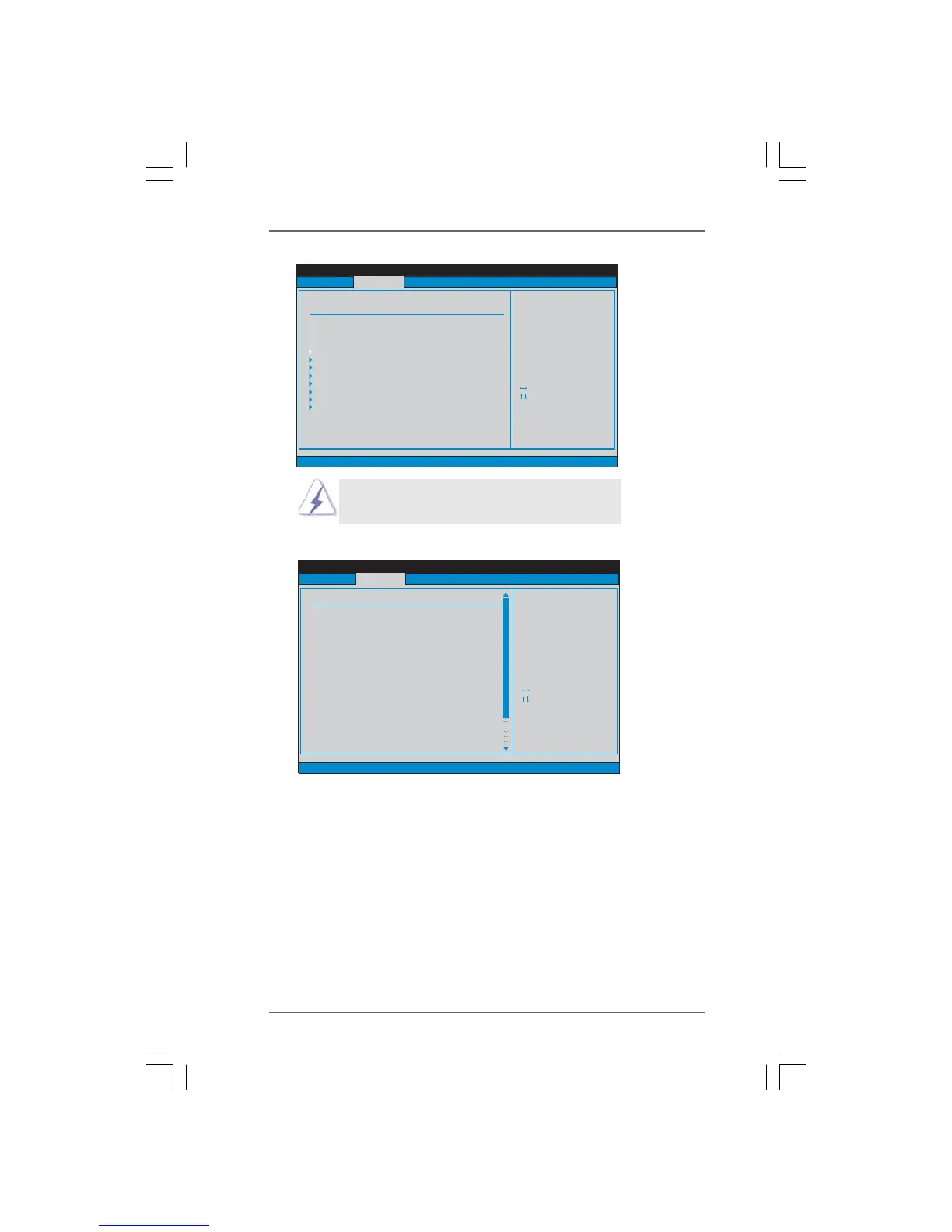

BIOS SETUP UTILITY
CPU Configuration
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
CPU Frequency (MHz)
PCIE Frequency (MHz)
AM2 Boost
Overclock Mode
[200]
[100]
[Disabled]
[Auto]
CPU/LDT Spread Spectrum
PCIE
SATA
Cool'n'Quiet
Dual Core Support
Spread Spectrum
Spread Spectrum
[0.75% Hershey]
[Enabled]
[Enabled]
[Auto]
[Enabled]
Processor Maximum Multiplier
Processor Maximum Voltage
Memory Clock
Flexibility Option
CAS Latency
TRAS
[Auto]
[Auto]
[Disabled]
[Auto]
x11
1.550 V
Boot Failure Guard
[Enabled]
Multiplier/Voltage Change
[Auto]
If AUTO, multiplier and
voltage will be left at the
rated frequency/voltage. If
Manual,
will be set based
on User Selection in Setup.
multiplier and
voltage
BIOS SETUP UTILITY
Main
H/W Monitor Boot Security Exit
Advanced Settings
WARNING : Setting wrong values in below sections
may cause system to malfunction.
Options for CPU
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
CPU Configuration
Chipset Configuration
ACPI Configuration
IDE Configuration
PCIPnP Configuration
Floppy Configuration
SuperIO
USB Configuration
Configuration
Setting wrong values in this section may cause
the system to malfunction.
3.3.13.3.1
3.3.13.3.1
3.3.1
CPU ConfigurationCPU Configuration
CPU ConfigurationCPU Configuration
CPU Configuration
AM2 Boost
If you set this option to [Enabled], you will enable ASRock AM2 Boost
function, which will improve the memory performance. The default value is
[Disabled]. Please refer to caution 7 on page 8 for details.
Overclock Mode
Use this to select Overclock Mode. The default value is [Auto]. Configura-
tion options: [Auto], [CPU, PCIE, Sync.] and [CPU, PCIE, Async.].
CPU Frequency (MHz)
Use this option to adjust CPU frequency. The default value is [200].
PCIE Frequency (MHz)
Use this option to adjust PCIE frequency. The default value is [100].
Boot Failure Guard
Enable or disable the feature of Boot Failure Guard.
