3
English
B150M-ITX

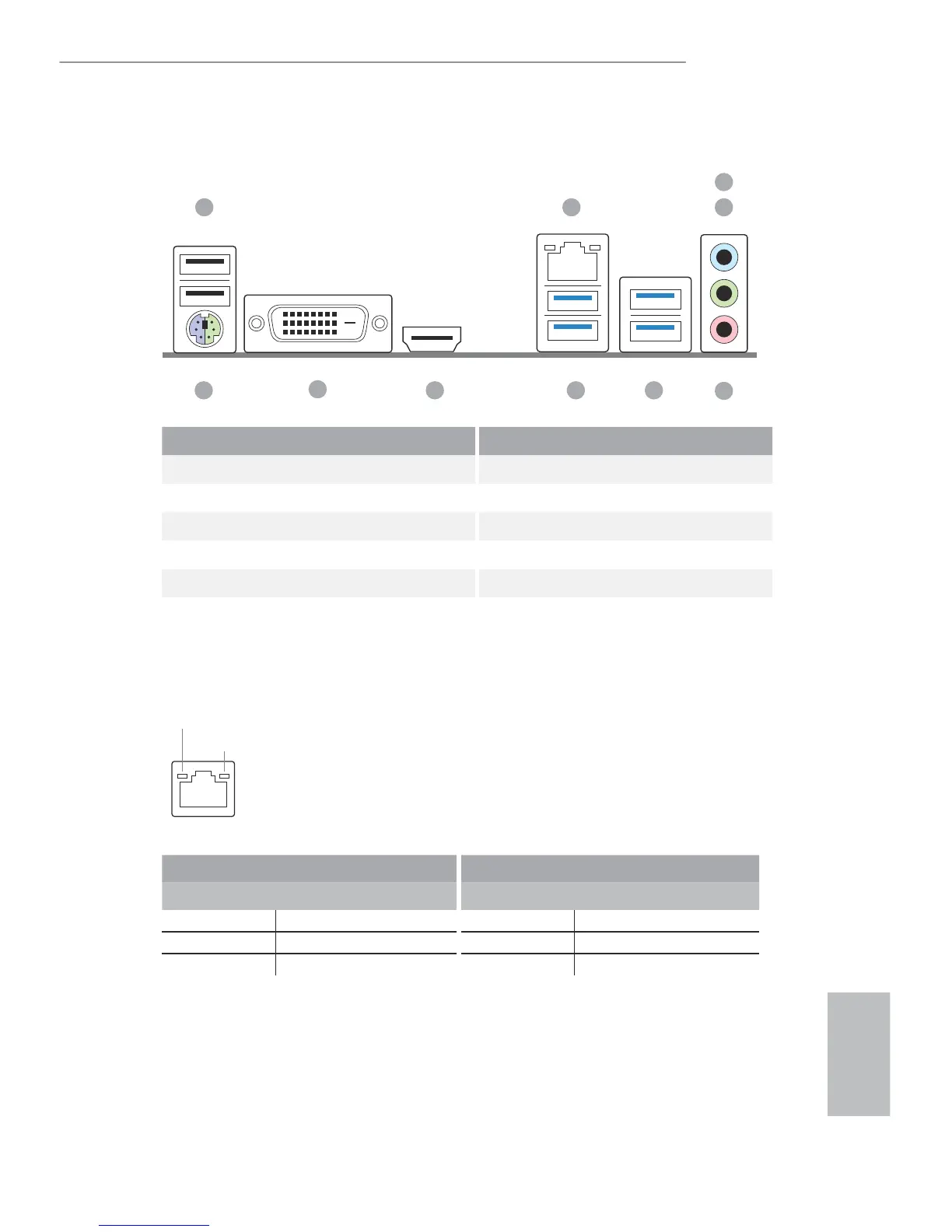

I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 6 USB 3.0 Ports (USB_56)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_34)
3 Line In (Light Blue)** 8 HDMI Port
4 Front Speaker (Lime)** 9 DVI-D Port
5 Microphone (Pink)** 10 PS/2 Mouse/Keyboard Port
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
6710
9
5
4
3
8
1 2
To Next Page
