B360M Pro4

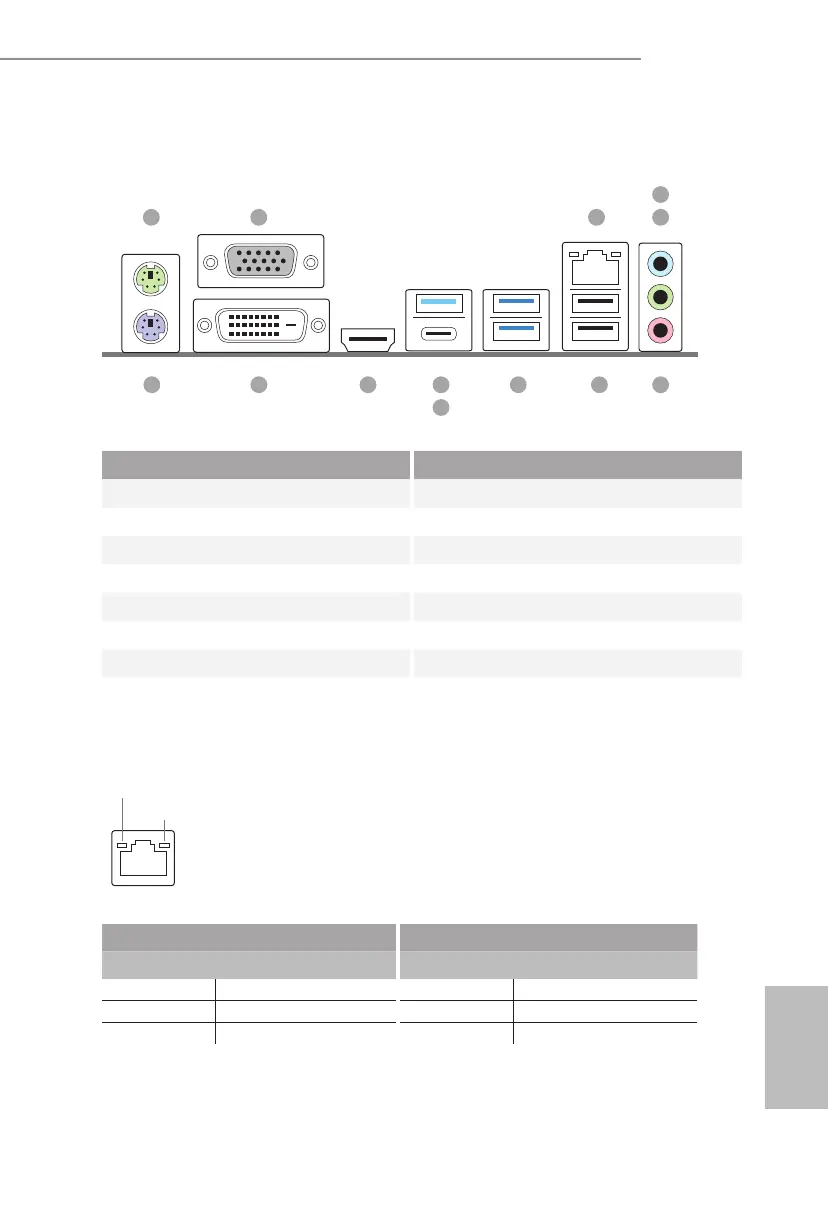

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 8 USB 3.1 Gen1 Ports (USB3_3_4)
2 D-Sub Port 9 USB 3.1 Gen2 Type-A Port (USB3_TA_1)
3 LAN RJ-45 Port* 10 USB 3.1 Gen2 Type-C Port (USB3_TC_1)
4 Line In (Light Blue)** 11 HDMI Port
5 Front Speaker (Lime)** 12 DVI-D Port
6 Microphone (Pink)** 13 PS/2 Keyboard Port
7 USB 2.0 Ports (USB12)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
