ASROCK B650E PG Riptide WiFi User Manual

English
8

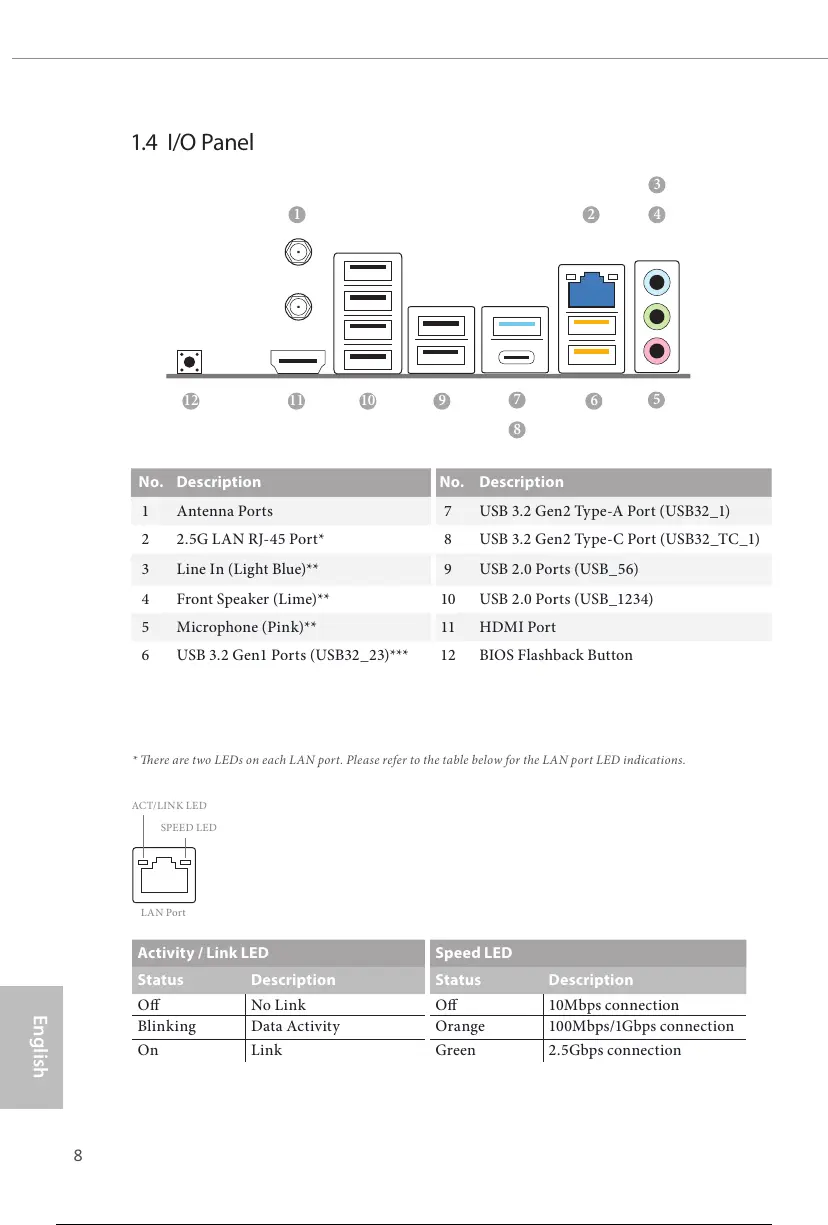

1.4 I/O Panel
No. Description No. Description
1 Antenna Ports 7 USB 3.2 Gen2 Type-A Port (USB32_1)
2 2.5G LAN RJ-45 Port* 8 USB 3.2 Gen2 Type-C Port (USB32_TC_1)
3 Line In (Light Blue)** 9 USB 2.0 Ports (USB_56)
4 Front Speaker (Lime)** 10 USB 2.0 Ports (USB_1234)
5 Microphone (Pink)** 11 HDMI Port
6 USB 3.2 Gen1 Ports (USB32_23)*** 12 BIOS Flashback Button
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
1112
5
3
4
10 6
2
7
8
9
1
13 / 73

ASROCK B650E PG Riptide WiFi Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7, AMD Ryzen 9 7th Gen, AMD Ryzen 5
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
USB 2.0 connectors	2
Number of SATA III connectors	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Killer E3100G
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
