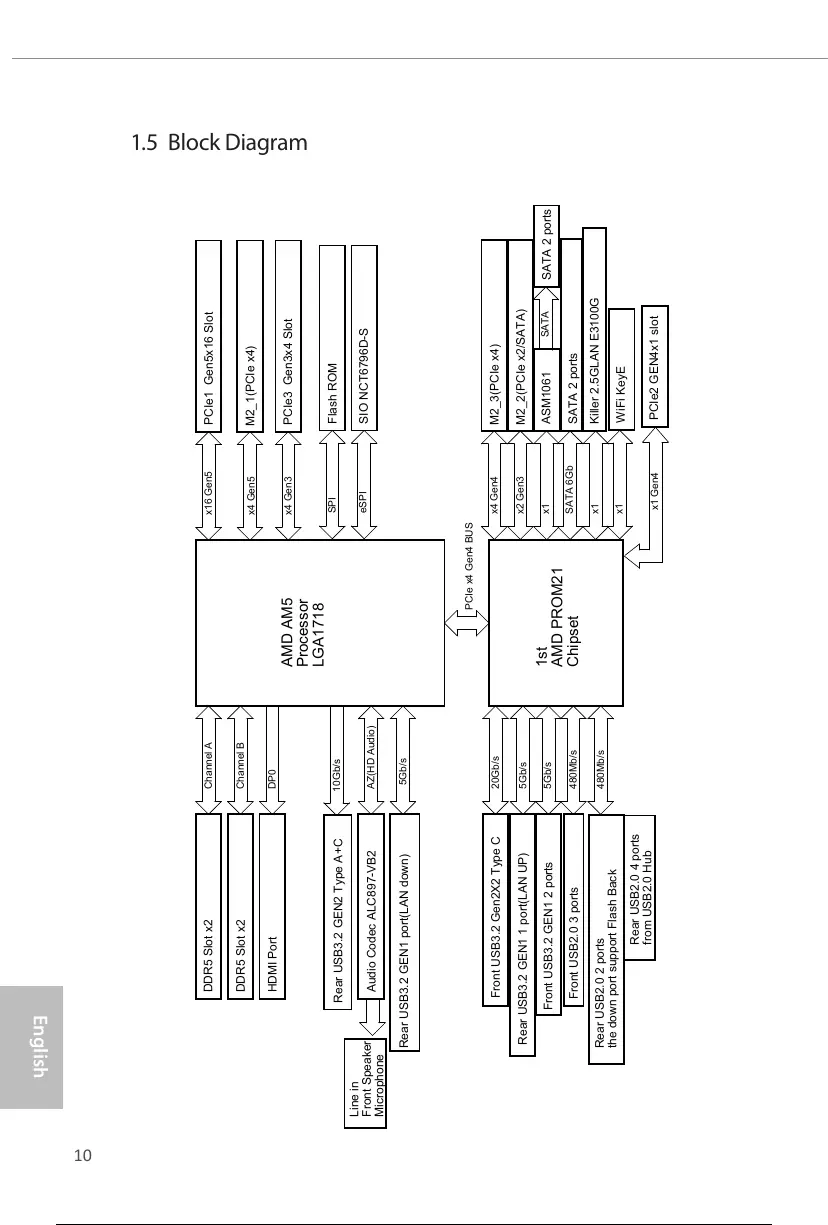

1.5 Block Diagram
5Gb/s
Rear USB3.2 GEN1 port(LAN down)
x4 Gen3
PCIe3 Gen3x4 Slot
M2_3(PCIe x4)
x4 Gen4
1st AMD PROM21 Chipset AMD AM5 Processor LGA1718
Front USB3.2 Gen2X2 Type C
20Gb/s DP0
HDMI Port
Front USB3.2 GEN1 2 ports
SATA 6Gb
SATA 2 ports
Front USB2.0 3 ports
480Mb/s
Line in
Front Speaker Microphone
Rear USB2.0 2 ports the down port support Flash Back
480Mb/s
SPI eSPI
SIO NCT6796D-S Flash ROM
AZ(HD Audio)
Audio Codec ALC897-VB2
10Gb/s
Rear USB3.2 GEN2 Type A+C
M2_2(PCIe x2/SATA)
x2 Gen3 x1
ASM1061
SATA
SATA 2 ports
Rear USB2.0 4 ports from USB2.0 Hub
Channel B Channel A
DDR5 Slot x2
DDR5 Slot x2
5Gb/s
Rear USB3.2 GEN1 1 port(LAN UP)
5Gb/s
PCIe1 Gen5x16 Slot
x4 Gen5
M2_1(PCIe x4)
PCIe x4 Gen4 BUS
x16 Gen5
x1
Killer 2.5GLAN E3100G
WiFi KeyE
x1
x1 Gen4
PCIe2 GEN4x1 slot
15 / 73

ASROCK B650E PG Riptide WiFi Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7, AMD Ryzen 9 7th Gen, AMD Ryzen 5
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
USB 2.0 connectors	2
Number of SATA III connectors	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Killer E3100G
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
