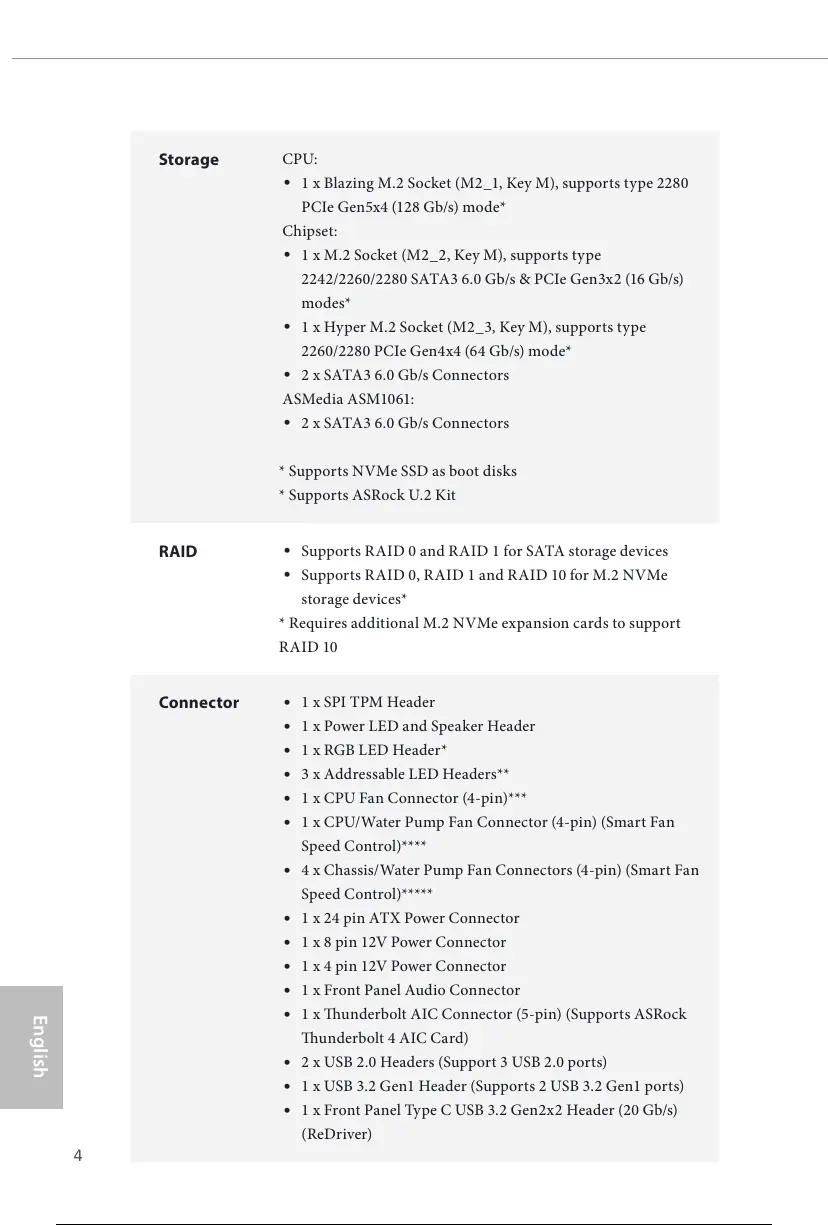

Storage
CPU:
•
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280
PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
•
1 x M.2 Socket (M2_2, Key M), supports type
2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s)
modes*
•
1 x Hyper M.2 Socket (M2_3, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
•
2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
•
2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
RAID
•
Supports RAID 0 and RAID 1 for SATA storage devices
•
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe
storage devices*
* Requires additional M.2 NVMe expansion cards to support
RAID 10
Connector
•
1 x SPI TPM Header
•
1 x Power LED and Speaker Header
•
1 x RGB LED Header*
•
3 x Addressable LED Headers**
•
1 x CPU Fan Connector (4-pin)***
•
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
•
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
•
1 x 24 pin ATX Power Connector
•
1 x 8 pin 12V Power Connector
•
1 x 4 pin 12V Power Connector
•
1 x Front Panel Audio Connector
•
1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
•
2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
•
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
•
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
(ReDriver)
9 / 73

ASROCK B650E PG Riptide WiFi Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7, AMD Ryzen 9 7th Gen, AMD Ryzen 5
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
USB 2.0 connectors	2
Number of SATA III connectors	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Killer E3100G
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
