ASROCK B75M-ITX User Manual

52

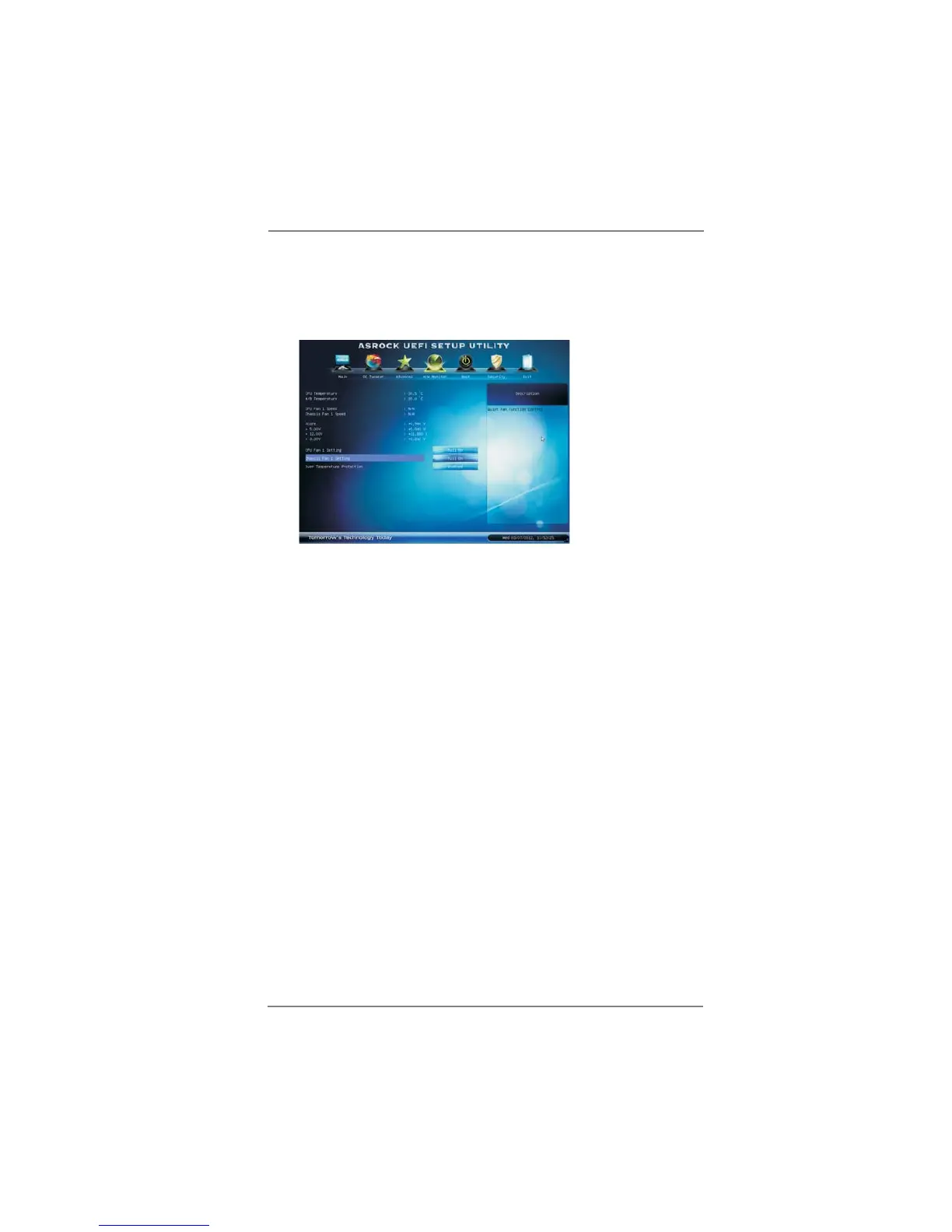

3.5 Hardware Health Event Monitoring Screen
In this section, it allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, CPU
fan speed, chassis fan speed, and the critical voltage.
CPU Fan 1 Setting
This allows you to set CPU fan 1’s speed. Con guration options: [Full On]
and [Automatic Mode]. The default value is [Full On].
Chassis Fan 1 Setting
This allows you to set chassis fan 1’s speed. Con guration options: [Full
On] and [Automatic Mode]. The default value is [Full On].
Over Temperature Protection
Use this to enable or disable Over Temperature Protection. The default
value is [Enabled].

ASROCK B75M-ITX Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	3
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	5
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Compatible operating systems	Windows 7, Vista, XP 32/64-bit
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1760 MB
Parallel processing technology support	Not supported
PCI Express slots version	3.0
PCI Express configurations	1x16
LAN controller	Realtek RTL8111E
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
