30

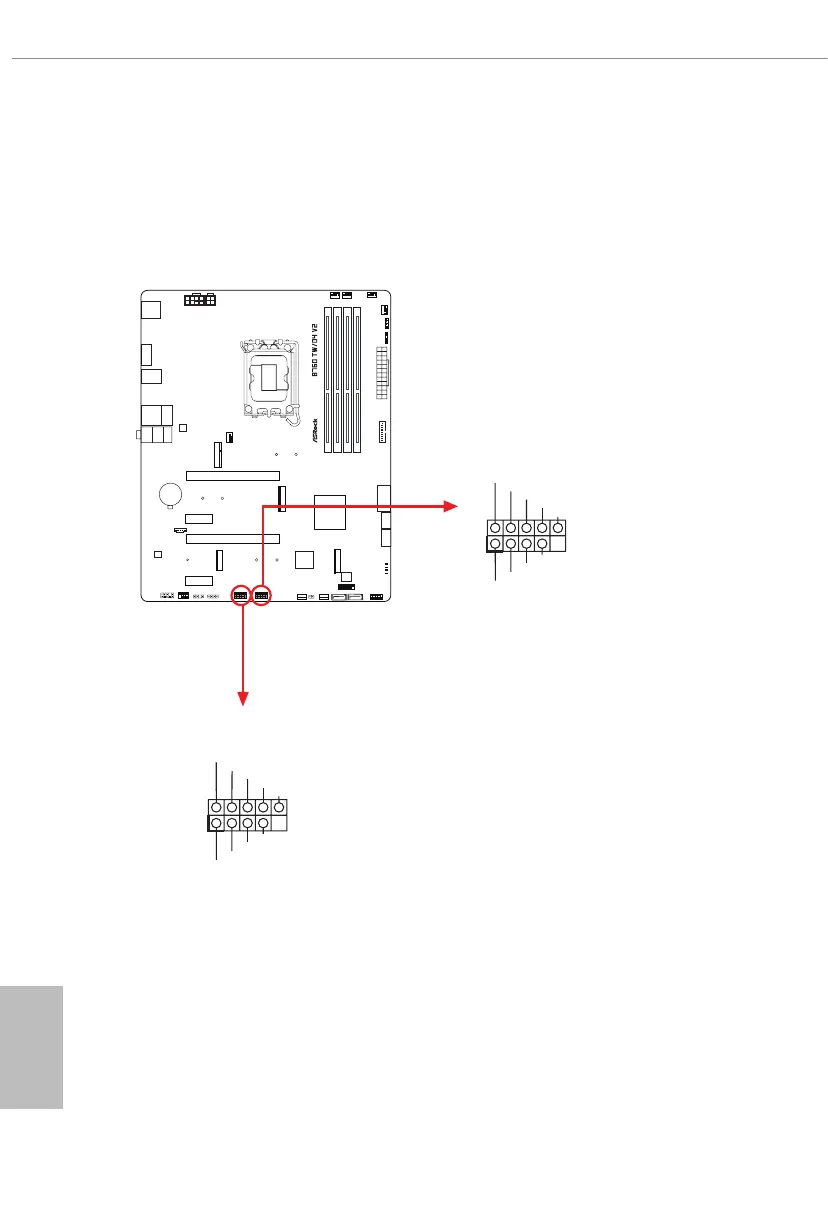

USB 2.0 Headers
(9-pin USB_3_4) (see p.6, No. 24)
(9-pin USB_5_6) (see p.6, No. 25)
ere are two headers on this motherboard. Each USB 2.0 header can support two
ports.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB_3_4
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB_5_6
