ASROCK B85M Specifications

B85M
1
English

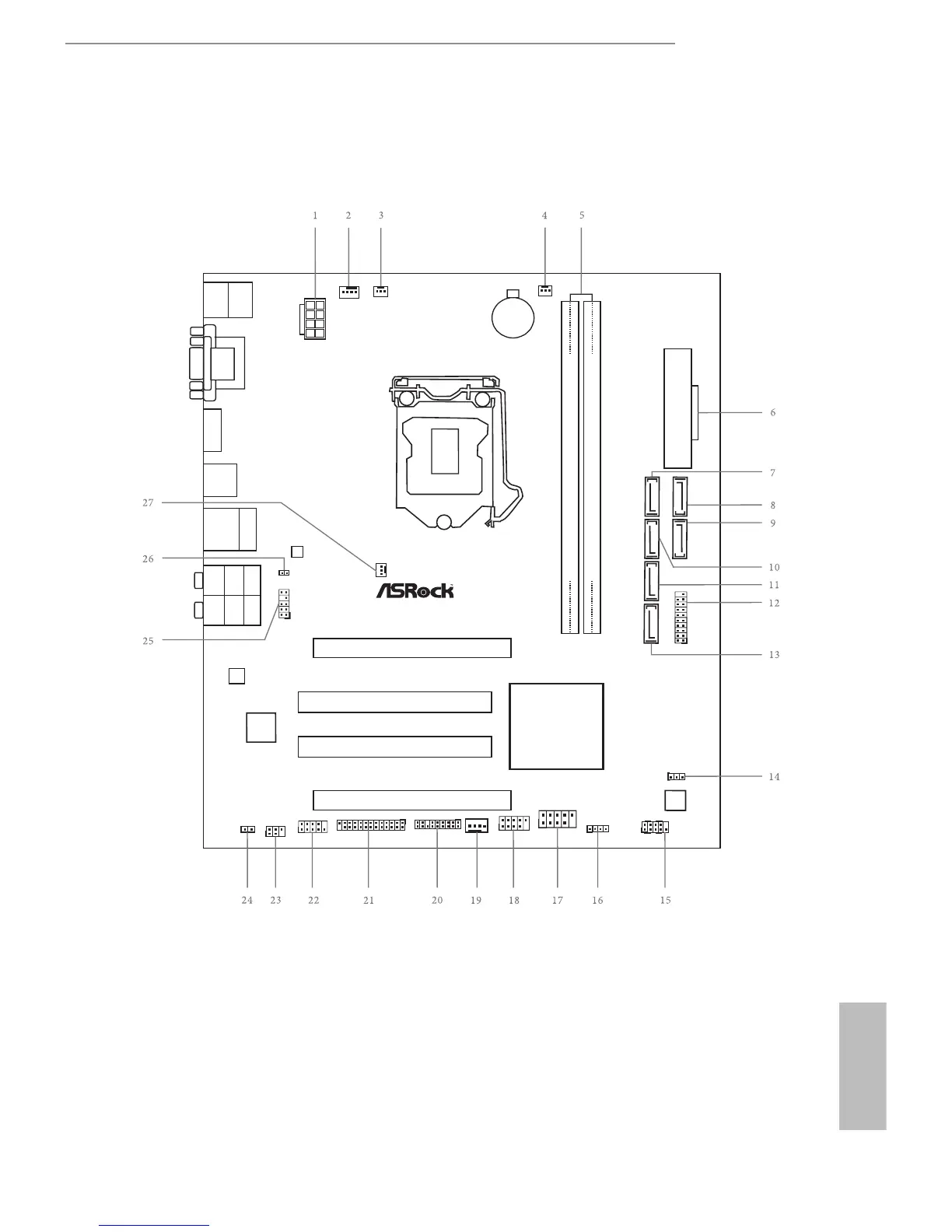

Motherboard Layout
Intel
B85
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
ATX12V1
CMOS
Batter y
Super
I/O
USB 2. 0
T: USB0
B: USB 1
PS2
Keyboard
ATXPWR1
LAN
Top:
RJ-45
USB 3.0
T: USB0
B: USB1
Top:
Cent ra l/Bass
Cent er :
REAR SPK
Top:
LINE IN
Cent er :
FRON T
Bott om :
Opti ca l
SPDI F
Bott om :
MIC IN
CLRCMO S 1
1
1
SPE AKE R1
IR1
1
HDL ED RESE T
PLE D P WRB TN
PANE L1
1
USB8_9
1
USB6 _7
1
COM 1
1
1
HD_AUDI O1
B85M
SATA_ 2 SATA_ 3 SATA_ 1 SATA_ 5
CHA_FAN1
CHA _FA N2
PCI1
RoHS
CPU_FA N1
CPU _FA N2
64Mb
BIOS
HDMI1
VGA1
DVI1
PCI2
USB 2.0
T: USB4
B: USB5
Aud io
COD EC
1
SPD IF1 _OUT 1
PCIE1
XFas t US B
XFas t RA M
XFas t LA N
Front U SB 3.0
PCIE2
PWR _FA N1
1
TPM S1
1
1
LPT1
CI1
1
USB3_2_3
SATA_ 0 SATA_ 4

ASROCK B85M Specifications

General

Form Factor	Micro ATX
Chipset	Intel B85
Socket	LGA 1150
Maximum Memory	32GB
Memory Slots	4
Memory Standard	DDR3
PCIe Slots	1 x PCIe 3.0 x16
SATA Ports	4 x SATA3 6Gb/s, 2 x SATA2 3Gb/s
USB Ports	8 x USB 2.0
LAN	Realtek RTL8111GR
Video Outputs	1 x DVI-D, 1 x D-Sub
