ASROCK B85M User Manual

86
English

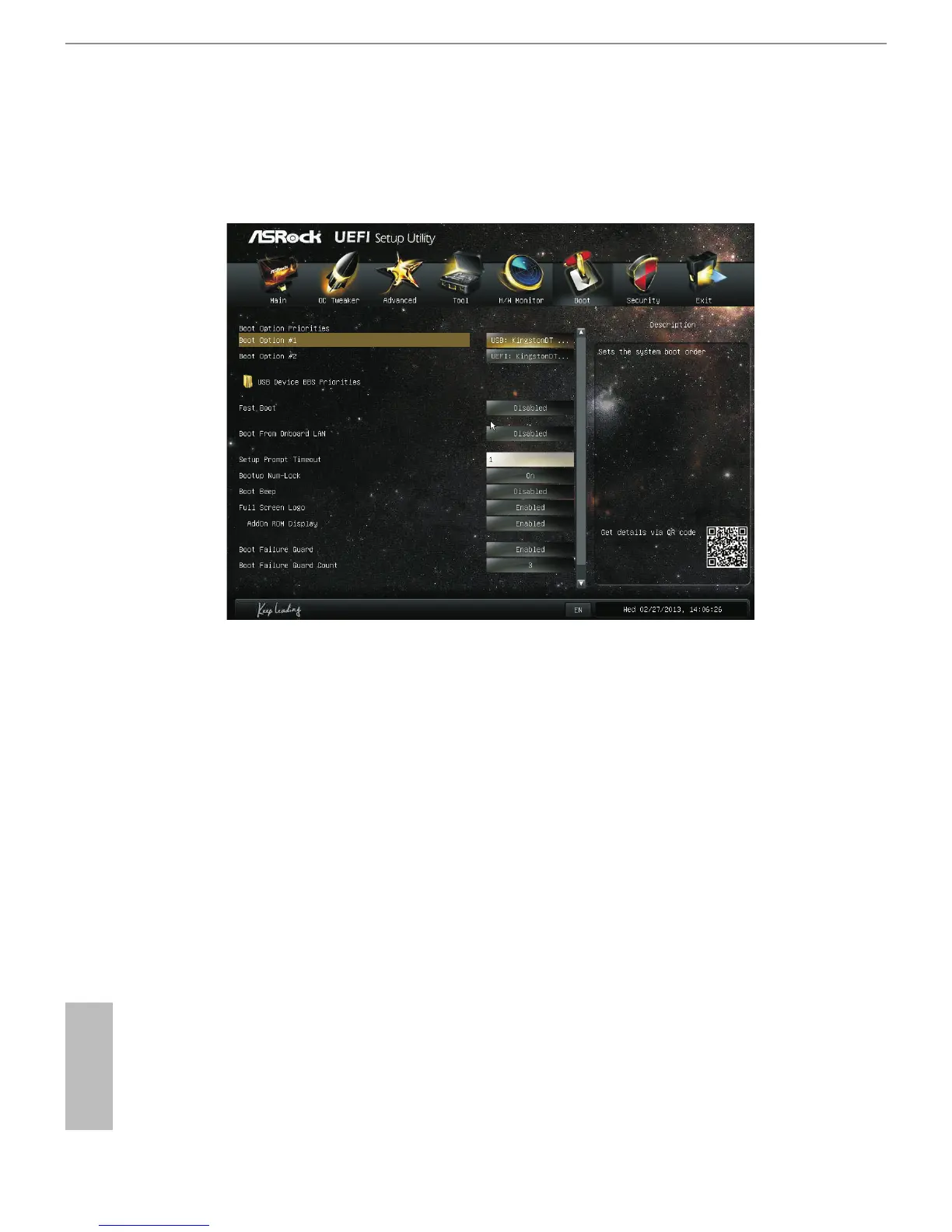

4.7 Boot Screen
is section displays the available devices on your system for you to congure the
boot settings and the boot priority.
Fast Boot
Fast Boot minimizes your computer's boot time. In fast mode you may not boot
from an USB storage device. Ultra Fast mode is only supported by Windows 8 and
the VBIOS must support UEFI GOP if you are using an external graphics card.
Please notice that Ultra Fast mode will boot so fast that the only way to enter this
UEFI Setup Utility is to Clear CMOS or run the Restart to UEFI utility in Windows.
Boot From Onboard LAN
Allow the system to be waked up by the onboard LAN.
Setup Prompt Timeout
Congure the number of seconds to wait for the setup hot key.
Bootup Num-Lock
Select whether Num Lock should be turned on or o when the system boots up.
Boot Beep
Select whether the Boot Beep should be turned on or o when the system boots up. Please
note that a buzzer is needed.

ASROCK B85M Specifications

General

Form Factor	Micro ATX
Chipset	Intel B85
Socket	LGA 1150
Maximum Memory	32GB
Memory Slots	4
Memory Standard	DDR3
PCIe Slots	1 x PCIe 3.0 x16
SATA Ports	4 x SATA3 6Gb/s, 2 x SATA2 3Gb/s
USB Ports	8 x USB 2.0
LAN	Realtek RTL8111GR
Video Outputs	1 x DVI-D, 1 x D-Sub
