ASROCK Fatal1ty 970 Performance/3.1 Series - Page 30

22
English

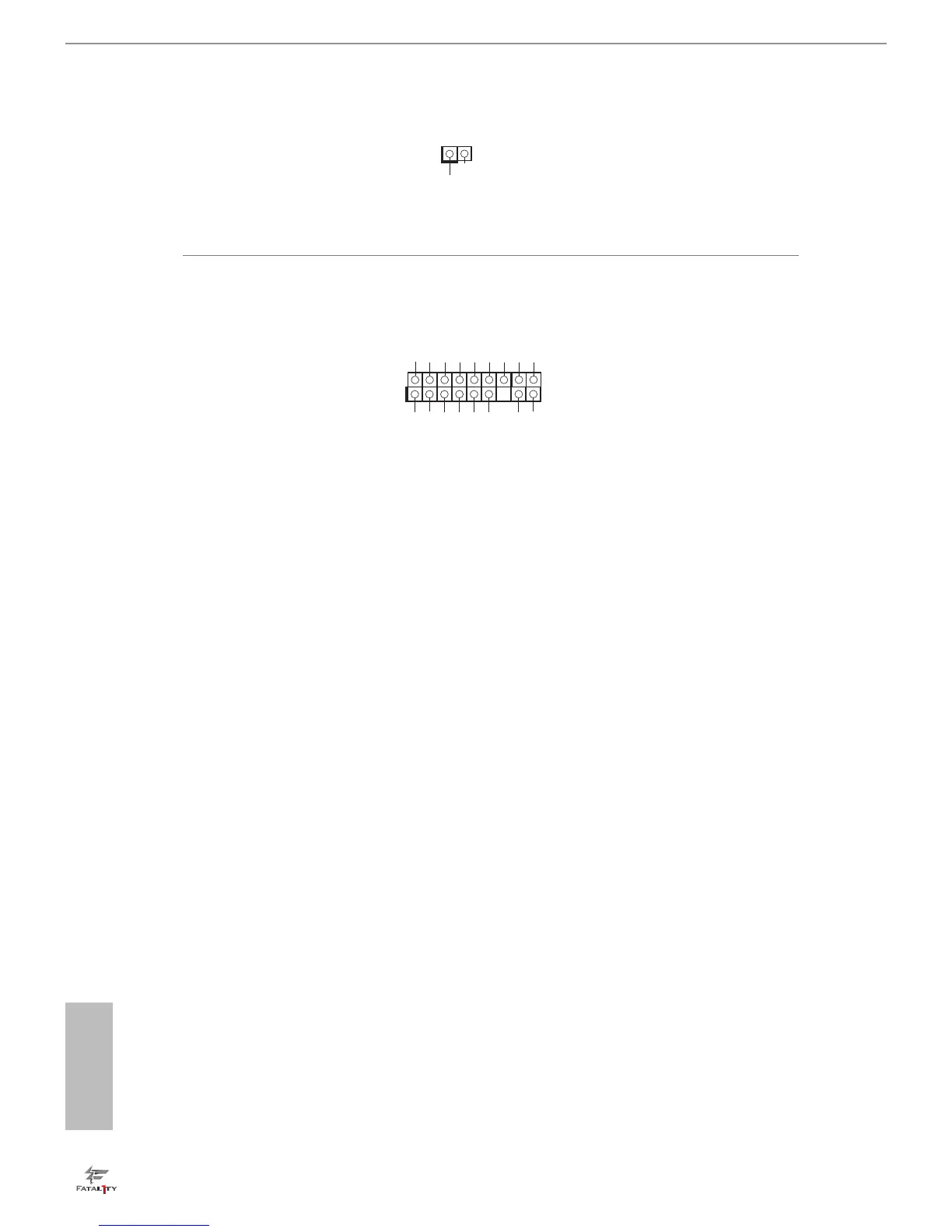

SPDIF Out Connector
(2-pin SPDIF_OUT1)
(see p.6, No. 28)
Please connect the
SPDIF_OUT connector of
a HDMI VGA card to this
header with a cable.
TPM Header
(17-pin TPMS1)
(see p.6, No. 22)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
SPDIFOUT
GND
1
1
GND SMB_DATA_MAIN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAIN
