ASROCK Fatal1ty 970 Performance/3.1 Series User Manual

54
English

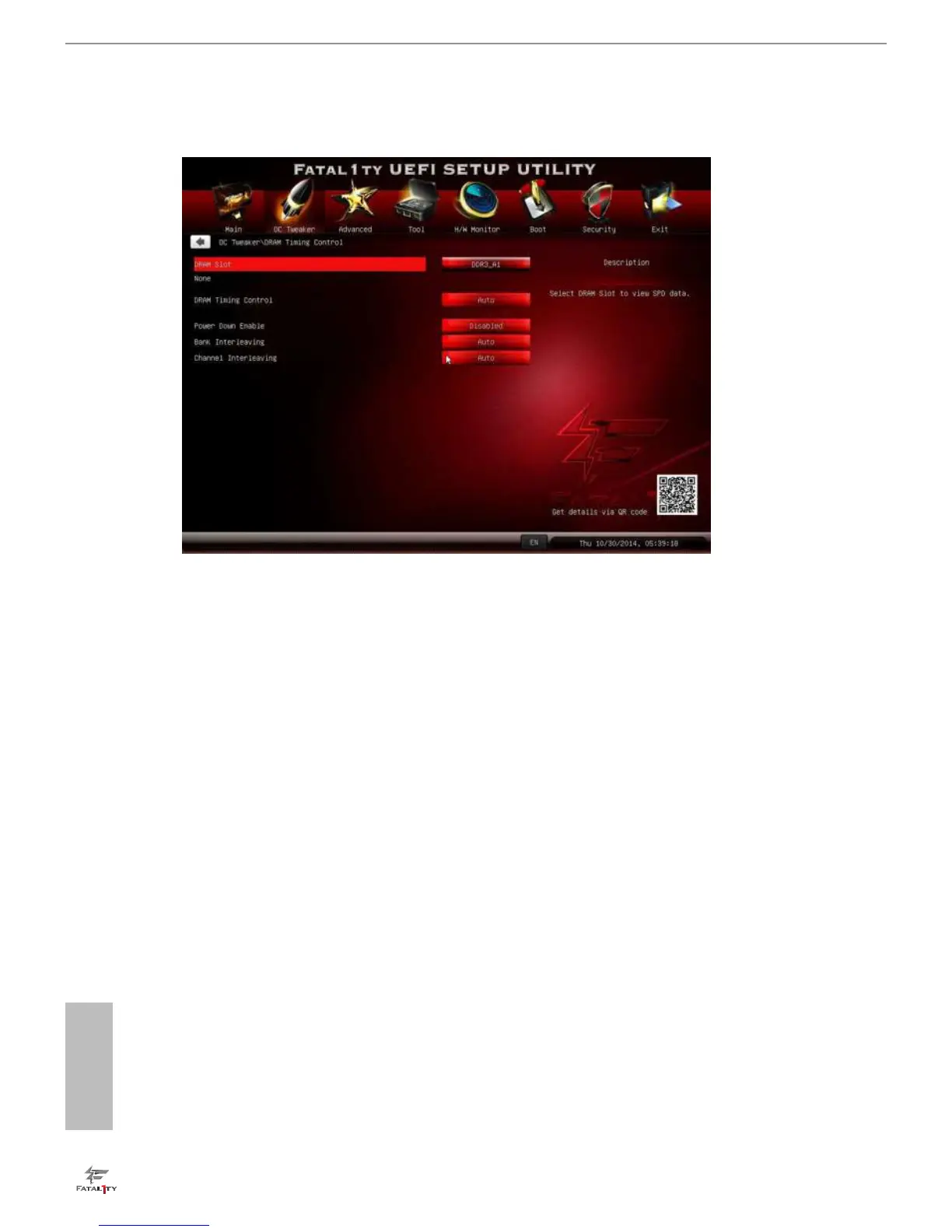

DRAM Timing Control
DRAM Slot
Use this item to view SPD data.
DRAM Timing Control
Use this item to control DRAM timing.
Power Down Enable
Use this item to enable or disable DDR power down mode.
Bank Interleaving
Interleaving allows memory accesses to be spread out over banks on the same node, or
accross nodes, decreasing access contention.
Channel Interleaving
It allows you to enable Channel Memory Interleaving. Conguration options:
[Disabled], [Auto]. e default value is [Auto].
Voltage Conguration
DRAM Voltage
Use this to select DRAM Voltage. e default value is [Auto].

ASROCK Fatal1ty 970 Performance/3.1 Series Specifications

General

CPU Socket	AM3+
Chipset	AMD 970 + SB950
Memory Slots	4 x DDR3 DIMM
Max Memory	64GB
Storage Interface	6 x SATA3 6.0 Gb/s
Form Factor	ATX
Expansion Slots	2 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
USB Ports	8 x USB 2.0
Audio	Realtek ALC1150
LAN	Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111GR)
