Fatal1ty P67 Performance Series Motherboard
23
English

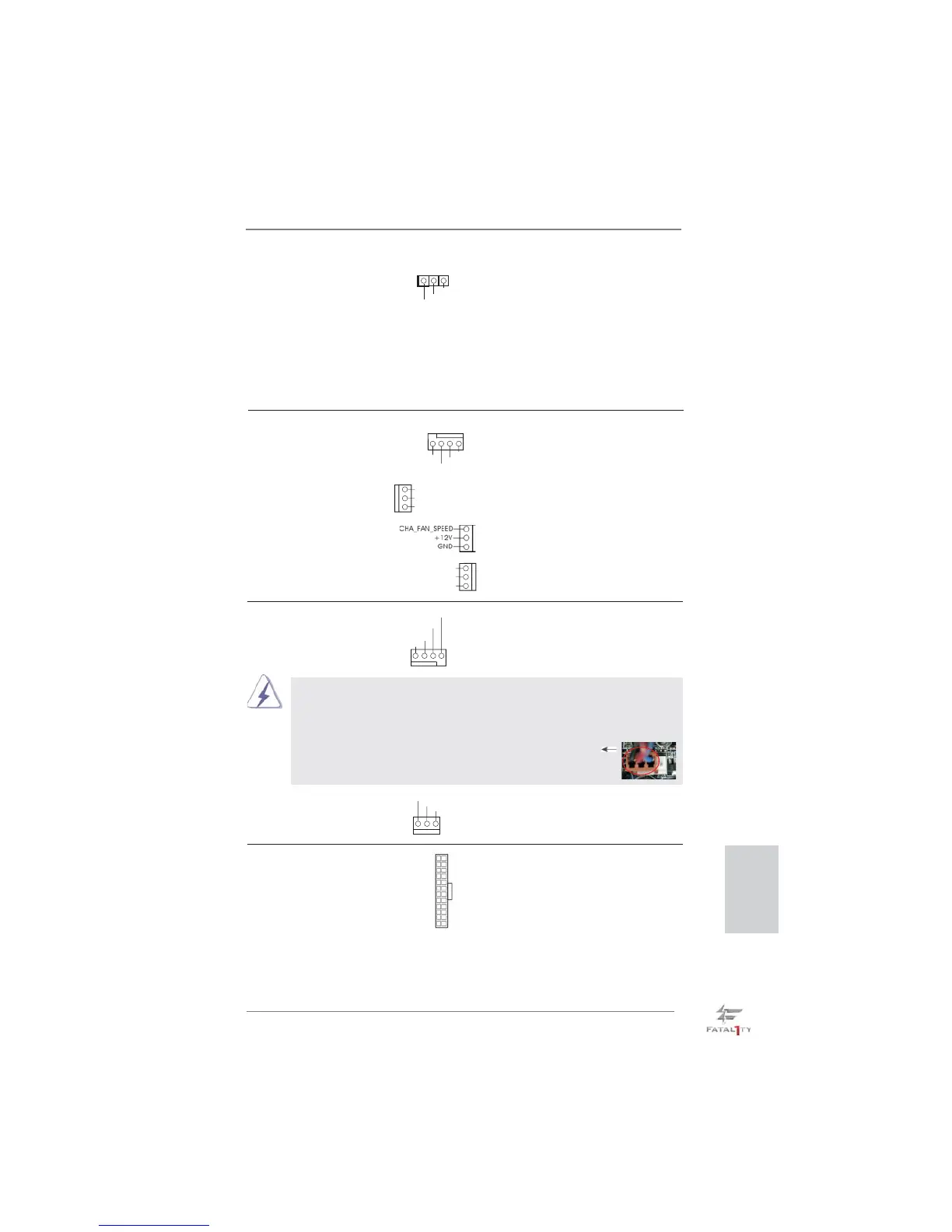

Power LED Header Please connect the chassis
(3-pin PLED1)
power LED to this header to
(see p.4 No. 12)
indicate system power status.
The LED is on when the system
is operating. The LED keeps
blinking in S1 state. The LED is
off in S3/S4 state or S5 state
(power off).
1
PLED+
PLED+
PLED-
Chassis and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1)
to the fan connectors and
(see p.4 No. 28)
match the black wire to the
ground pin.
(3-pin CHA_FAN2)
(see p.4 No. 10)
(3-pin CHA_FAN3)
(see p.4 No. 39)
(3-pin PWR_FAN1)
(see p.4 No. 40)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
CHA_FAN2_PWR
CHA_FAN_SPEED
GND
+12V
PWR_FAN_SPEED
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.4 No. 3)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
(3-pin CPU_FAN2)
(see p.4 No. 2)
GND
+12V
CPU_FAN_SPEED
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
supply to this connector.
(see p.4 No. 7)
12
1
24
13

ASROCK FATAL1TY P67 PERFORMANCE - ANNEXE 955 Specifications

General

CPU Socket Type	LGA 1155
Chipset	Intel P67
Maximum Memory Supported	32GB
PCI Express 2.0 x1	2
SATA 3Gb/s	4
LAN	Gigabit LAN
Form Factor	ATX
Memory Slots	4
Memory Standard	DDR3
SATA 6Gb/s	2
USB 2.0 Ports	8
USB 3.0 Ports	2
