24
Fatal1ty P67 Performance Series Motherboard
English

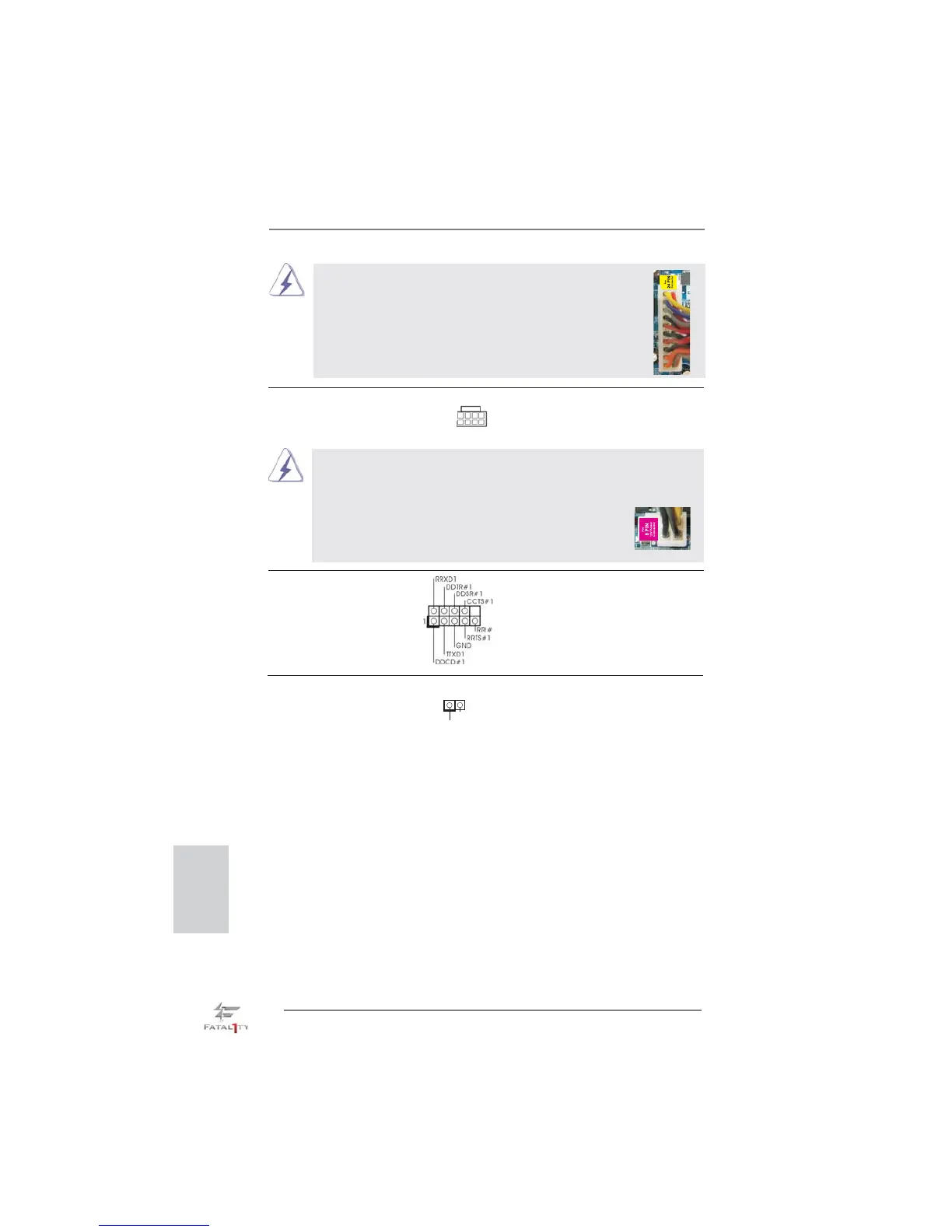

20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your
power supply along with Pin 1 and Pin 13.
12
1
24
13
ATX 12V Power Connector Please connect an ATX 12V
(8-pin ATX12V1)
power supply to this connector.
(see p.4 No. 1)
4-Pin ATX 12V Power Supply Installation
Though this motherboard provides 8-pin ATX 12V power connector, it can still work
if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power
supply, please plug your power supply along with Pin 1 and Pin 5.
8 5
4 1
8 5
4 1
HDMI_SPDIF Header HDMI_SPDIF header, providing
(2-pin HDMI_SPDIF1)
SPDIF audio output to HDMI
(see p.4 No. 33)
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
SPDIFOUT
GND
1
Serial port Header This COM1 header supports a
(9-pin COM1)
serial port module.
(see p.4 No. 31)

ASROCK FATAL1TY P67 PERFORMANCE - ANNEXE 955 Specifications

General

CPU Socket Type	LGA 1155
Chipset	Intel P67
Maximum Memory Supported	32GB
PCI Express 2.0 x1	2
SATA 3Gb/s	4
LAN	Gigabit LAN
Form Factor	ATX
Memory Slots	4
Memory Standard	DDR3
SATA 6Gb/s	2
USB 2.0 Ports	8
USB 3.0 Ports	2
