Fatal1ty X399 Professional Gaming Series

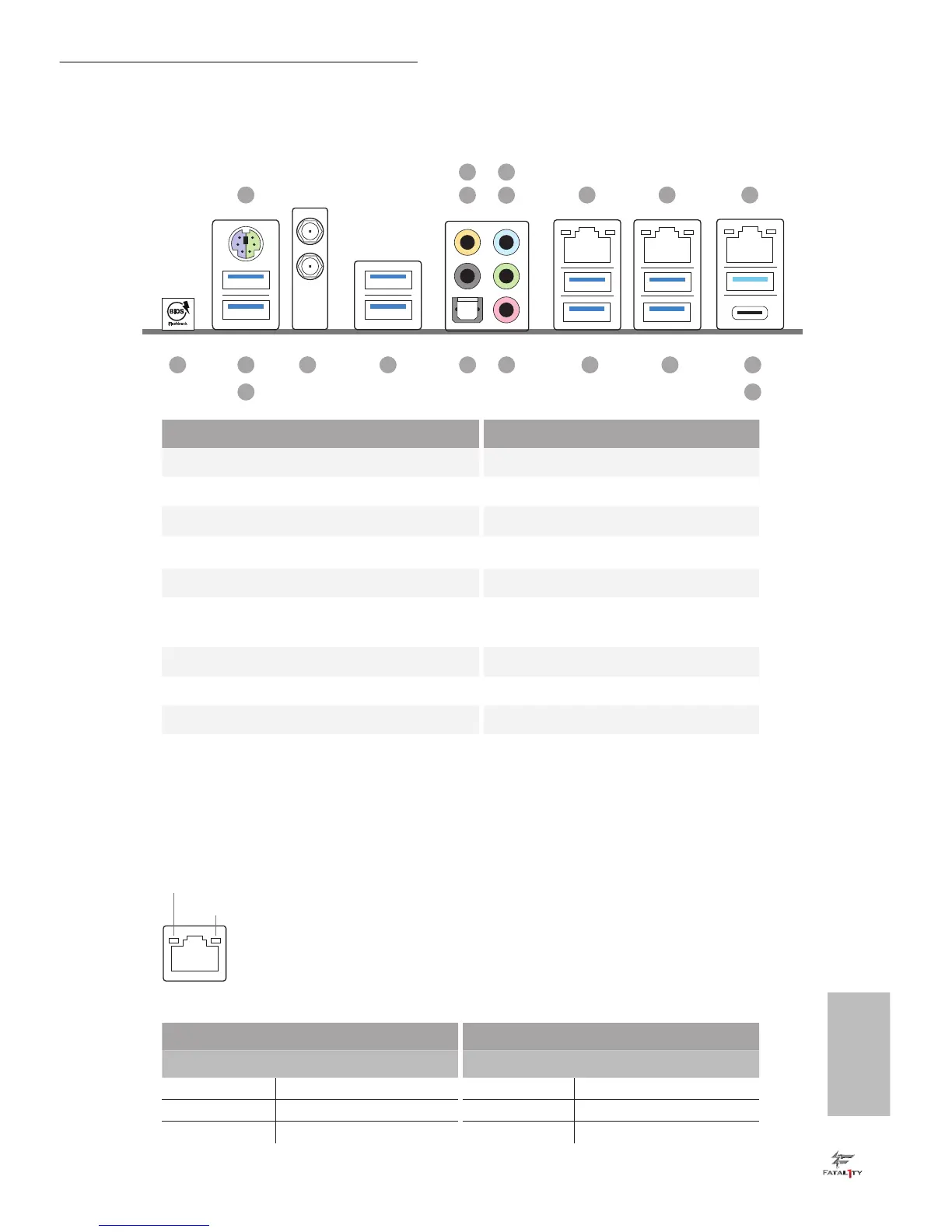

I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port (PS2_KB1) 11 USB 3.0 Ports (USB3_7_8)
2 Central / Bass (Orange) 12 USB 3.0 Ports (USB3_5_6)****
3 Rear Speaker (Black) 13 Microphone (Pink)
4 Line In (Light Blue) 14 Optical SPDIF Out Port
5 Front Speaker (Lime)*** 15 USB 3.0 Ports (USB3_3_4)
6
10 GLAN RJ-45 Port (AQUANTIA®
AQC107)**
16 Antenna Ports
7 LAN RJ-45 Port (Intel® I211AT)* 17 Fatal1ty Mouse Port (USB3_1)
8 LAN RJ-45 Port (Intel® I211AT)* 18 USB 3.0 Port (USB3_2)
9 USB 3.1 Type-A Port (USB31_TA_1) 19 BIOS Flashback Switch
10 USB 3.1 Type-C Port (USB31_TC_1)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link Orange 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
1314 9
10
16 111519
3
2
5
4
8
17
18
7
12
6
