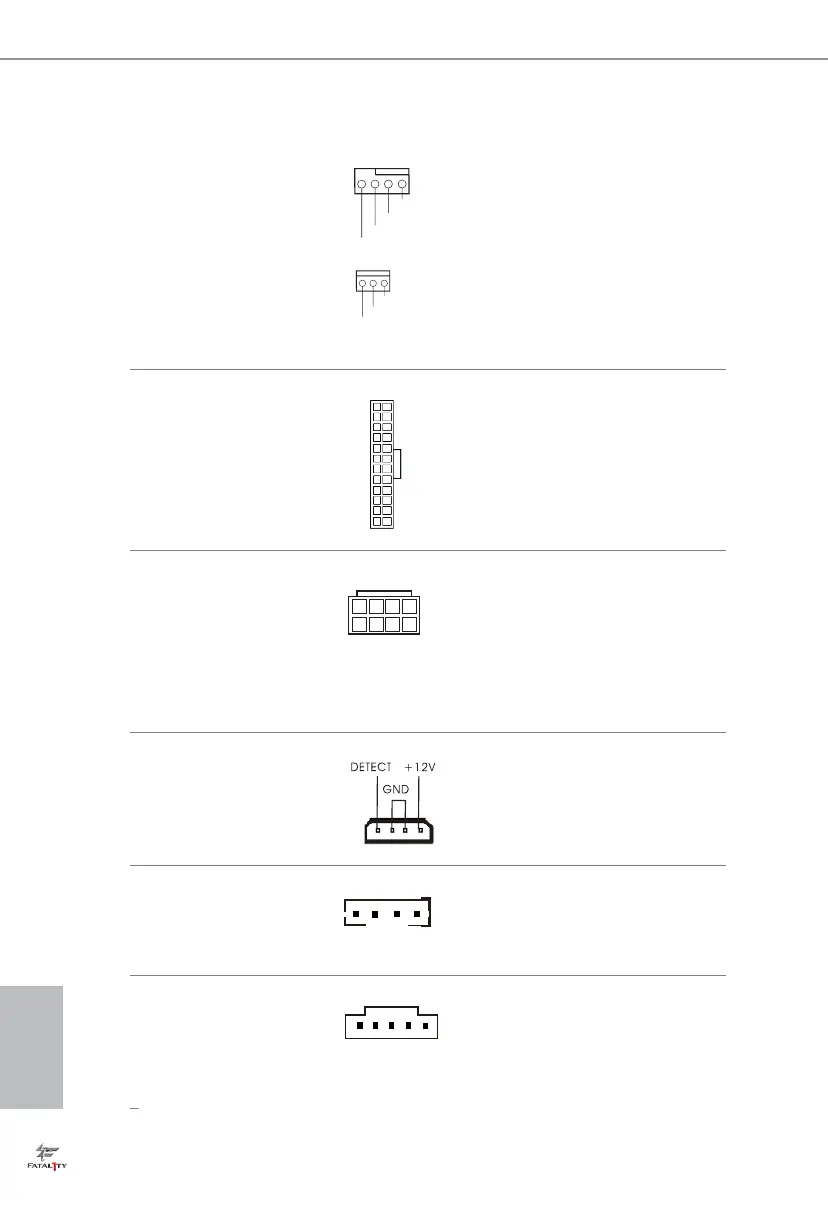

CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.1, No. 4)
(3-pin CPU_FAN2)
(see p.1, No. 6)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 9)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 3)
is motherboard pro-
vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
PCIe Power Connector
(4-pin PCIE _PWR1)
(see p.1, No. 34)
Please connect a 4 pin molex
power cable to this connector
when more than three graphics
cards are installed.
HDD Saver Connector
(4-pin SATA_PWR_1)
(see p.1, No. 22)
Please connect the HDD Saver
Cable to this connector to
manage the power state of HDD.
underbolt AIC
Connector
(5-pin TBT1)
(see p.1, No. 31)
Please connect a underbolt™
add-in card (AIC) to this
connector via the GPIO cable.
GND
CPU_FAN_SPEED
FAN_VOLTAGE
CPU_F
+12V
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
12
1
24
13
4
1
8
5
1
