ASROCK Fatal1ty X99X Killer Series Manual

English
Fatal1ty X99X Killer Series
1

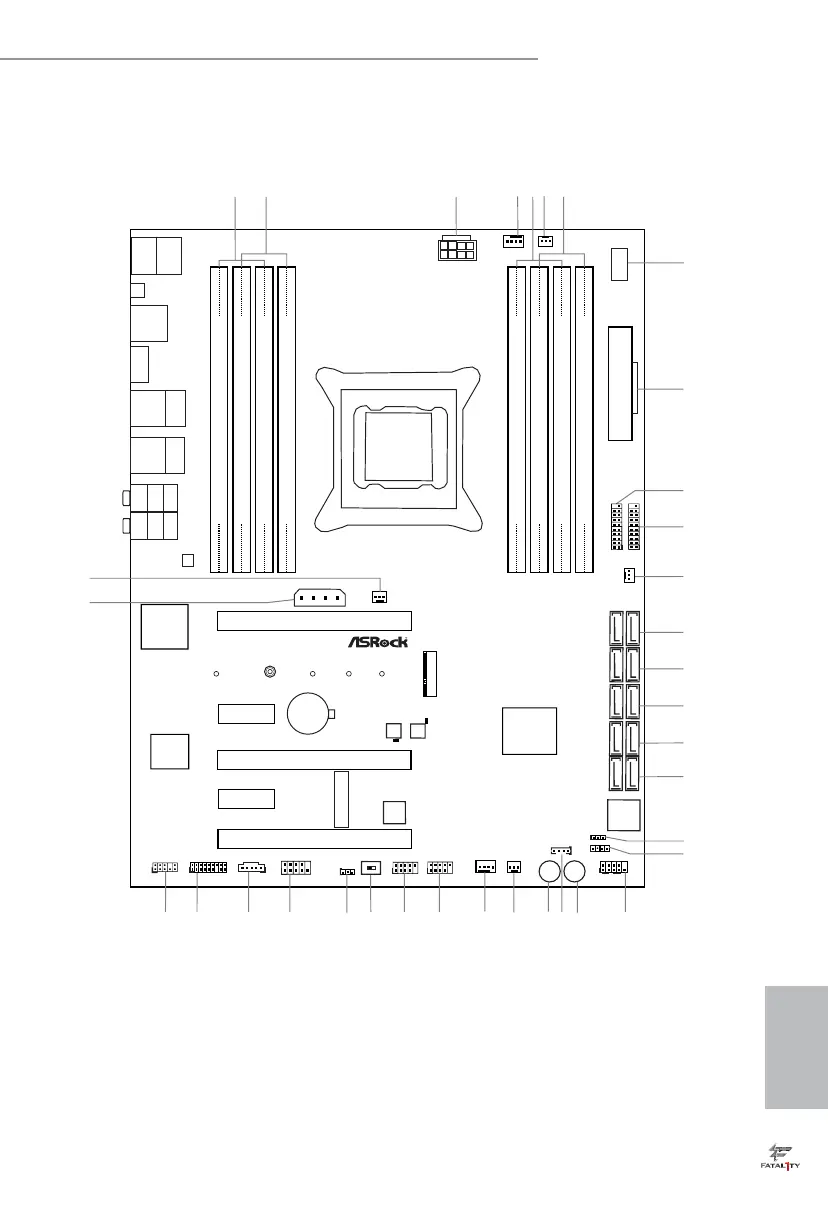

Motherboard Layout
Intel
X99
ATX 12V1
Supe r
I/O
ATXPWR1
1
USB 3_5_6
PCIE1
Top:
Central/Bass
Cen ter:
REA R SPK
Top:
LIN E IN
Cen ter:
FRO NT
Bot tom:
Opt ical
SPD IF
Bot tom:
MIC I N
PCIE3
PLED1
1
1
SPEAKER1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB5_6
1
1
USB3_4
COM1
1
1
HD_AUDIO1
X99X Killer
PCIE5
SSATA 3_2 _3
SATA3 _0_ 3
SATA3 _1_ 4
SATA3 _2_ 5
PCIE2
CHA_FAN1
CPU_FAN1
CPU_FAN2
PWR_FAN1
RoHS
9
8
11
10
13
14
15
16
17
22
26
273233
CLRC
BTN1
ESATA1
Top:
RJ-45
USB 3.0
T: USB3
B: USB4
SSATA 3_0 _1
3
4
6
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
2
1
28
35
Purity
Sound 2
TM
20
Ultra M.2
PCIe Gen3 x4
BIOS_B_LED
128Mb
BIOS
BIOS_B
128Mb
BIOS
BIOS_A
BIOS_A_LED
1
TPMS1
CMOS
Battery
CLRMOS1
1
M2
CT2CT3CT4CT5
T BT1
1
CHA_FAN2
CHA_FAN3
PCIE_PWR1
18
19
29
30
12
34
1
SATA_PWR_1
CT1
DDR4_D1 (64 bit, 288-pin module)
DDR4_D2 (64 bit, 288-pin module) DDR4_C1 (64 bit, 288-pin module)
DDR4_C2 (64 bit, 288-pin module)
7
5
USB 3.0
T: USB1
B: USB2
2011-3 Socket
Vertical
Type A US B
USB7
1
USB 3_7_8
Dr.
Debug
Reset Power
21
24
23
25
BIO S_SEL 1
AB
31
PCIE4
MINI_PCIE1
USB 2. 0
T: USB1
B: USB 2
PS2
Keyb oa rd
/Mou se
Top:
RJ-45
USB 3.0
T: USB1
B: USB2
Killer
E2200
FATAL TY1
LAN

ASROCK Fatal1ty X99X Killer Series Specifications

General

Chipset	Intel X99
CPU Socket	LGA 2011-v3
Max Memory	128GB
Form Factor	ATX
Memory Slots	8 x DIMM
Expansion Slots	3 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Multi-GPU Support	AMD 3-Way CrossFireX, NVIDIA Quad SLI
Storage Interface	10 x SATA3
USB Ports	4 x USB 3.0 ports (2 on the rear panel, 2 via header), 8 x USB 2.0 ports (4 on the rear panel, 4 via header)
Audio	Realtek ALC1150 Audio Codec
LAN	Killer E2200 Series Gigabit LAN
Memory Support	DDR4 2800(OC)/2400(OC)/2133
