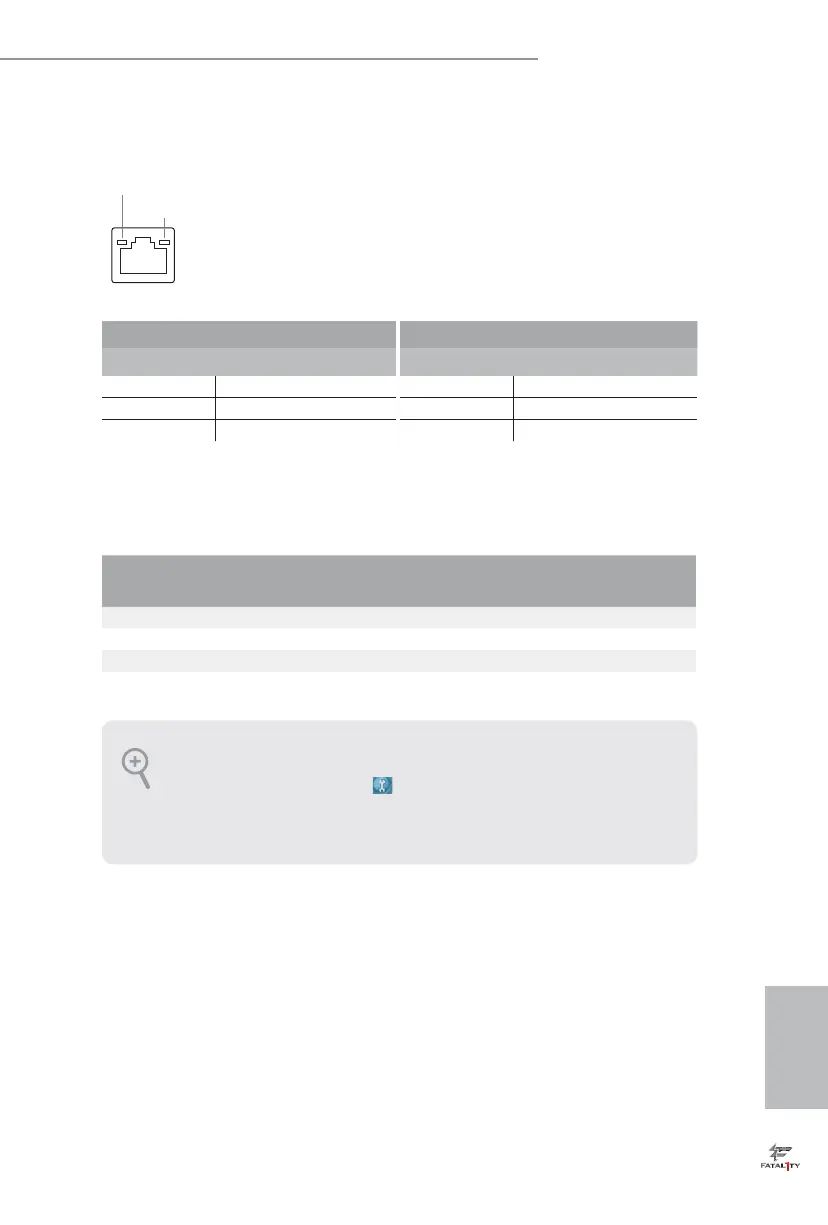

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 8)
Rear Speaker
(No. 6)
Central / Bass
(No. 5)
Line In
(No. 7)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
*** e eSATA connector supports SATA with cables within 1 meters. e SSATA3_3 connector is
shared with the eSATA port
To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your
system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and
click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select
“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,
or select “Realtek HDA Audio 2nd output” to use the front panel audio.
ACT/LINK LED
SPEED LED
LAN Port

ASROCK Fatal1ty X99X Killer Series Specifications

General

Chipset	Intel X99
CPU Socket	LGA 2011-v3
Max Memory	128GB
Form Factor	ATX
Memory Slots	8 x DIMM
Expansion Slots	3 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Multi-GPU Support	AMD 3-Way CrossFireX, NVIDIA Quad SLI
Storage Interface	10 x SATA3
USB Ports	4 x USB 3.0 ports (2 on the rear panel, 2 via header), 8 x USB 2.0 ports (4 on the rear panel, 4 via header)
Audio	Realtek ALC1150 Audio Codec
LAN	Killer E2200 Series Gigabit LAN
Memory Support	DDR4 2800(OC)/2400(OC)/2133
