ASROCK Fatal1ty Z97 User Manual

132 133
English
Fatal1ty Z97 Professional Series

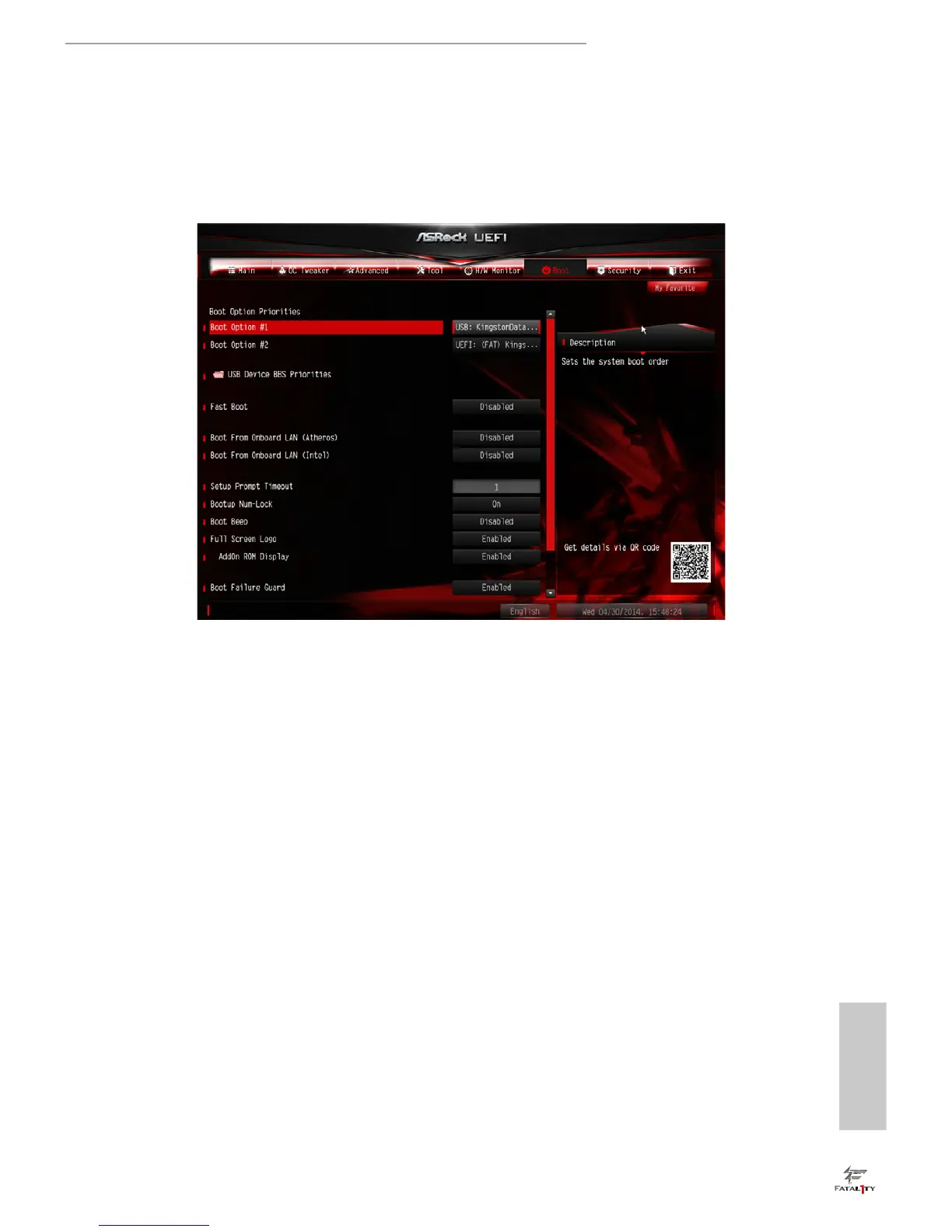

4.7 Boot Screen
is section displays the available devices on your system for you to congure the
boot settings and the boot priority.
Fast Boot
Fast Boot minimizes your computer's boot time. In fast mode you may not boot
from an USB storage device. Ultra Fast mode is only supported by Windows 8.1/8
and the VBIOS must support UEFI GOP if you are using an external graphics card.
Please notice that Ultra Fast mode will boot so fast that the only way to enter this
UEFI Setup Utility is to Clear CMOS or run the Restart to UEFI utility in Windows.
Boot From Onboard LAN (Intel)
Allow the system to be waked up by the onboard LAN (Intel® I218V).
Boot From Onboard LAN (Atheros)
Allow the system to be waked up by the onboard LAN (Qualcomm® Atheros®
Killer
TM
E2200 Series ).
Setup Prompt Timeout
Congure the number of seconds to wait for the setup hot key.
Bootup Num-Lock
Select whether Num Lock should be turned on or o when the system boots up.

ASROCK Fatal1ty Z97 Specifications

General

Chipset	Intel Z97
Form Factor	ATX
Memory Slots	4 x 240-pin
Max Memory	32GB
Memory Standard	DDR3
CPU Socket Type	LGA 1150
Audio	Realtek ALC1150
LAN	Intel I218V
Memory Speed	1600/1333
PCI Express 3.0 x16	2 x PCI Express 3.0 x16
PCI Express 2.0 x1	2 x PCI Express 2.0 x1
SATA 6Gb/s	6 x SATA 6Gb/s
M.2 Slot	1 x M.2
USB 3.0 Ports	6 x USB 3.0
USB 2.0 Ports	8 x USB 2.0
RAID Support	RAID 0, RAID 1, RAID 5, RAID 10
BIOS	64Mb AMI UEFI Legal BIOS
Multi-GPU Support	NVIDIA Quad SLI, AMD CrossFireX
SATA Express	1 x SATA Express
