Fatal1ty Z97 Professional Series

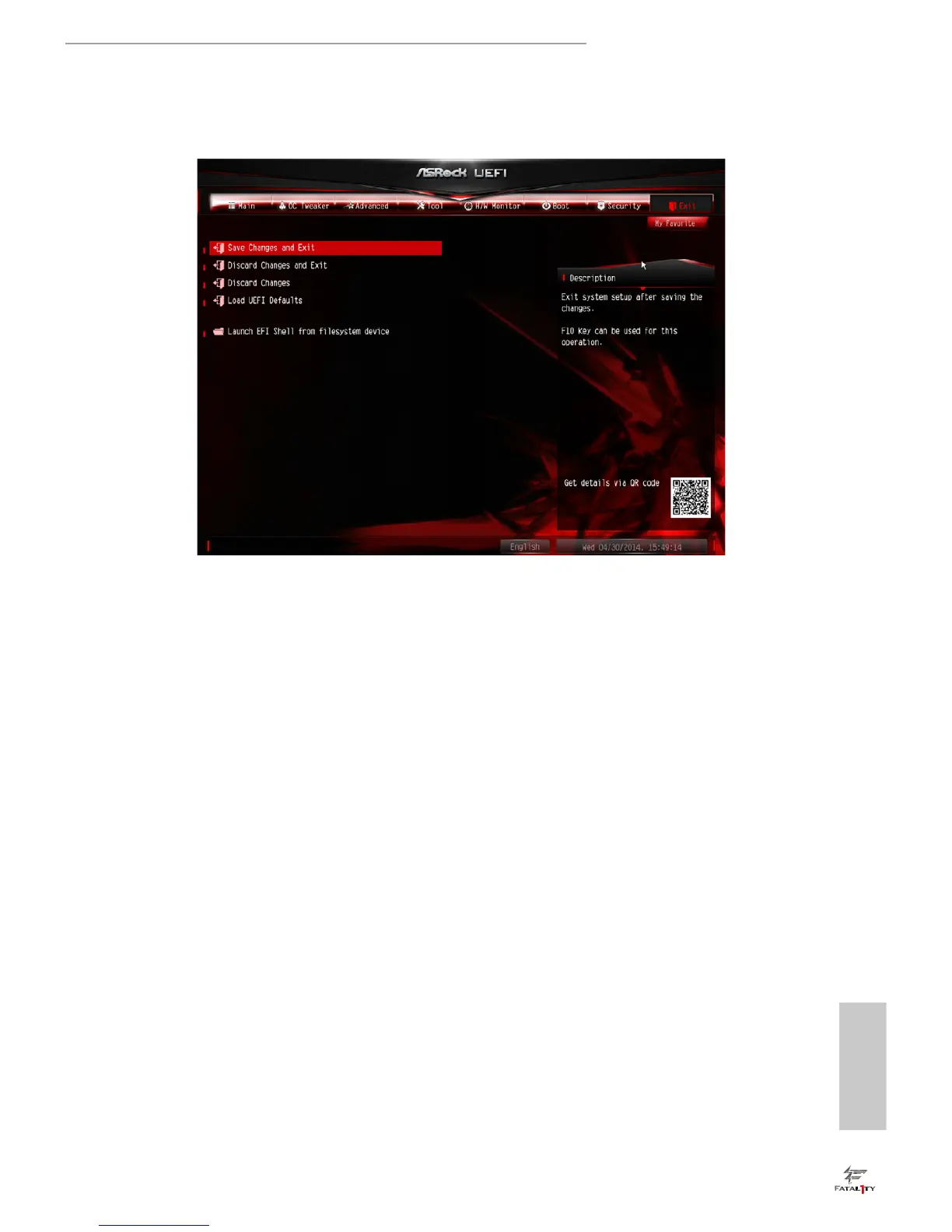

4.9 Exit Screen
Save Changes and Exit
When you select this option the following message, “Save conguration changes
and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP
UTILITY.
Discard Changes and Exit
When you select this option the following message, “Discard changes and exit
setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving
any changes.
Discard Changes
When you select this option the following message, “Discard changes?” will pop
out. Select [OK] to discard all changes.
Load UEFI Defaults
Load UEFI default values for all options. e F9 key can be used for this operation.
Launch EFI Shell from lesystem device
Copy shellx64.e to the root directory to launch EFI Shell.

ASROCK Fatal1ty Z97 Specifications

General

Chipset	Intel Z97
Form Factor	ATX
Memory Slots	4 x 240-pin
Max Memory	32GB
Memory Standard	DDR3
CPU Socket Type	LGA 1150
Audio	Realtek ALC1150
LAN	Intel I218V
Memory Speed	1600/1333
PCI Express 3.0 x16	2 x PCI Express 3.0 x16
PCI Express 2.0 x1	2 x PCI Express 2.0 x1
SATA 6Gb/s	6 x SATA 6Gb/s
M.2 Slot	1 x M.2
USB 3.0 Ports	6 x USB 3.0
USB 2.0 Ports	8 x USB 2.0
RAID Support	RAID 0, RAID 1, RAID 5, RAID 10
BIOS	64Mb AMI UEFI Legal BIOS
Multi-GPU Support	NVIDIA Quad SLI, AMD CrossFireX
SATA Express	1 x SATA Express
