Fatal1ty Z97 Professional Series

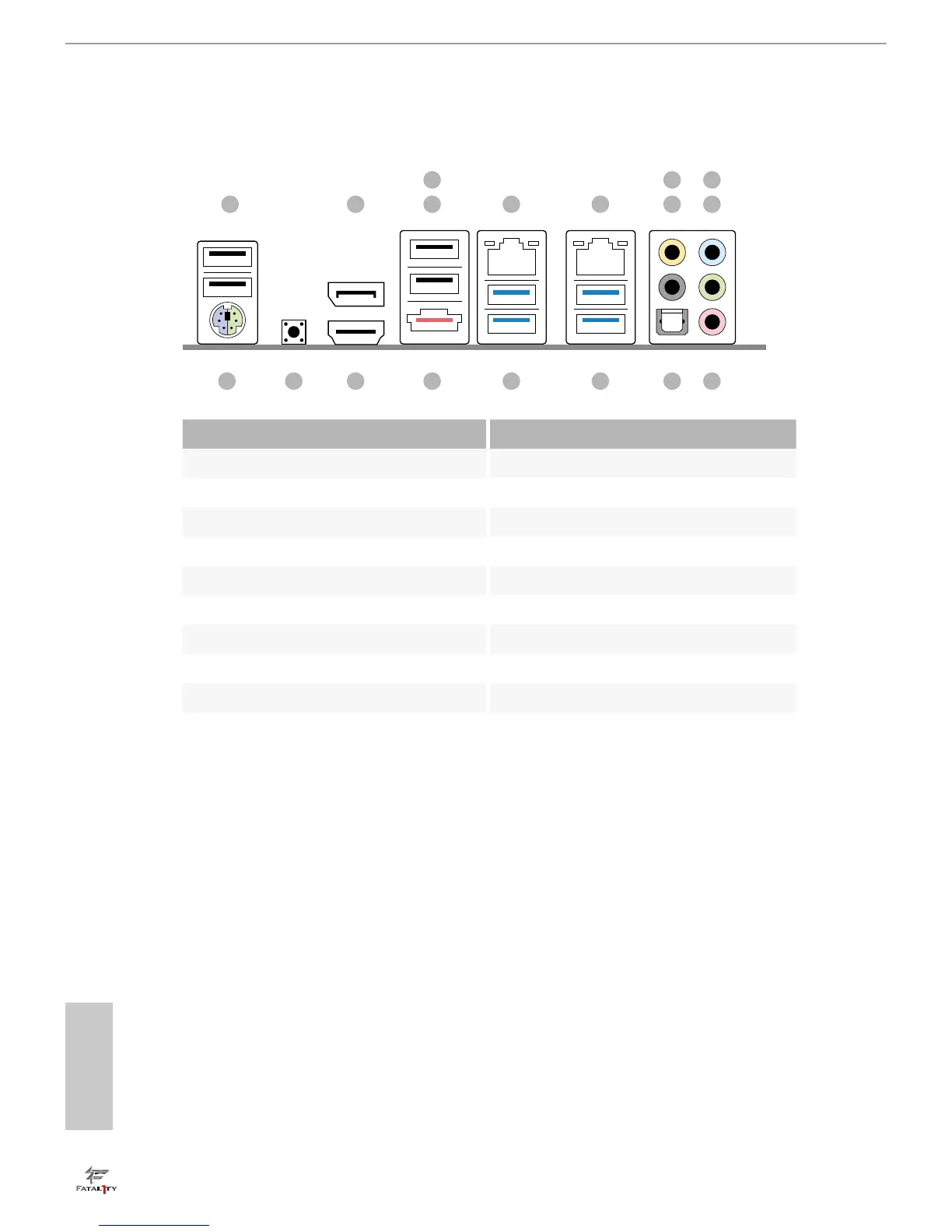

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_01) 10 Front Speaker (Lime)**
2 DisplayPort 1.2 11 Microphone (Pink)
3 Fatal1ty Mouse Port (USB2) 12 Optical SPDIF Out Port
4 USB 2.0 Port (USB3) 13 USB 3.0 Ports (USB3_23)
5 LAN RJ-45 Port (Intel® I218V)* 14 USB 3.0 Ports (USB3_01)
6 LAN RJ-45 Port (Qualcomm® 15 eSATA Connector***
Atheros® Killer
TM
E2200 Series)* 16 HDMI Port
7 Central / Bass (Orange) 17 Clear CMOS Switch
8 Rear Speaker (Black) 18 PS/2 Mouse/Keyboard Port
9 Line In (Light Blue)
