ASROCK H110M Combo-G User Manual

1
English
H110M Combo-G
Intel
H110
DDR3_B1 (64 bit, 240-pin module)
DDR4_B1 (64 bit, 288-pin module)
CMOS
Battery
ATXPWR1
Top:
RJ-45
USB 2.0
T: USB7
B: USB8
CLRCMOS1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB1_2
COM1
1
1
H110M Combo-G
CHA_FAN2
RoHS
10
12
15
19
2
CPU_FAN1
4
5
9
1
BIOS
ROM
HDMI1
PCIE1
PCI Express 3.0
TPMS1
1
1
USB3_1_2
SATA3 _0 S ATA3_2
SATA3 _1 S ATA3_3
USB 2.0
T: USB5
B: USB6
Top:
LINE I N
Cent er:
FRON T
Bott om:
MIC IN
1
ATX 12V1
USB 3.0
T: USB3
B: USB4
PS2
Keyboard
/Mouse
SPK_PLED
1
PCIE2
Front USB 3.0
11
13
14
16
21
Super
I/O
Audio
CODEC
VGA1
DVI1
DDR3_A1 (64 bit, 240-pin module)
DDR4_A1 (64 bit, 288-pin module)
CHA_ FAN1
SPEAKER
PLED
C 1I
PCIE3
1
1
HD_AUDIO1
3
6
8
1718
20
1
USB9_10
7

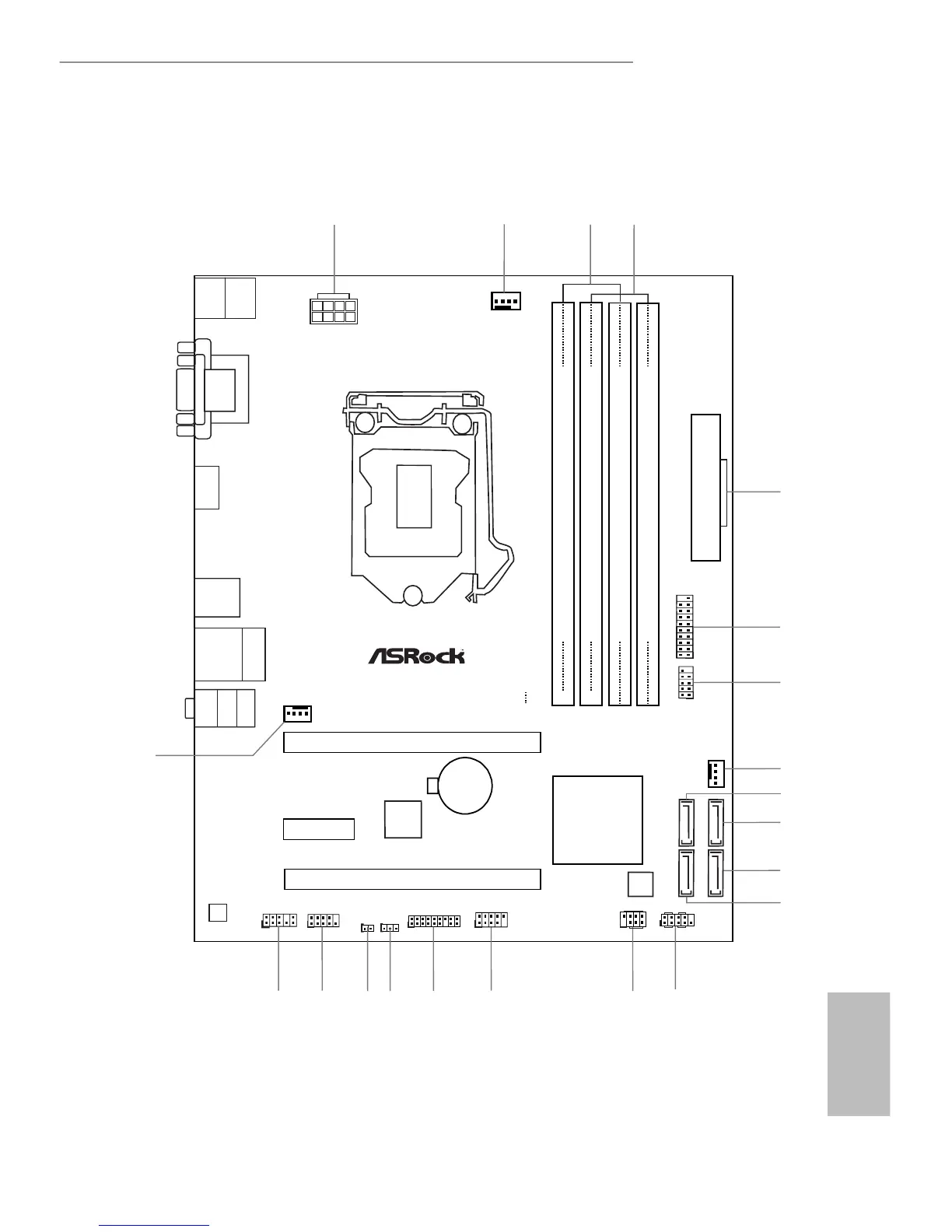

Motherboard Layout

ASROCK H110M Combo-G Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM, DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
PCI Express x1 (Gen 2.x) slots	1
Supported storage drive interfaces	SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Celeron, Intel Pentium
Sustainability certificates	RoHS
Cables included	SATA
Bundled software	Software - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI - ASRock EZ Mode - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Easy Driver Installer
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
On-board graphics card	No

Weight and Dimensions

Width	244 mm
