H110TM-ITX
2.7 M.2 WiFi/BT Module Installation Guide
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key
E) supports type 2230 WiFi/BT module.
* e M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module

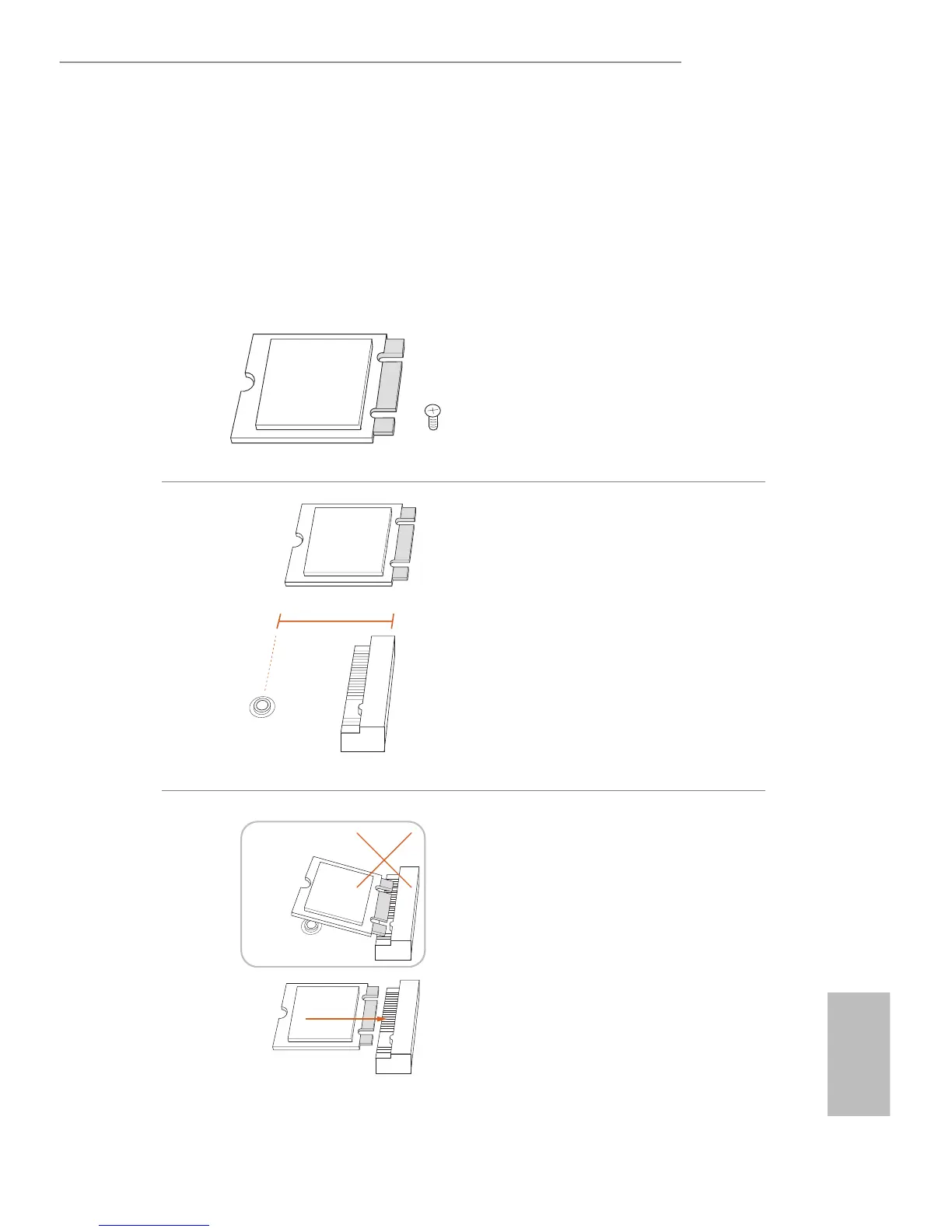

Step 1
Prepare a type 2230 WiFi/BT module
and the screw.
A
Module Type: Type2230
PCB Length: 3cm
Step 2
Find the nut location to be used.
A
Step 3
Align and gently insert the WiFi/BT
module into the M.2 slot. Please be
aware that the module only ts in one
orientation.
