89
H610M-IT X/ac
Português

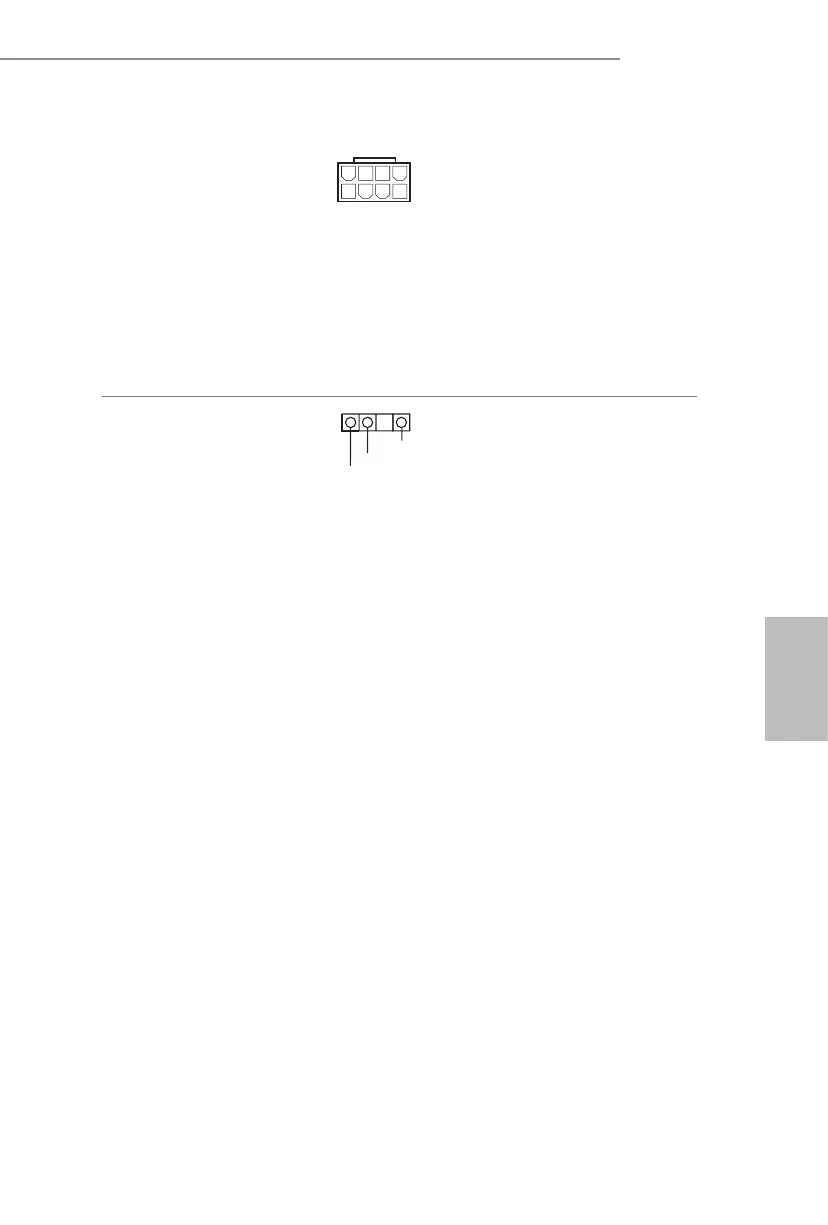

Conector de alimentação
de 12V ATX
(ATX12V1 de 8 pinos)
(ver p.1, N.º 2)
4
1
8 5
Esta placa-mãe inclui um conector
de alimentação de 12V ATX de
8 pinos. Para utilizar uma fonte
de alimentação ATX de 4 pinos,
introduza-a no Pino 1 e Pino 5.
*Aviso: Certique-se que o cabo
de força conectado é para o CPU
e não para a placa gráca. Não
ligue o cabo de força PCIe a este
conector.
Plataforma de LED
Ajustável
(ADDR_LED1 de 3 pinos)
(ver p.1, N.º 5)
VOUT
DO_ADDR
GND
1
Esta plataforma é usada para
conectar caboi de extensão
Ajustável
de LED que permite
aos usuários escolher entre vários
efeitos de iluminação de LED.
Atenção: Nunca instale o cabo
de LED Ajustável na orientação
errada, caso contrário o cabo
pode ser danicado.
*Consulte a página 28 para obter
mais informações sobre esta
plataforma.
