12

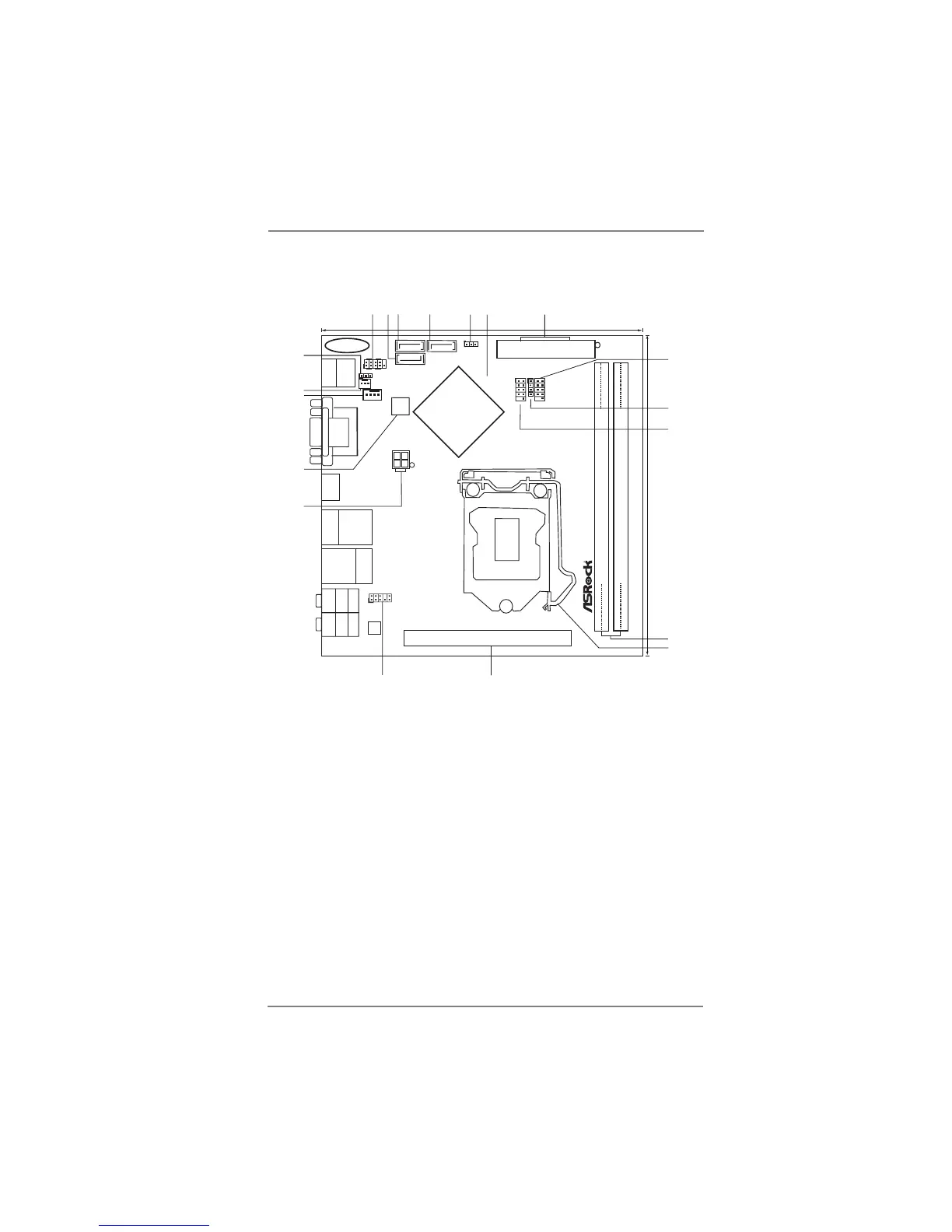

1.3 Motherboard Layout
1 System Panel Header (PANEL1, White) 12 1155-Pin CPU Socket
2 SATA2 Connector (SATA_1 (PORT 1), Blue) 13 PCI Express 2.0 x16 Slot (PCIE1, Blue)
3 SATA2 Connector (SATA_0 (PORT 0), Blue) 14 Front Panel Audio Header
4 SATA2 Connector (SATA_2 (PORT 4), Blue) (HD_AUDIO1, White)
5 Clear CMOS Jumper (CLRCMOS1) 15 ATX 12V Power Connector (ATX12V1)
6 Intel H61 Chipset 16 32Mb SPI Flash
7 ATX Power Connector (ATXPWR1) 17 CPU Fan Connector (CPU_FAN1)
8 USB 2.0 Header (USB8_9, Blue) 18 Chassis Fan Connector (CHA_FAN1)
9 Consumer Infrared Module Header (CIR1) 19 Power LED Header (PLED1)
10 USB 2.0 Header (USB6_7, Blue)
11 2 x 240-pin DDR3 DIMM Slots
(Dual Channel: DDR3_A1, DDR3_B1, Blue)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
Intel
H61
H61M-ITX
PCIE1
AUDIO
CODEC
32Mb
BIOS
17.0cm (6.7 in)
17.0cm (6.7 in)
ATXPWR1
ATX12V1
CMOS
Battery
USB8_9
1
1
USB6_7
HDLED RESET
PLED PWRBTN
PANEL1
CLRCMOS1
1
PLED1
1
1
CIR1
1
CHA_FAN1
CPU_FAN1
1
HD_AUDIO1
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Top:
RJ-45
USB 3.0
T: USB4
B: USB5
VGA1
DVI_CON1
HDMI1
USB 2.0
T: U SB 0
B: USB1
PS2
Keyboard
HDMI 1.4a USB 3.0 RoHS
Designed in Taipei
1
2
3
4
5
6
11
12
10
7
8
9
14
13
15
16
17
18
SATA_1 (PORT 1)
ESATA1
USB 2.0
T: U SB 2
B: USB3
SATA_0 (PORT 0) SATA_2(PORT 4)
Gigabit LAN
X
Fast USB
DDR3
19
ErP/EuP Ready
