ASROCK H61M-VS3 User Manual

15

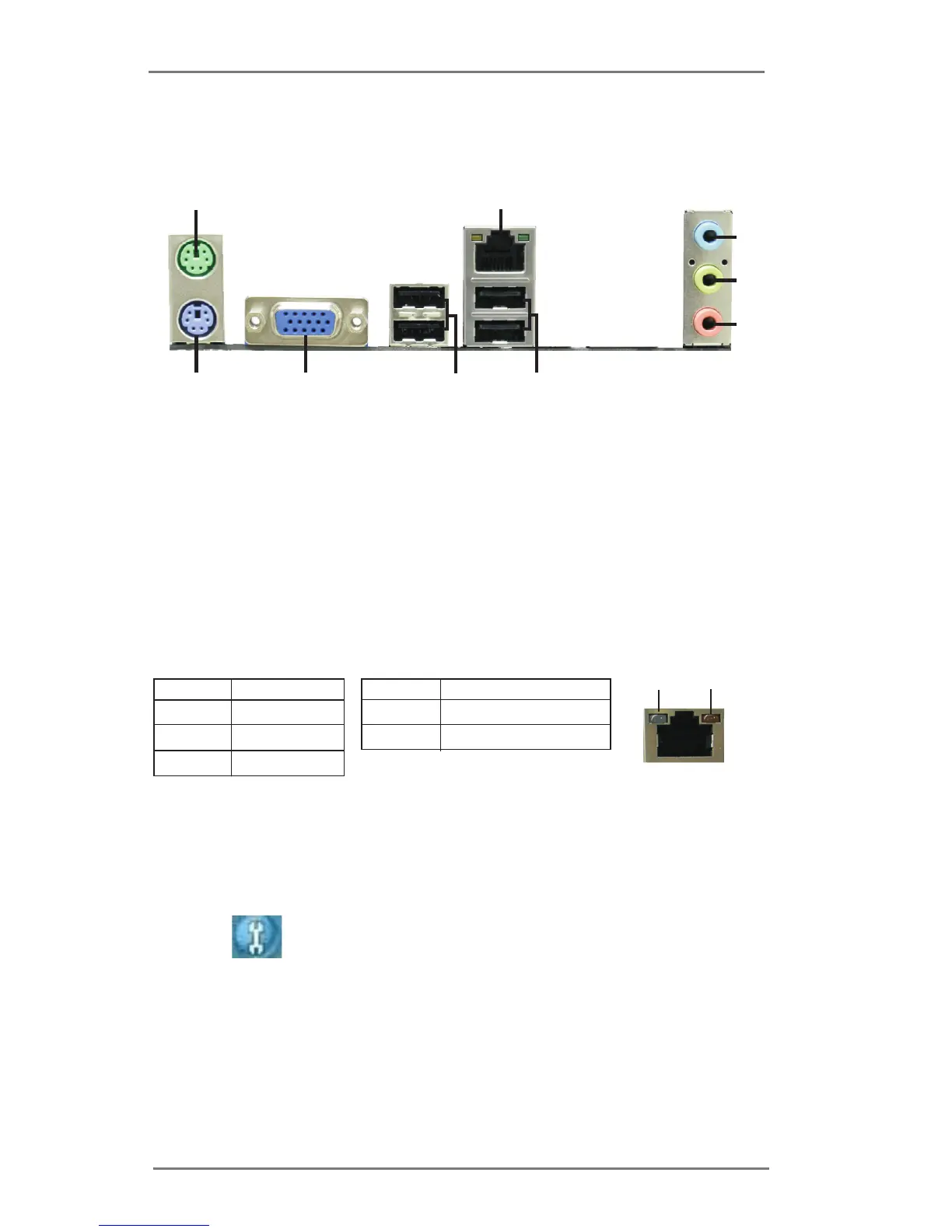

1.5 I/O Panel (H61M-VS3)
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB23)
* 2 LAN RJ-45 Port 7 USB 2.0 Ports (USB01)
3 Line In (Light Blue) 8 VGA Port
** 4 Front Speaker (Lime) 9 PS/2 Keyboard Port (Purple)
5 Microphone (Pink)
1
2
5
3
6
7
8
9
4
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows
®
XP:
After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows
®
8 / 7 / Vista
TM
:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity On 100Mbps connection
On Link
ACT/LINK
LED
SPEED
LED
LAN Port

ASROCK H61M-VS3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Maximum Memory	16GB
Storage Interface	4 x SATA 3Gb/s
LAN	Realtek RTL8111E Gigabit LAN
Memory Standard	DDR3 1600/1333/1066
Audio	Realtek ALC662 5.1-Channel HD Audio Codec
Memory Slots	2 x DDR3
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x D-Sub (VGA)
