ASROCK H61M-VS3 User Manual

17

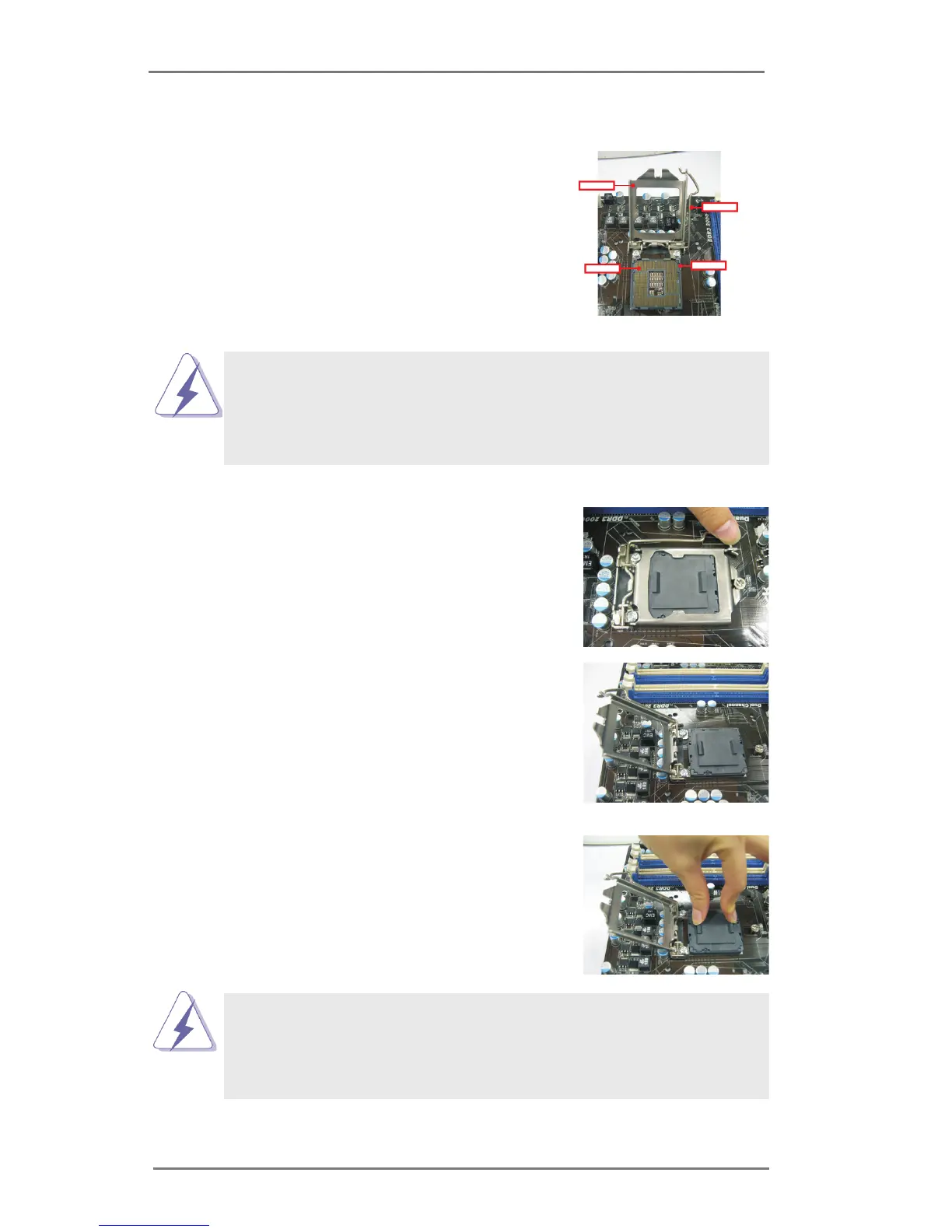

2.3 CPU Installation
For the installation of Intel 1155-Pin CPU,
please follow the steps below.
Before you insert the 1155-Pin CPU into the socket, please check if the
CPU surface is unclean or if there is any bent pin on the socket. Do not
force to insert the CPU into the socket if above situation is found. Other-
wise, the CPU will be seriously damaged.
Step 1. Open the socket:
Step 1-1. Disengaging the lever by depressing
down and out on the hook to clear
retention tab.
Step 1-2. Rotate the load lever to fully open po-
sition at approximately 135 degrees.
Step 1-3. Rotate the load plate to fully open po-
sition at approximately 100 degrees.
Step 2. Remove PnP Cap (Pick and Place Cap).
1. It is recommended to use the cap tab to handle and avoid kicking
off the PnP cap.
2. This cap must be placed if returning the motherboard for after
service.
1155-Pin Socket Overview
Contact Array
Socket Bo dy
Load Le ve r
Load Pl at e

ASROCK H61M-VS3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Maximum Memory	16GB
Storage Interface	4 x SATA 3Gb/s
LAN	Realtek RTL8111E Gigabit LAN
Memory Standard	DDR3 1600/1333/1066
Audio	Realtek ALC662 5.1-Channel HD Audio Codec
Memory Slots	2 x DDR3
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x D-Sub (VGA)
