ASROCK H61MV-ITX User Manual

33
Caution
1. Without SATA 15-pin power connector interface, the SATA / SATA2 Hot Plug
cannot be processed.
2. Even some SATA / SATA2 HDDs provide both SATA 15-pin power connector and
IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin
conventional power connector interface is denitely not able to support Hot Plug
and will cause the HDD damage and data loss.
SATA 7-pin
connector
1x4-pin conventional
power connector (White)
connect to power supply

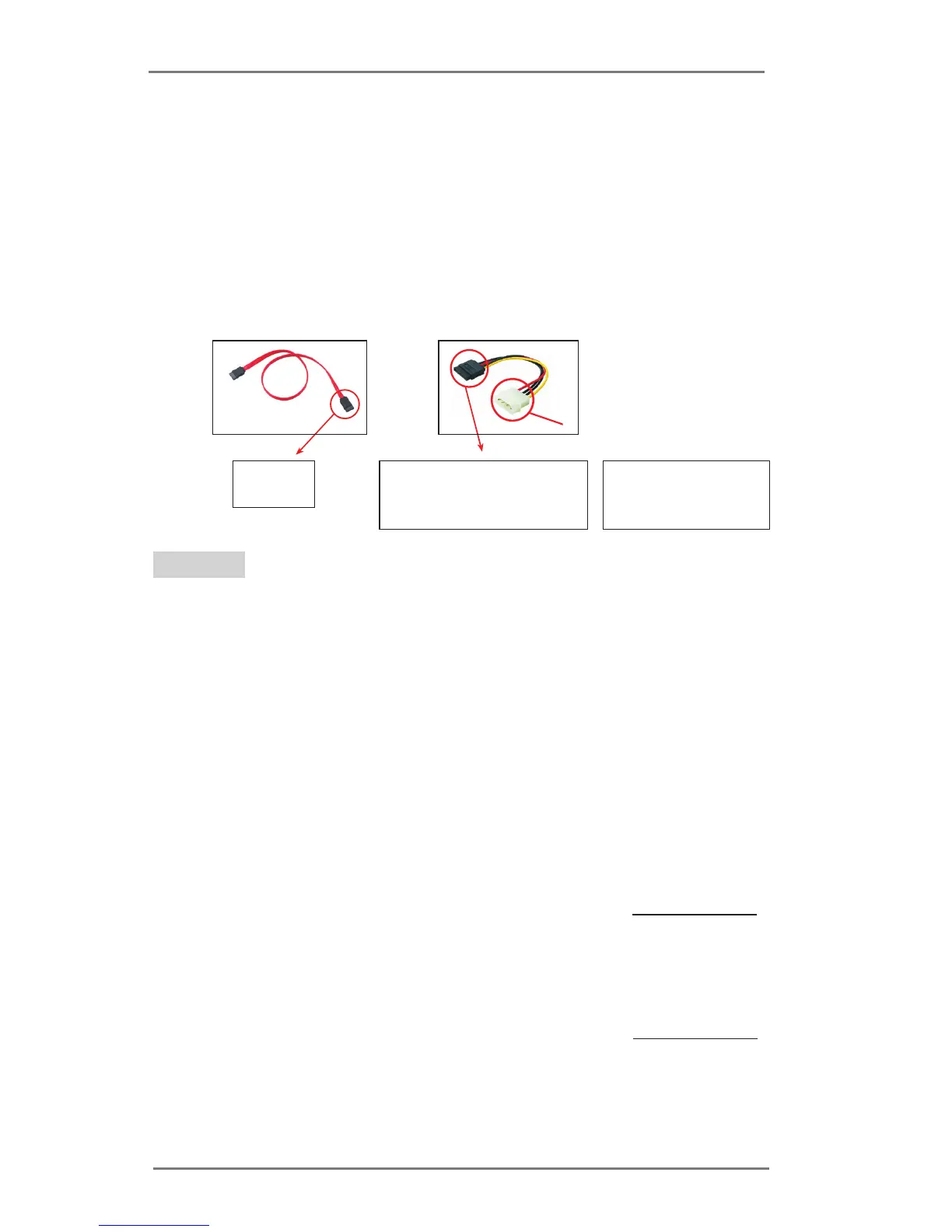

2.13 SATA / SATA2 HDD Hot Plug Feature and Operation Guide
This motherboard supports Hot Plug feature for SATA / SATA2 HDD in AHCI mode.
Please read below operation guide of Hot Plug feature carefully. Before you process
the SATA / SATA2 HDD Hot Plug, please check below cable accessories from the
motherboard gift box pack.
A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
The SATA 15-pin power
connector (Black) connect
to SATA / SATA2 HDD
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which supports
SATA / SATA2 HDD Hot Plug.
* The SATA / SATA2 Hot Plug feature might not be supported by the chipset
because of its limitation, the SATA / SATA2 Hot Plug support information of our
motherboard is indicated in the product spec on our website: www.asrock.com
2. Make sure your SATA / SATA2 HDD can support Hot Plug function from your
dealer or HDD user manual. The SATA / SATA2 HDD, which cannot support Hot
Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATA2 driver is installed into system properly. The
latest SATA / SATA2 driver is available on our support website: www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.
A. SATA data cable (Red) B. SATA power cable

ASROCK H61MV-ITX Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	8GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx
Number of SATA connectors	-
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	mini ITX
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
PCI Express slots version	3.0
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	32 Mbit

Weight and Dimensions

Width	- mm
