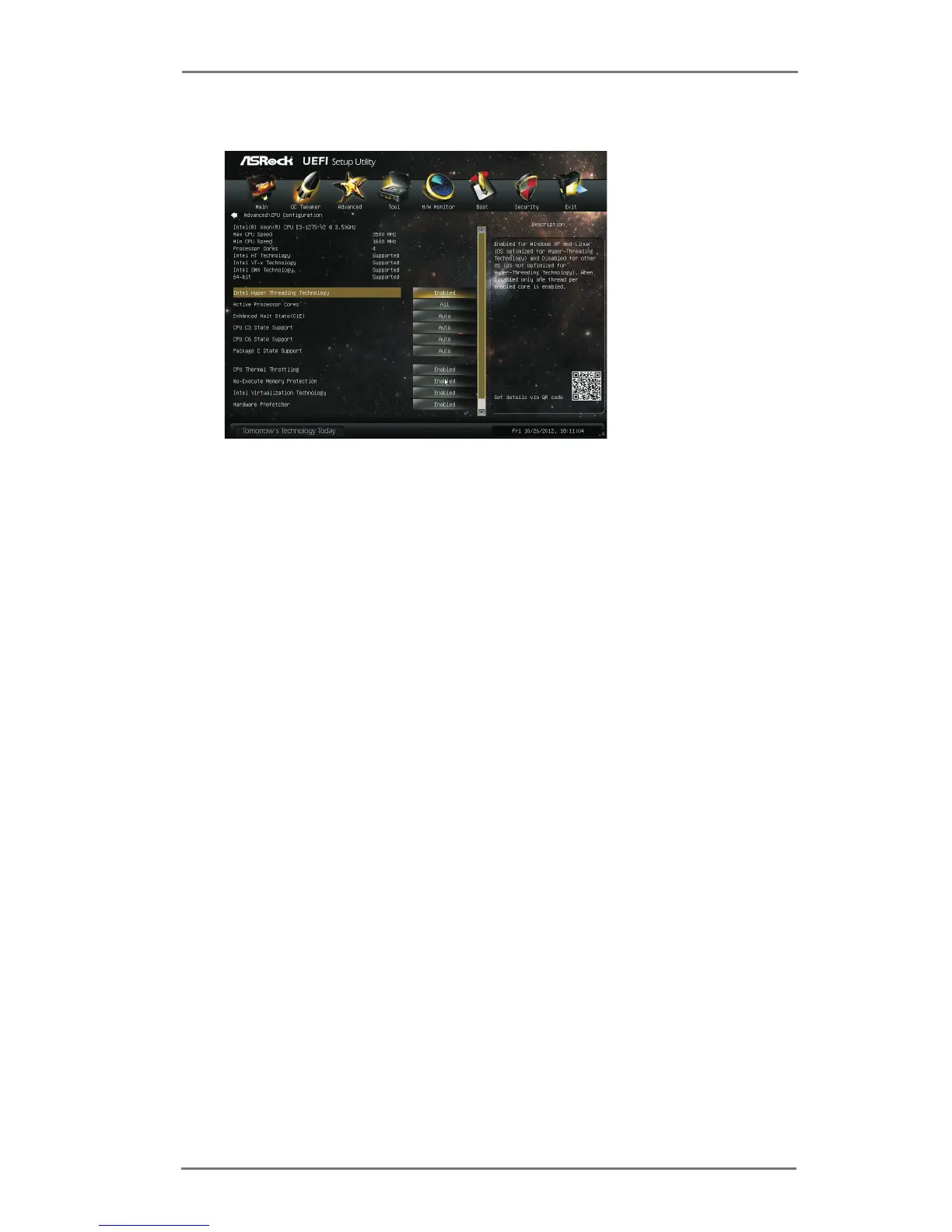

3.4.1 CPU Conguration
Intel Hyper Threading Technology
To enable this feature, a computer system with an Intel processor that sup-
ports Hyper-Threading technology and an operating system that includes
optimization for this technology, such as Microsoft
®
Windows
®
XP / Vista
TM
/
7 / 8 is required. Set to [Enabled] if using Microsoft
®
Windows
®
XP, Vista
TM
,
7, 8, or Linux kernel version 2.4.18 or higher. This option will be hidden if
the installed CPU does not support Hyper-Threading technology.
Active Processor Cores
Use this item to select the number of cores to enable in each processor
package. The default value is [All].
Enhance Halt State (C1E)
All processors support the Halt State (C1). The C1 state is supported
through the native processor instructions HLT and MWAIT and requires no
hardware support from the chipset. In the C1 power state, the processor
maintains the context of the system caches.
CPU C3 State Support
Use this to enable or disable CPU C3 (ACPI C2) report to OS.
CPU C6 State Support
Use this to enable or disable CPU C6 (ACPI C3) report to OS.
Package C State Support
Selected option will program into C State package limit register. The
default value is [Auto].
CPU Thermal Throttling
You may select [Enabled] to enable CPU internal thermal control
mechanism to keep the CPU from overheating.
No-Execute Memory Protection
No-Execution (NX) Memory Protection Technology is an enhancement

ASROCK H61MV-ITX Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	8GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx
Number of SATA connectors	-
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	mini ITX
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
PCI Express slots version	3.0
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	32 Mbit
