H81M BTC

English

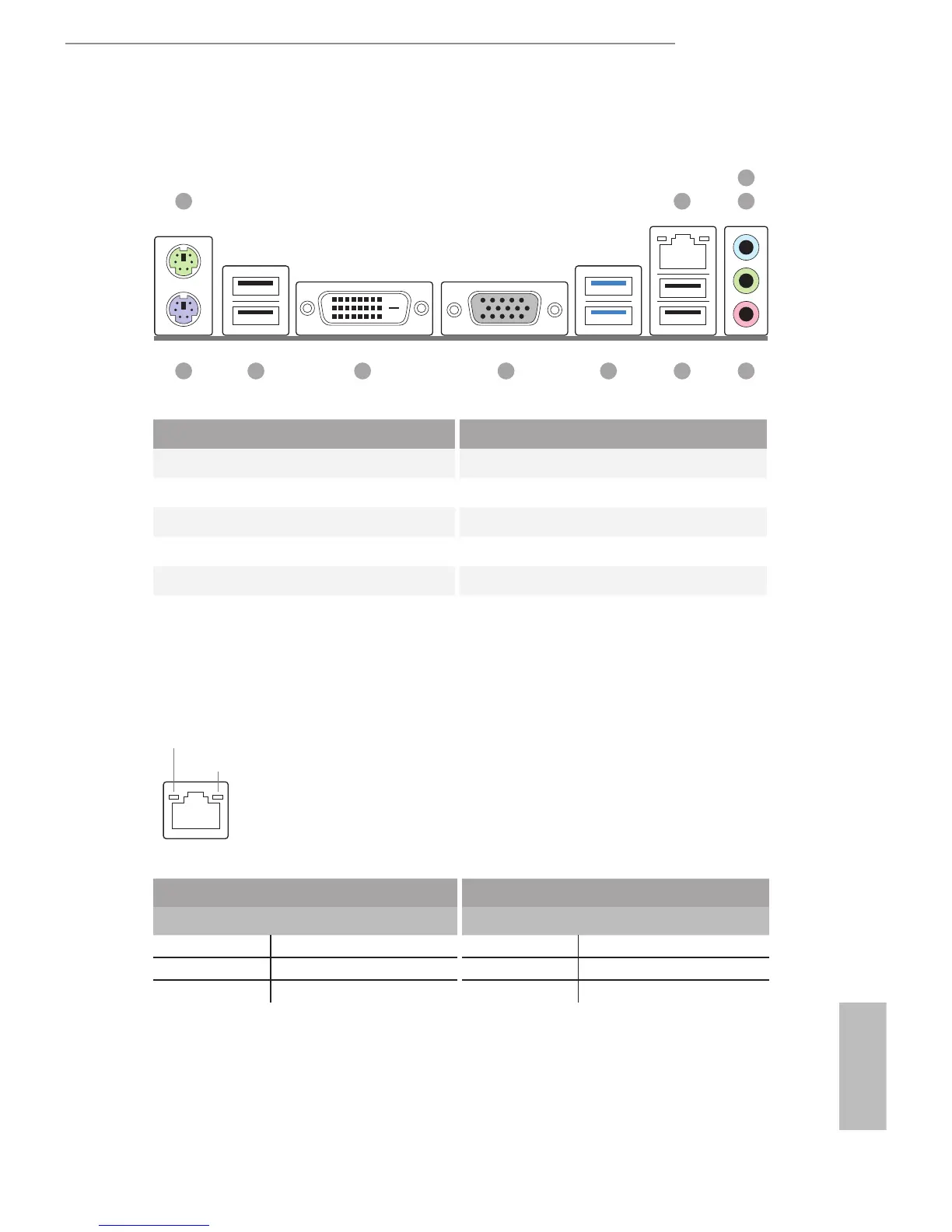

1.5 I/O Panel

No. Description No. Description

1 PS/2 Mouse Port 7 USB 3.0 Ports (USB3_01)

2 LAN RJ-45 Port* 8 D-Sub Port

3 Line In (Light Blue) 9 DVI-D Port

4 Front Speaker (Lime) 10 USB 2.0 Ports (USB01)

5 Microphone (Pink) 11 PS/2 Keyboard Port

6 USB 2.0 Ports (USB23)

1 2 4

567891011

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port
