ASROCK H81M BTC User Manual

70
English

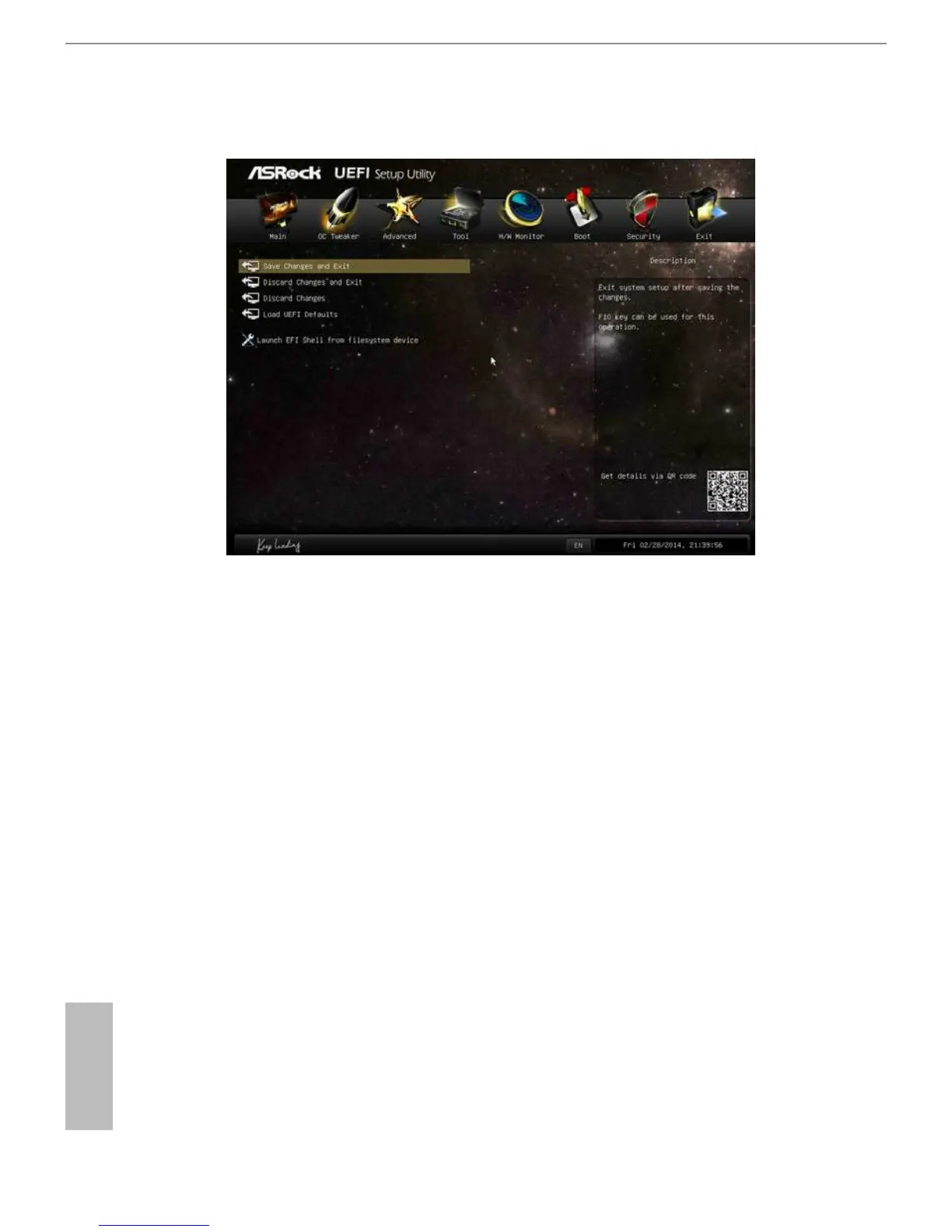

4.9 Exit Screen
Save Changes and Exit
When you select this option the following message, “Save conguration changes
and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP
UTILITY.
Discard Changes and Exit
When you select this option the following message, “Discard changes and exit
setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving
any changes.
Discard Changes
When you select this option the following message, “Discard changes?” will pop
out. Select [OK] to discard all changes.
Load UEFI Defaults
Load UEFI default values for all options. e F9 key can be used for this operation.
Launch EFI Shell from lesystem device
Copy shellx64.e to the root directory to launch EFI Shell.

ASROCK H81M BTC Specifications

General

Form Factor	Micro ATX
Socket	LGA 1150
Chipset	Intel H81
Memory Slots	2
Maximum Memory	16 GB
PCIe 3.0 x16 Slots	1
PCIe 2.0 x1 Slots	2
PCI Express x16	1
PCI Express x1	2
SATA 6Gb/s	2
SATA 3Gb/s	2
USB 3.0	2
USB 2.0	6
Audio	Realtek ALC662
RAID Support	No
Multi-GPU Support	No
Memory Standard	DDR3
LAN	Realtek RTL8111
