2.1 Installing the CPU

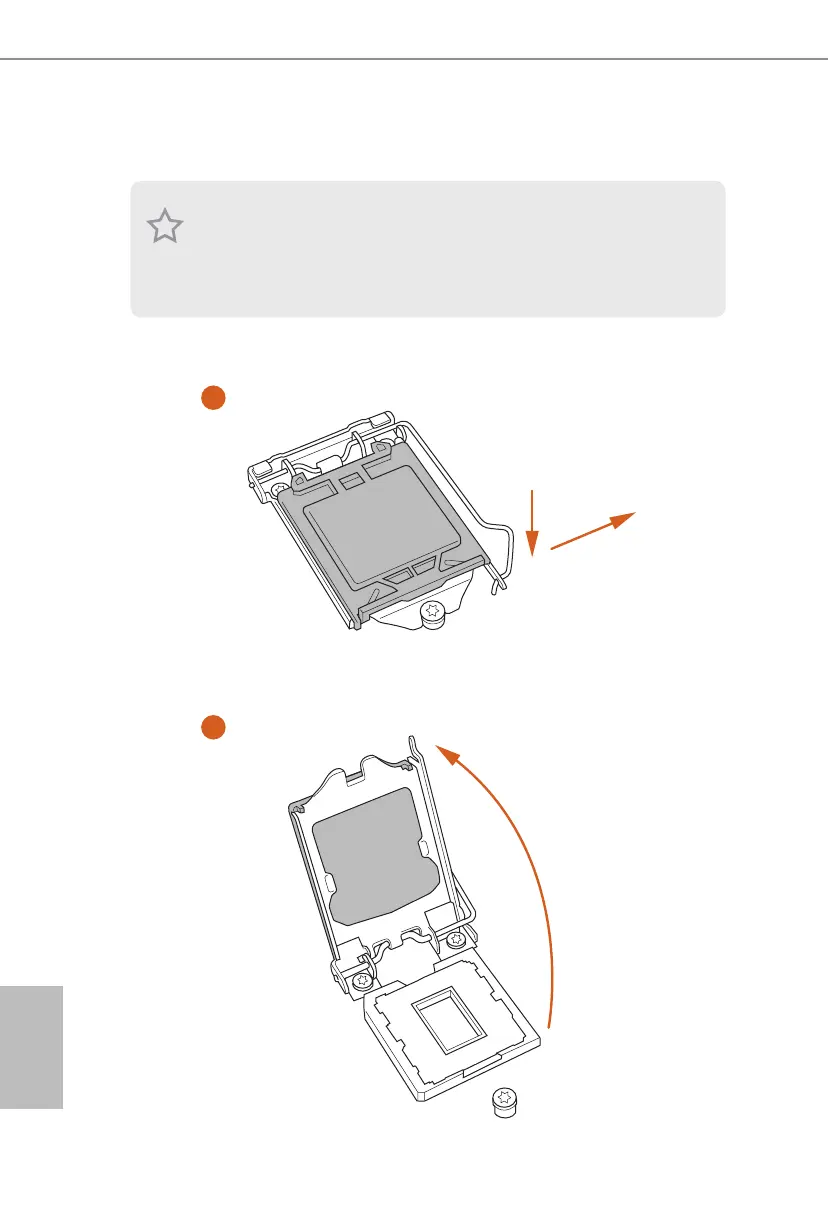

1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on
the socket, if the CPU surface is unclean, or if there are any bent pins in the socket.
Do not force to insert the CPU into the socket if above situation is found. Otherwise,
the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
2
1
A
B

ASROCK H81M-VG4 R4.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Maximum Memory	16GB
Storage Interface	2 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s
Audio	Realtek ALC662 Audio Codec
Memory Standard	DDR3 1600/1333
Expansion Slots	1 x PCI Express 2.0 x16, 1 x PCI Express 2.0 x1
LAN	Realtek RTL8111GR
Video Outputs	1 x D-Sub (VGA)
Memory Slots	2 x DIMM
